Configuring a Broadcast Live Profile

To configure a broadcast Live Profile from the Unit Panel or from the Web Interface, see the tabs below.

Unit Panel
  1. From the Home menu, tap
    Settings icon
    >
    Profiles Live icon
    >
    Add button
    .
  2. Tap the Profile Name field and enter a new profile name.
  3. Tap
    Checkmark icon
    to confirm the new profile name.
  4. Tap the Application field and and choose between Bcast (SRT) or Bcast (SST).
  5. Tap the End-to-End Latency field to adjust the latency.
  6. Tap the Encoder Type field and choose between H.264/AVC and H.265/HEVC.
  7. (SST Live Profiles only) Tap the Bitrate Control field and choose between VBR and CBR.
  8. Tap the Capped Bitrate field to enter a new bitrate.
  9. In the Audio settings, tap the Channel Layout field and choose between: 1x Mono, 1x Stereo, 2x Mono, 2x Stereo, 4x Mono, 4x Stereo, 8x Mono, and No audio.
  10. Tap the Bitrate field to adjust bitrate.
  11. Tap

    Arrow Down icon
    and select ADVANCED+.

    Note

    Advanced parameters are only available if the Encoder Type is H.264.

  12. Tap the toggle button to enable I and P frames only.
  13. Tap the toggle button to enable Manual Resolution.
  14. If you enabled Manual Resolution, tap the Resolution field to display the resolution list, and select the resolution you want to apply.

    Note

    Only downscaling or same resolution are supported.

  15. Tap
    Save icon
    to save the new Broadcast Live Profile settings.
Web Interface
  1. In the sidebar, click Streaming > Live.
  2. Click the Add Profile button.

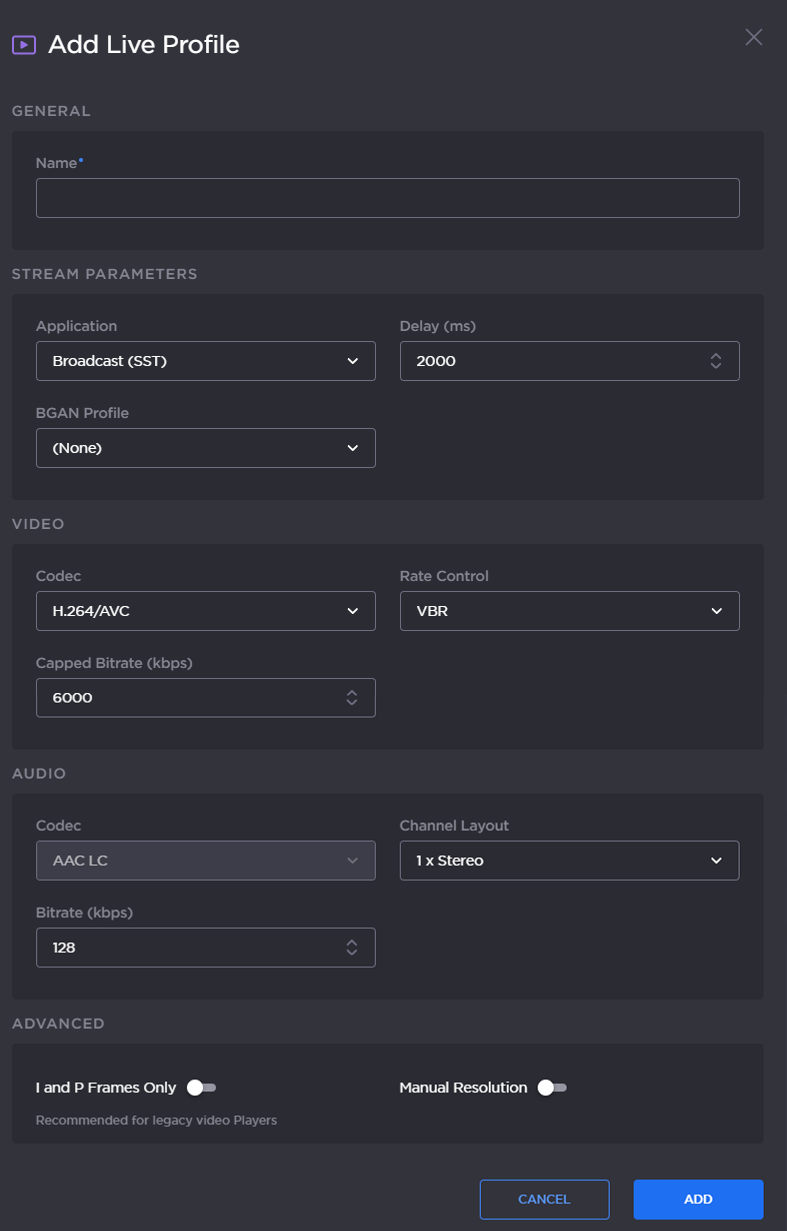

    The Add Live Profile dialog appears.
    Add Live Profile
  3. Enter a profile name in the Profile Name field.
  4. Fill in all parameters. For details on Broadcast Live Profile parameters, see Configuring Live Profiles

  5. Click the Add button.
