Selecting the Audio Source

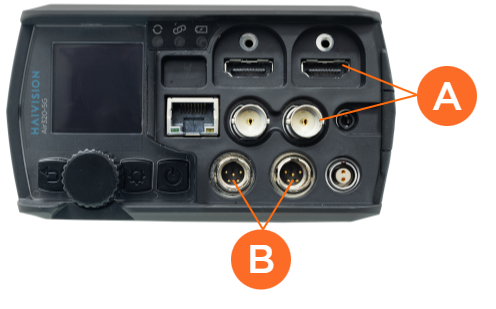

You can select amongst two options:

  • From Video – When using the SDI or HDMI inputs
    , the audio is embedded in the video source.
  • Analog (Balanced) – The analog audio inputs
    are used to connect to an analog audio source.



Unit Panel
  1. From the Home menu, use the wheel to select
    >
    > Audio source
    .
  2. Use the wheel to select a source.
    When Audio Source is set to Analog, the Audio Level field appears.
  3. Turn the wheel to select either
    or
    for the analog input level.
  4. Press the wheel to move the cursor.

Note

  • 0% is for audio muted.
  • 100% is for the max applicable gain.

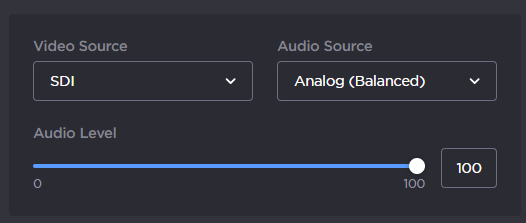

Web Interface
  1. From the dashboard, click
    .
  2. In the Audio Source field, select the audio source amongst 2 options:
    • From Video
    • Analog (Balanced)
  3. When the audio source is analog, move the Audio level cursor to adjust it.

    Note

    • 0% is for audio muted.
    • 100% is the max applicable gain.
