Starting a Record

To start a record:

1. Turn the wheel to select



   .
2. Press the wheel to enter the RECORD menu.
   When turning the wheel to the right, the RECORD menu displays additional information:









   Selected Record Profile




   Auto-forward(OFF/ON) Toggle Switch




   Selected Destination Profile


   • To select another Record profile:

     1. Turn the wheel to highlight the Record Profile (



        )
     2. Press the wheel and turn to select the required profile.
     3. Press the wheel to confirm the choice.

   • To modify the Auto-forward mode:

     1. Turn the wheel to highlight the Auto-forward field.

     2. Press the wheel to switch the toggle button and enable or disable Auto-forward.

   • To select another destination profile:

     1. Turn the wheel to highlight the destination profile (



        ).

     2. Press the wheel and turn to select the required profile.

     3. Press the wheel to confirm.

3. Turn the wheel to the left to make sure that



   is highlighted and press the wheel to start the record.
   The video preview appears on screen.









   Audio bars indicating audio levels




   Record duration

4. Turn the wheel to the left to display some indications about the recording:









   Remaining recording time possible on SD card




   Space used on SD




   Source Standard

   In case of a Record and simultaneous Forward, another screen appears when you click on the unit panel:









   Amount and percentage of data already forwarded (if option enabled)




   Network bitrate




   Record duration

To stop the record:

1. Turn the wheel to the right.
2. Use the wheel to select



   > Stop Record.

To stop the forward:

1. Turn the wheel twice to the right.
2. Use the wheel to select



   > Stop Forward.

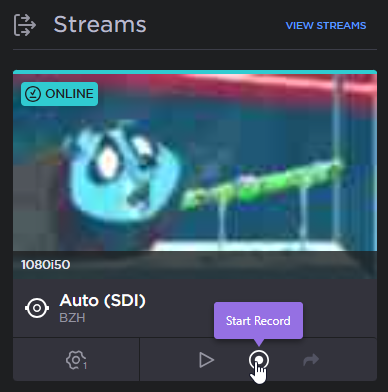

To start the Record:

1. On the Dashboard, in the Streams section, click the



   icon to check that the unit settings are configured and selected as required:


   Note

   If you enable the Auto-forward option, the video file is automatically forwarded during the record.
2. Click the



   icon to start the Record.




To stop the Record:

1. Click the



   icon > Stop.

To stop the Forward:

1. Click the



   icon > Stop.
