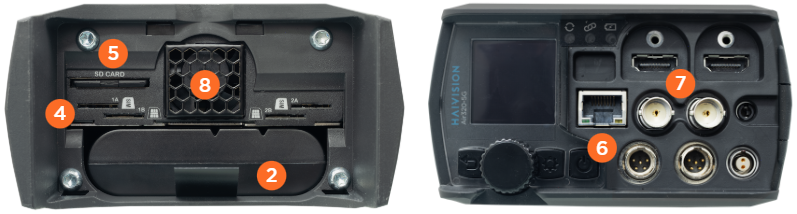

Follow the steps outlined below to install the unit. The labels in the subsequent image indicate the step numbers.
-

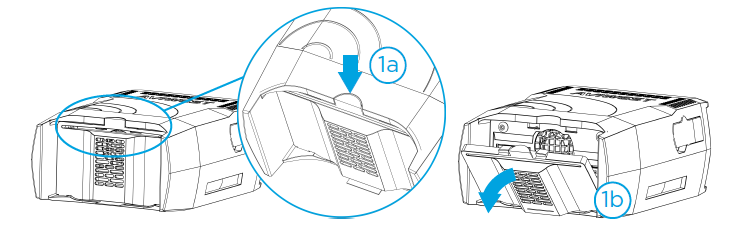

Remove the rear panel.
-
Press on top.
-
Remove the cover.
-
-
Install the battery onto the unit (if not already installed).
-
Connect the AC/DC adapter and power cable.
Note
To disconnect, pull the self-latching mechanism to release the connector.
-
Insert an SD card (if not already installed). It is recommended to use a FAT32 or exFAT formats and a class 10 SD card.
-
Insert a SIM card in a slot (not applicable for Air200).
Note
Slots 1A and 1B are coupled to Modem 1. While slots 2A and 2B are coupled to Modem 2.
-
For Ethernet transmission, connect the Ethernet cable. DHCP is the default operating mode.
-
Connect the video input cables (SDI or HDMI).
-
Ensure that the unit's ventilation grids are not obstructed.
