Managing Priorities of Network Links

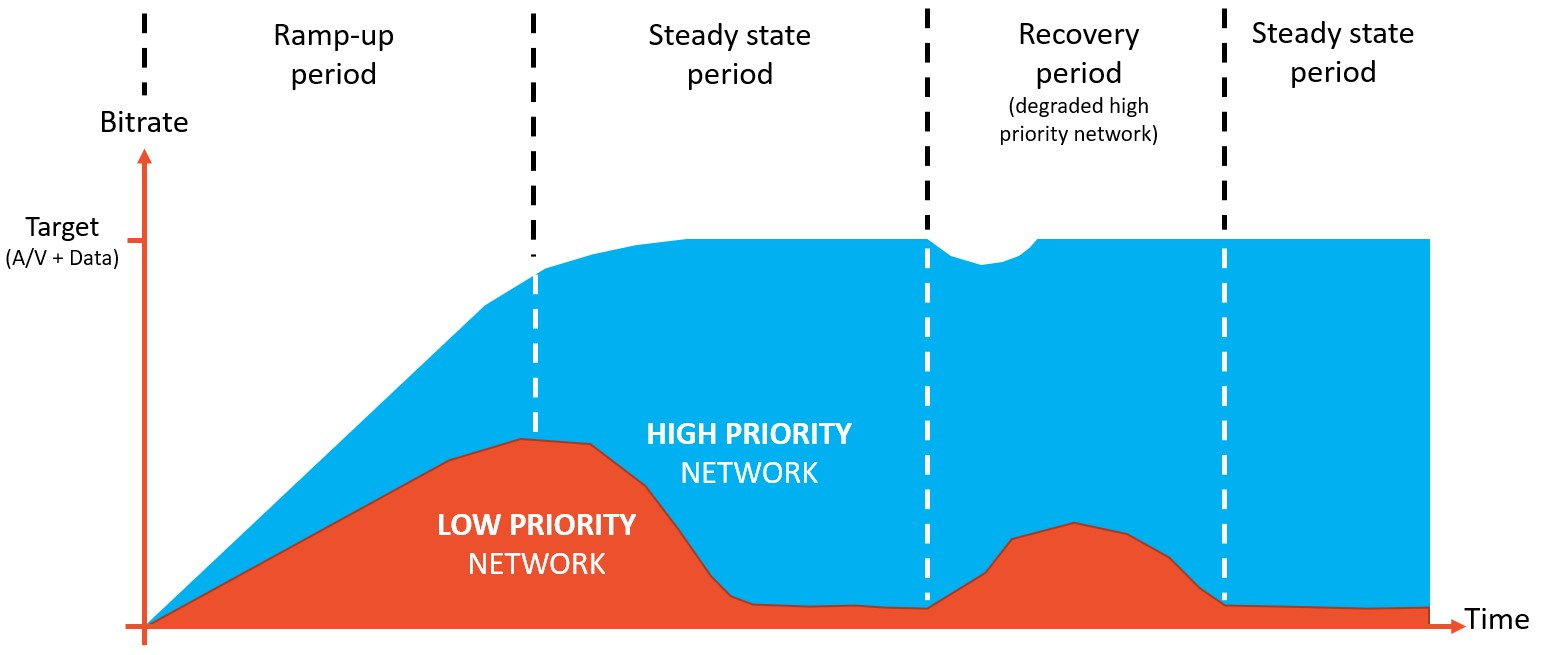

You can choose a priority level (High or Low) for each network link used for Live or Forward operations. These priorities are managed as shown in the diagram below:

For Live

• Both high and low priority links are used as long as the bitrate target set in the Live profile has not been reached.
• When the bitrate target is reached, high priority links are mainly used.

For Forward

• Both high and low priority links are used as long as the bitrate target is lower than 1Mbps.
• When the bitrate target is lower than 1Mbps, low priority links are mainly used.

By default, each network link is set as a high priority link. This setting can be changed, either from the unit panel or from the Web Interface, before starting an operation or while the operation is in progress:

• Unit panel: Select the priority level when configuring network links (see Configuring an Ethernet Interface).

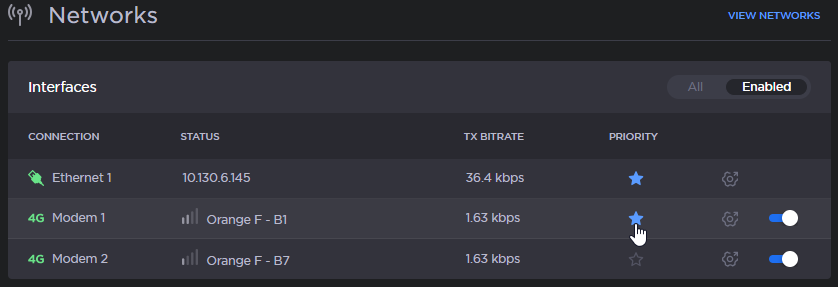

• Web interface: For each network link, click on the icon in the Priority column to select High (



  ) or Low (



  ) priority.
