Transmitters

Configuring the Time and Date

To configure the time and date from the Unit Panel or from the Web Interface, see the sections below.

Unit Panel

  1. From the Home menu, use the wheel to select  Settings icon > Device Settings icon > General > Date.

  2. (Optional) Enable the Use NTP toggle and enter an NTP Server address in the field below.

Tip

After entering the address of the NTP server you wish to use, click the Test button to ensure you can connect to it.

  1. Use the wheel to set the date and time and press Checkbox icon to confirm.

Note

The Date and Time format is set to: YYYY-MM-DD HH:MM.

Note

The device reboots after you change the NTP settings.

Web Interface

Set Date & Time manually

  1. In the sidebar, click Settings > System.

  2. Ensure the User NTP toggle is disabled.

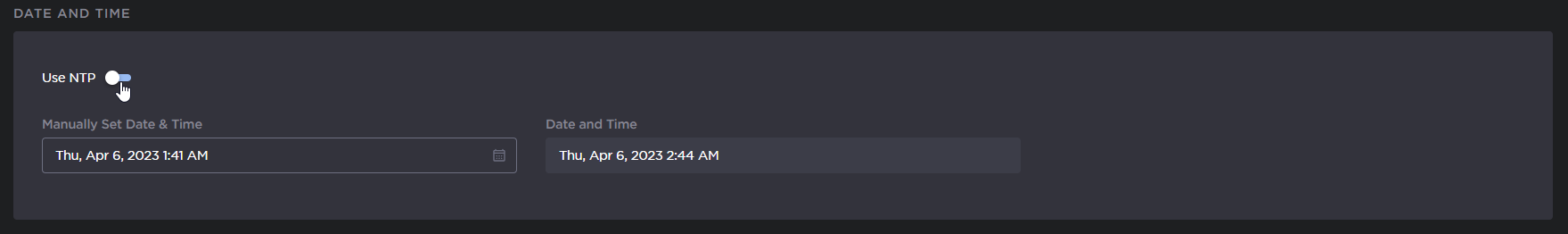

    Disable NTP
    Disable NTP
  3. Click within the Manually Set Date & Time field.
    A calendar and clock dialog appears for you to select the date and time:

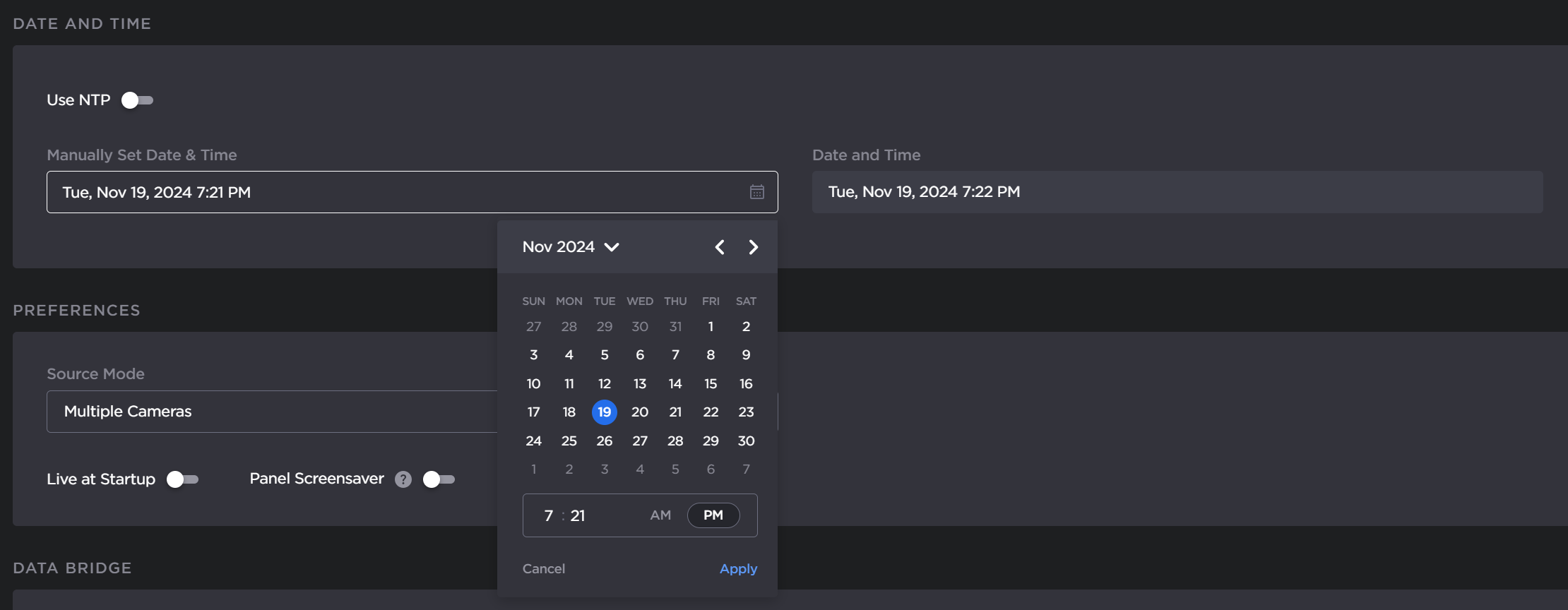

    Calendar and Clock
    Calendar and Clock
  4. Click Apply in the dialog.

  5. Click the Apply button.

Set Date & Time via NTP Server

  1. In the sidebar, click Settings > System.

  2. Click the Use NTP toggle button to enable NTP server.

  3. Enter a valid NTP Server address in the available field.

Tip

After entering the address of the NTP server you wish to use, click the Test button to ensure you can connect to it.

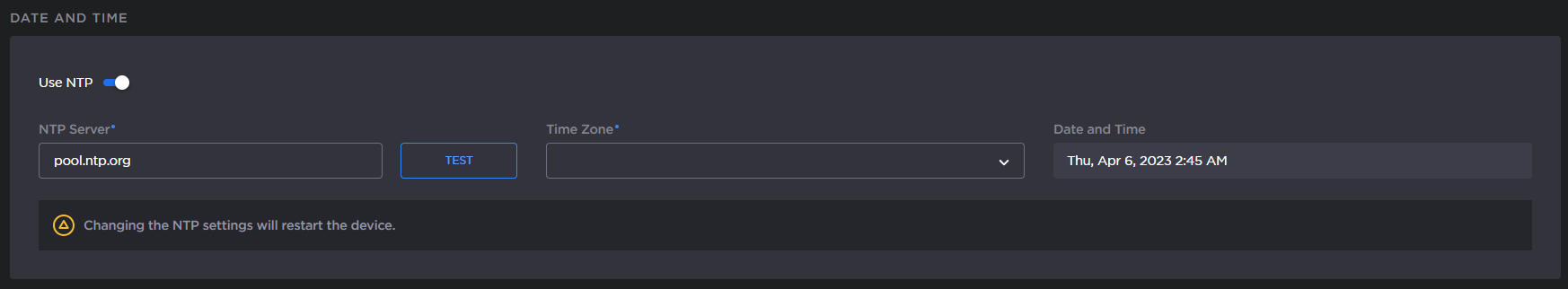

Enable NTP
Enable NTP
  1. Select the desired Time Zone from the dropdown list.

  2. Click the Apply button.

Note

The device reboots after you change the NTP settings.
