Configuring a BGAN Profile

By default, the unit does not contain a Broadband Global Area Network (BGAN) profile. You must create and configure a BGAN profile before selecting it in a Live profile or a Forward configuration. See (6.0-Air-Pro3-Rack3) Configuring Live Profiles and (6.0-Air-Pro3-Rack3) Configuring Forward Settings.

To configure a BGAN profile from the Unit panel or Web Interface, see the sections below.

Unit Panel

1. From the Home menu, use the wheel to select > > .

2. Fill in the settings:

   • Profile Name

   • Model: Hughes 9201, Hughes 9211, or Explorer 710

   • APN.

3. Enter a Username and a Password, if required.

4. Use the wheel to select a Mode: X-Stream, Background, HDR Full-Asymmetric, or HDR Full-Symmetric.

5. Press the wheel on to save the BGAN profile.

Web Interface

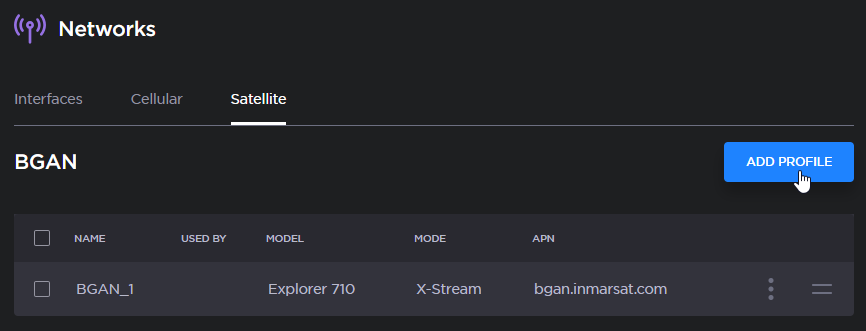

1. In the sidebar, click Network > Satellite > BGAN.

2. Click the Add Profile button.

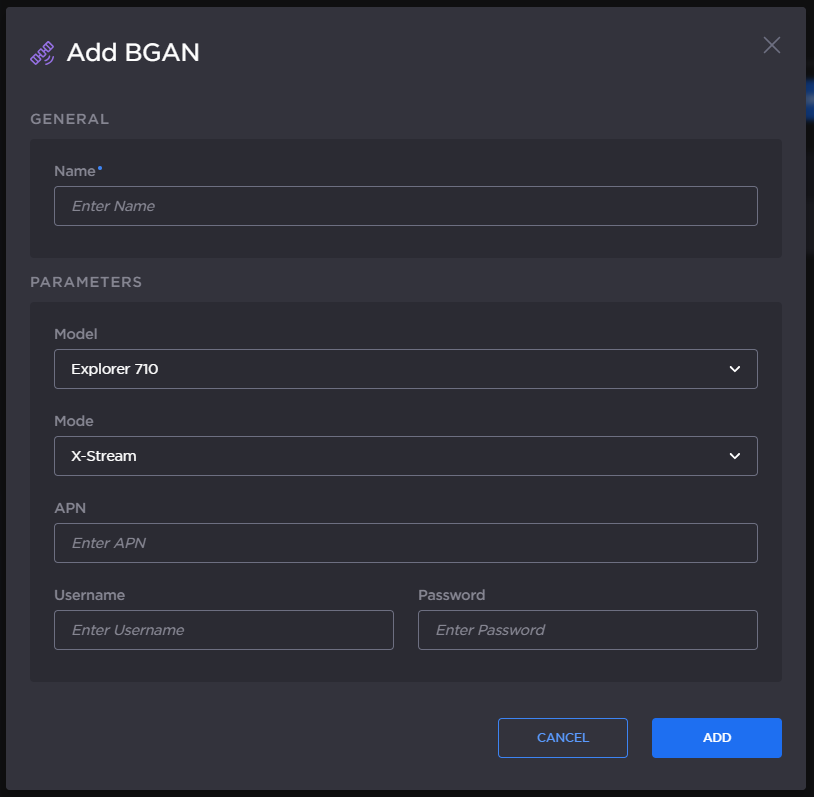

3. Fill in the settings: Profile Name, Model, and APN.

4. Enter a Username and a Password, if required.

5. Choose a Mode in the dropdown list.

6. Click the Add button.



The new BGAN profile is added to the Networks list.
