To connect a Quad CellLink to the unit:
-
On the Quad CellLink, remove the SIM card cover and insert the SIM cards into slots according to indications written on the cover.
Note
Ensure the SIM cards are already unlocked.
-
Replace the SIM card cover.
-

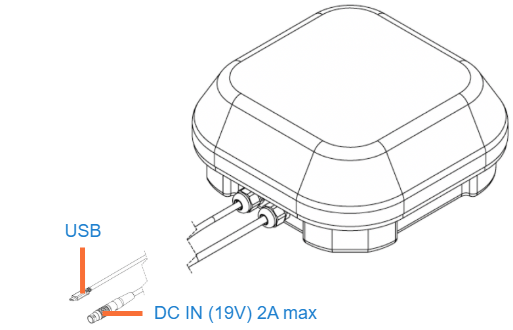

Connect the AC/DC adapter and the power cable.
-
Connect the USB cable to the unit.
Note
Choose a weather-protected area for this connection to avoid any damage due to ambient humidity or rain.
-
Open the transmitter Web Interface.

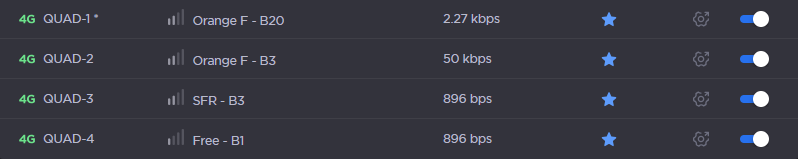

The Quad CellLink is automatically detected in the web interface:
-
QUAD-1 means modem #1 from Quad CellLink,
-
QUAD-2 means modem #2 from Quad CellLink, etc.
Note
You can connect up to two Quad CellLinks to the transmitter.
