Indicator Definition

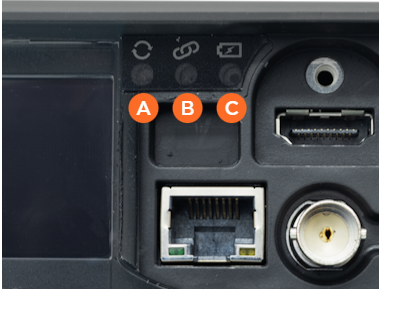

The front of the unit contains LED indicators to provide you with status information.


A

Activity icon
 Activity Indicator

StatusMeaning

Green
Fixed Green

The unit is starting.
Flashing green
 Flashing Green
Live, Record or Forward in progress.
Gray
Off
No Live, Record or Forward in progress.

B

Link icon
 Link Indicator

StatusMeaning
Green
Fixed Green
The unit is starting.
The unit is connected to a destination.
Gray
Off
The unit is not connected to a destination.

C

Battery icon
 Battery Indicator

StatusMeaning
Blue
Fixed Blue


The unit is powered by external source with a fully charged battery.
Green
Fixed Green


The unit is powered by external source and charging internal battery.
Yellow
Fixed Yellow


The unit is powered by external source without battery charge.
Gray
Off


The unit is operating on battery only.

Note

The unit charges only when turned off. Ensure that you turned it off before charging the battery.
