Updating the Firmware

Note

The firmware can be updated from Hub 360 or Manager (v3.3.0 and higher).

Unit Panel

  1. Download the firmware file from the Haivision Support Portal.

  2. Copy the .fw firmware file that you downloaded to an SD card or USB flash drive.

  3. Insert the SD card or connect the USB flash drive to the transmitter.

  4. From the Home menu, tap Settings icon >  Device Settings icon >  Firmware.

  5. A message displays information about the firmware version and asks for confirmation. Tap Yes and Confirm.

Web Interface

  1. Download the firmware file from the Haivision Support Portal.

  2. In the sidebar, click Settings.

  3. Click the Update tab.

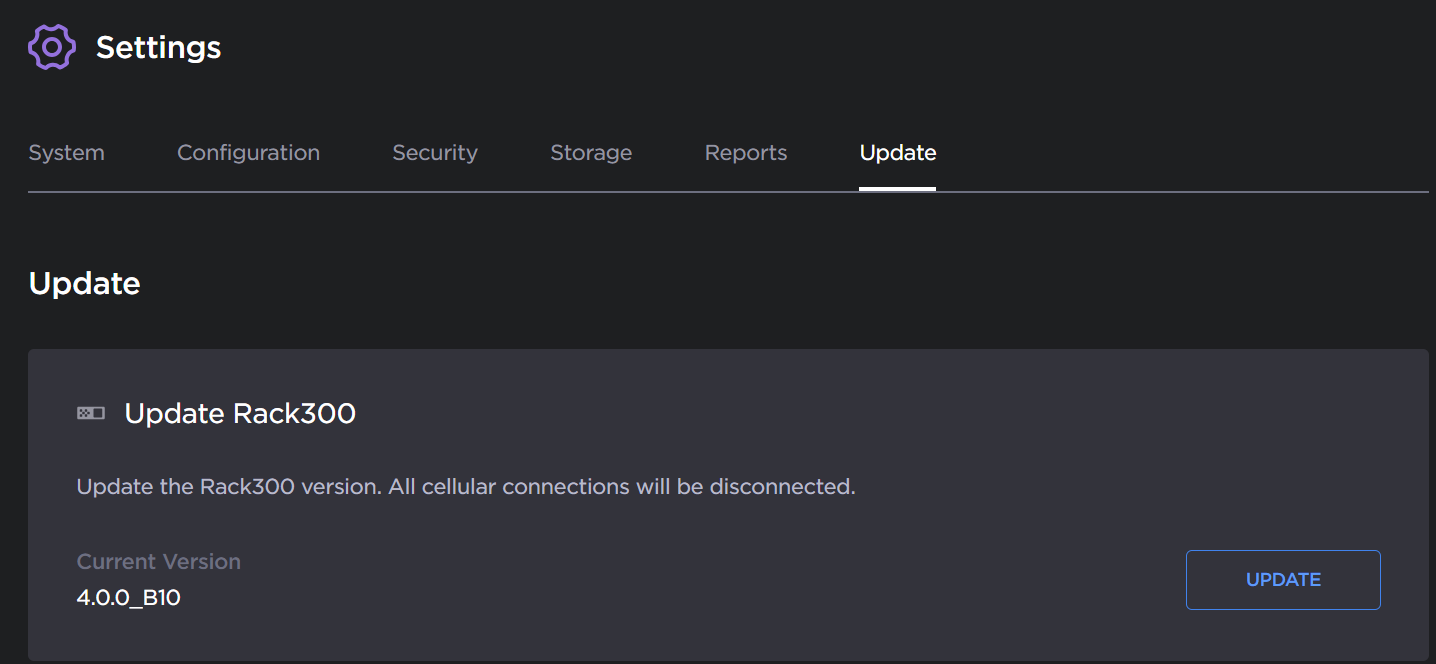

Update Button
Update Button

  1. Click the Update button.

  2. Drag and drop or click the Browse button to select the .fw software file that you saved.

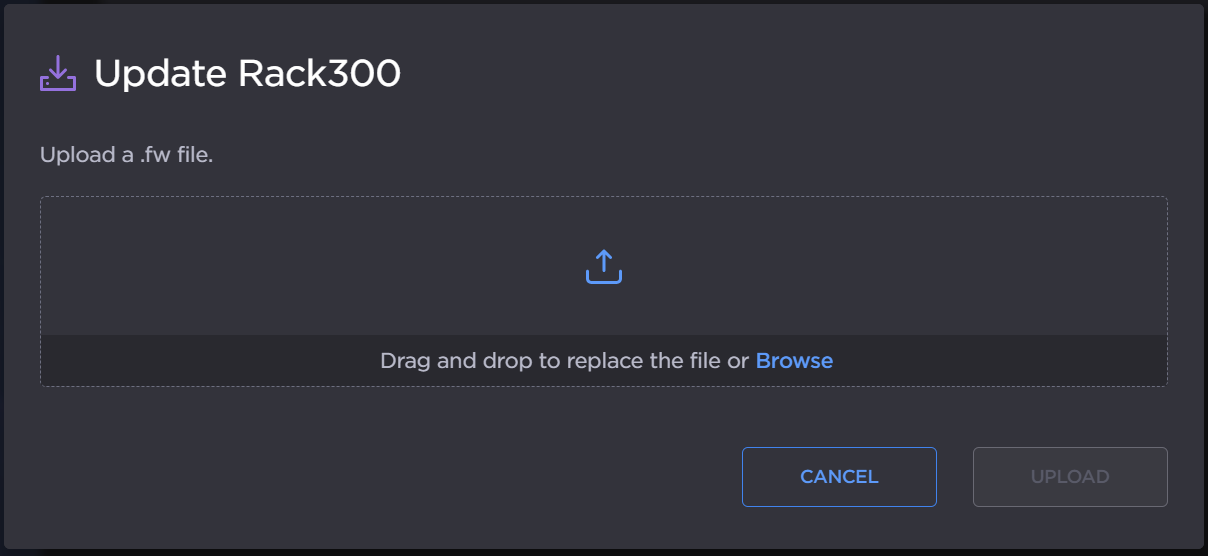

Upload dialog
Upload dialog

  1. Click the Upload button.

  2. Follow the instructions on the screen.

Important

The update may take several minutes, depending on whether it is a major update or not. During the update, do not perform any actions on the system. At the end of the process, a message appears to reboot or switch off the unit, depending on the firmware version uploaded.
