The unit front panel allows you to:
-
Configure the unit
-
Start/stop a live
-
Start/stop a record
-
Forward stored files
-
Edit various unit settings
Home Menu
The Home Menu provides easy access to each option:
Settings Menu
The Settings Menu provides the following icons:
Status bar

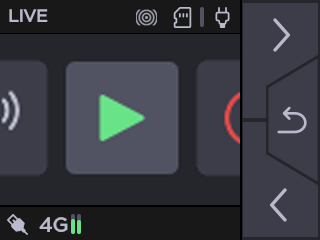

On the front panel the status bars on the top and bottom of the panel, icons indicate the unit state. For example:
|
Status Icon |
What it means |
|---|---|
|
|
BGAN connection. |
|
|
Bars Pattern selected. |
|
|
Black Pattern selected. |
|
|
Circles Pattern selected. |
|
|
Cellular connections and their signal levels. |
|
|
Data bridge enabled/disabled. See (6.0-Air-Pro3-Rack3) Configuring a Data Bridge. |
|
|
Ethernet connections. |
|
|
HDMI input selected but no received stream. |
|
|
HDMI input selected receiving a stream. |
|
|
Intercom communication with master room. See (6.0-Air-Pro3-Rack3) Using the Intercom. |
|
|
Live at startup (if enabled). See (6.0-Air-Pro3-Rack3) Enabling/Disabling Auto-Live at Startup. |
|
|
Location (if enabled). See (6.0-Air-Pro3-Rack3) Enabling/Disabling the Unit Location. |
|
|
Missions selected if the unit is linked with a Manager supporting the Story Centric Workflow. See (6.0-Air-Pro3-Rack3) Selecting a Mission. |
|
|
USB key and the memory space used. |
|
|
SD card detected and memory space used. |
|
|
SD card in Hot Folder mode. See (6.0-Air-Pro3-Rack3) Transmitting Files via the Hot Folder. |
|
|
SD card locked. Add, change or remove content on the card cannot be done if locked. Remove SD card and slide the Lock switch on the side of the card. |
|
|
SDI input selected but no received stream. |
|
|
SDI input selected receiving a stream. |
|
|
Unit connected to power supply. |
|
|
Video Return enabled and receiving a stream. See (6.0-Air-Pro3-Rack3) Receiving a Video Return. |
