Importing the Unit Configuration

You can import the unit configuration via the unit panel, web interface, or a USB flash drive.

Note

You can also import the configuration from Manager (v3.3.0 and higher).

Unit Panel

  1. From the Home menu, tap Settings icon >  Device Settings icon > Configuration > Import from file.

  2. Select the .awj file to be imported from the SD card or the USB flash drive.

Web Interface

  1. In the sidebar, click Settings.

  2. Click the Configuration tab.

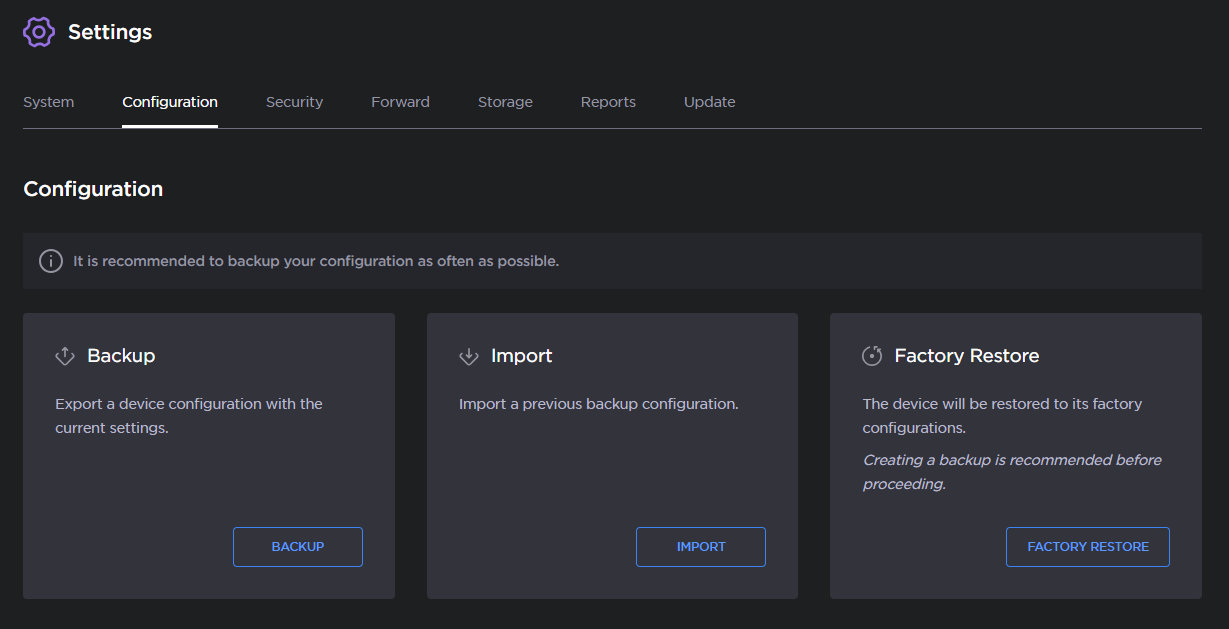

    Configuration Options
    Configuration Options

  3. Click the Import button.

  4. Drag and drop or click Browse to select the .awj file to be imported.

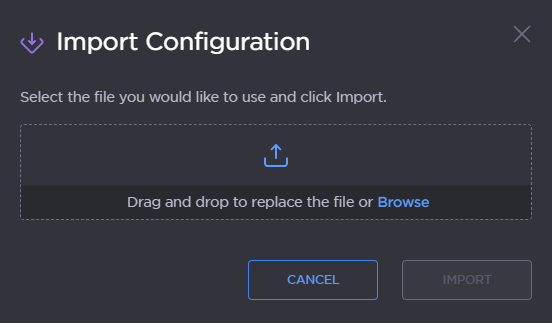

    Import Configuration dialog
    Import Configuration dialog

  5. Click the Import button.

USB Flash Drive

The unit supports automatic reconfiguration at startup or after detecting the insertion of a USB flash drive containing specific configuration files in its root directory.

  • For an overall configuration: the file must be named autoconfig.awj.

  • For a configuration related to network only: the file must be named networkconfig.awj or networkconfig.conf. If both are present, only networkconfig.conf will be used.

  • For a Destination Profile auto-configuration: the file must be named destinationconfig.awj.

Note

If autoconfig.awj, networkconfig.xxx, and destinationconfig.awj are present, only autoconfig.awj will be used.

The reconfiguration is rejected when:

  • the file format is not valid,

  • the file is not applicable for the product (e.g., Air configuration file applied on Pro3), or

  • the unit is in operation (Live, Forward, Record).

Note

  • When the unit is reconfigured, the Activity LED blinks blue 3 times.

  • When reconfiguration is rejected, the Activity LED blinks red 3 times.
