By default, the unit does not contain a Broadband Global Area Network (BGAN) profile. You must create and configure a BGAN profile before selecting it in a Live profile or a Forward configuration. See (6.0-Air-Pro3-Rack3) Configuring Live Profiles and (6.0-Air-Pro3-Rack3) Configuring Forward Settings.
To configure a BGAN profile from the Unit panel or Web Interface, see the sections below.
Unit Panel
-
From the Home menu, tap
-
Fill in the settings:
-
Profile Name
-
Model: Hughes 9201, Hughes 9211, or Explorer 710
-
APN
-
-
Enter a Username and a Password (if required).
-
Select a Mode: X-Stream, Background, HDR Full-Asymmetric, or HDR Full-Symmetric.
-
Tap
Web Interface
-
In the sidebar, click Network > Satellite > BGAN.
-
Click the Add Profile button.

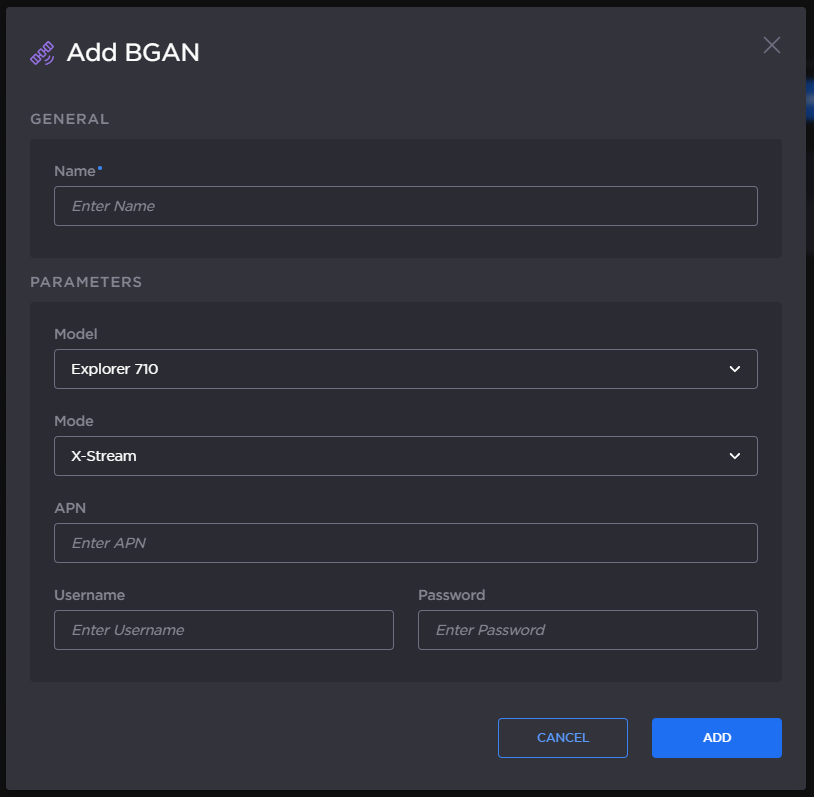

Add BGAN Profile -
Fill in the settings: Profile Name, Model, and APN.
-
Enter a Username and a Password, if required.
-
Choose a Mode in the dropdown list.
-
Click the Add button.

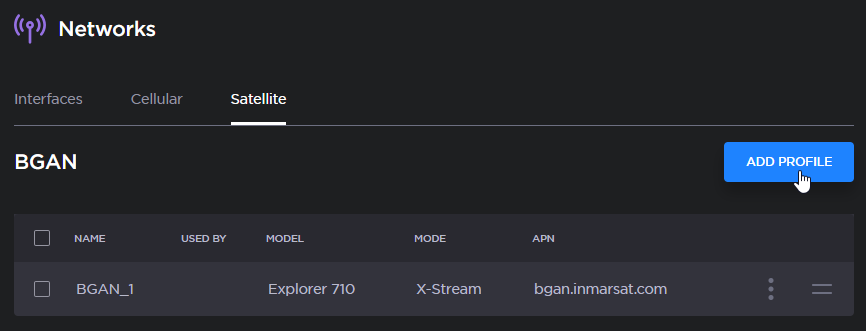

The new BGAN profile is added to the Networks list.
