After setting a Destination Profile, you can configure a Live encoding using a pattern to test communication between the unit and the destination receiver.
-
From the web interface, in the sidebar click Streaming > Input/Output.
-
In the Pattern dropdown, select a pattern: color circles, color bars, black.
-
Select the resolution in the Pattern Standard dropdown.
-
Click the Apply button.
-
Click the Streams tab and click the
-
Edit the stream by selecting Pattern in the Video Source dropdown.
-
Click the Save button.
-
Start the live by clicking the

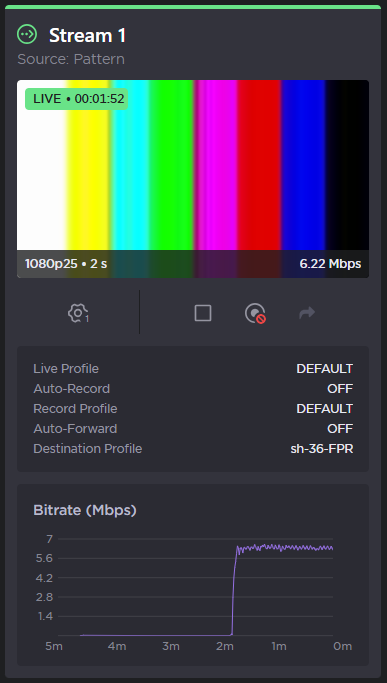

The live starts and the pattern appears.
