Adding a Destination Profile

To add a destination Profile from the Unit Panel or from the Web Interface, see the sections below.

Unit Panel

  1. From the Home menu, tap Settings icon >  Destinations icon > Add button .

  2. Tap Arrow Down to configure the new destination profile settings (see Destination Profile Settings below for details on each destination type).

  3. Tap Save icon to save the new destination profile settings.

Web Interface

  1. Click on Streaming > Destination.

  2. Click the Add Profile button.

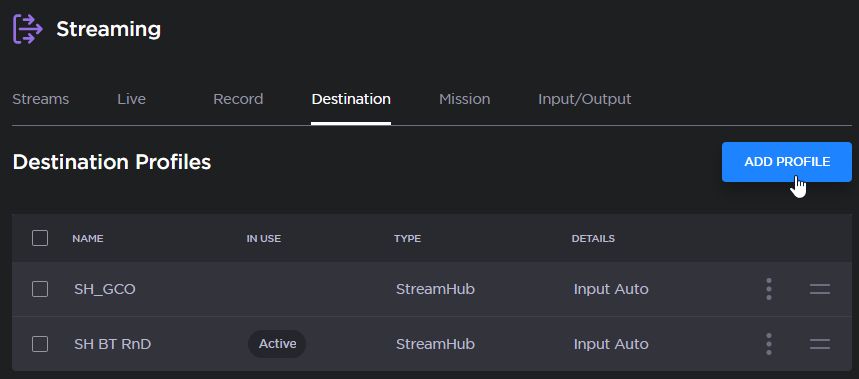

    Add Profile button
    Add Profile button

    The Add Destination Profile appears:

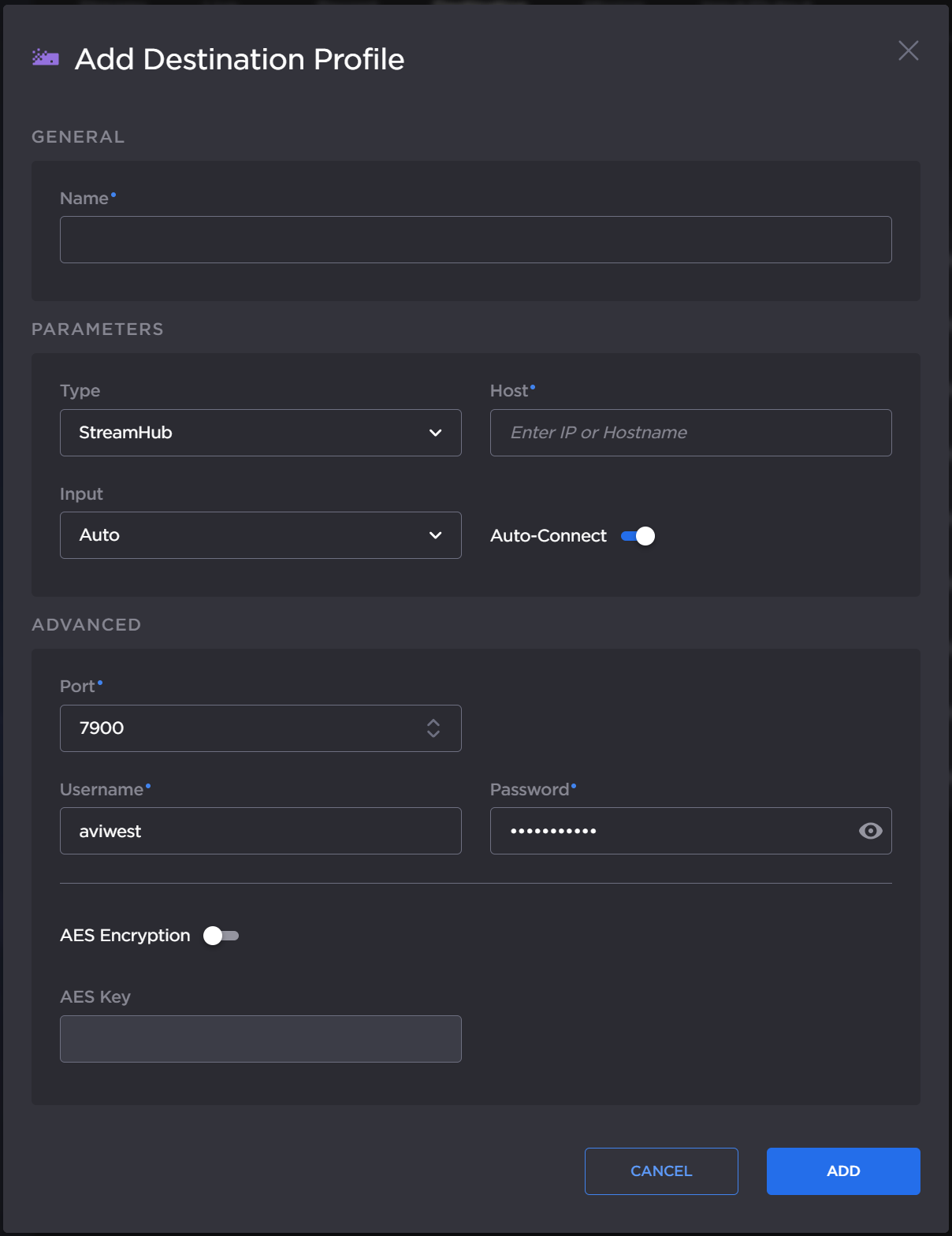

    Add Destination Profile dialog
    Add Destination Profile dialog

  3. Enter a Name for the Profile.

  4. Select the type of Destination Profile (StreamHub, Manager, Hub360, or SRT Receiver) in the Type dropdown.

  5. Configure the settings as shown in the table below.

  6. Click the Add button.

To select the newly created Destination Profile, see (6.0-Air-Pro3-Rack3) Selecting a Destination Profile.

Destination Profile Settings

Note

  • These settings may have been changed by the system administrator.

  • Enable the Auto-connect option to automatically connect to a receiver when the unit is powered on.

Hub360

Manager

SRT Receiver

StreamHub

  • Please refer to Hub360 user's guide to connect a transmitter to a Hub360.

  • Auto-connect toggle (Enable/Disable)

  • IP address or Hostname

  • Auto-connect toggle (Enable/Disable)

    This connection cannot be established through a BGAN terminal.

  • Port. Default: 9000

  • Username. Default: username

  • Password (if required). Default: password

  • SRT mode (Caller or Listener)

  • Host

  • SRT port

  • Ethernet port

  • Latency

  • SRT Encryption (and passphrase if enabled)

  • Stream ID (Caller mode only)

  • IP address or Hostname

  • Input assignment on the StreamHub (Automatic Assignment possible)

  • Auto-connect toggle (Enable/Disable)

    This connection cannot be established through a BGAN terminal.

  • Port. Default: 7900

  • Username. Default: aviwest

  • Password. Default: safestreams

  • AES key if required
