Selecting the Audio Source

You can select amongst two options:

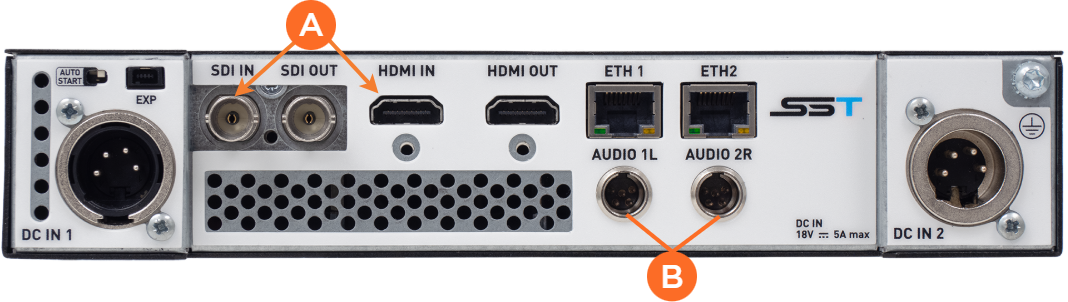

• From Video – When using the SDI or HDMI inputs , the audio is embedded in the video source.

• Analog (Balanced) – The analog audio inputs are used to connect to an analog audio source.

Unit Panel

1. From the Home menu, tap > .

2. Tap . The current source is displayed.

3. Tap the Audio source field to select another source.
   When Audio source is set to Analog, the Audio Level field appears.

4. Tap or to adjust the analog input level.

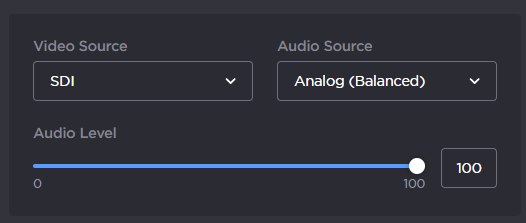

Web Interface

1. From the dashboard, click .

2. In the Audio Source field, select the audio source amongst 2 options:

   • From Video

   • Analog (Balanced)

3. When the audio source is analog, move the Audio level cursor to adjust it.
