Note
This page includes information regarding both the original Makito X1 chassis and the Makito X1 chassis v2. The Network connector and DC IN/IO connector on v2 have been changed in order to meet higher vibration requirements.
The following tables provide the manufacturer names, part numbers, and pinouts for the Makito X1 Rugged Network connectors.
Network Connector v2
|
Network Connector v2 |
|||
|---|---|---|---|
|
|
On Unit |
Mating Connector |
|
Manufacturer |
LEMO |
LEMO |
|
|
Connector Type |
Network Connector |
Network Connector |
|
|
Part Number |
HEP.2M.312.XLNP |
FGP.2M.312.XLCT |
|
|
Network Connector Pinout v2 |
|
|---|---|
|
Contact # |
Description |
|
1 |
ETH B+ |
|
2 |
ETH B- |
|
3 |
ETH C+ |
|
4 |
ETH C- |
|
5 |
ETH D+ |
|
6 |
ETH D- |
|
7 |
ETH A+ |
|
8 |
ETH A- |
|
9 |
GND |
|
10 |
SYS_RST# |
|
11 |
N/C |
|
12 |
N/C |
Network Connector
|
Network Connector |
|||
|---|---|---|---|
|
|
|
On Unit |
Mating Connector |
|
Manufacturer |
Hirose |
Hirose |
|
|
Connector Type |
Network Connector |
Network Connector |
|
|
Part Number |
LF10WBRB-12S |
LF10WBP-12P(31) |
|
|

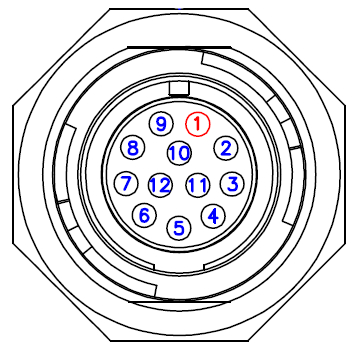

Network Connector Pinout |
|
|---|---|
|
Contact # |
Description |
|
1 |
ETH A+ |
|
2 |
ETH A- |
|
3 |
ETH B+ |
|
4 |
ETH B- |
|
5 |
ETH C- |
|
6 |
ETH C+ |
|
7 |
ETH D- |
|
8 |
ETH D+ |
|
9 |
N/C |
|
10 |
N/C |
|
11 |
SYS_RST# |
|
12 |
GND |
