Enclosure Front Panel

Note

This page includes information regarding both the original Makito X1 chassis and the Makito X1 chassis v2. The Network connector and DC IN/IO connector on v2 have been changed in order to meet higher vibration requirements.

The Makito X1 Rugged enclosure provides rugged connectors for connecting the encoder's Power/Audio/Serial inputs, Video input, and Network interface, located on the front panel. There is one LED that indicates the power status.

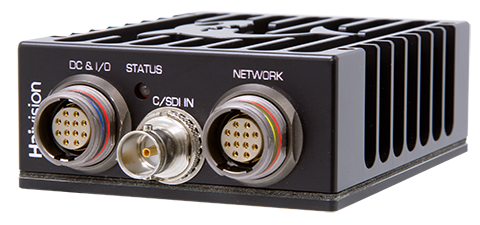

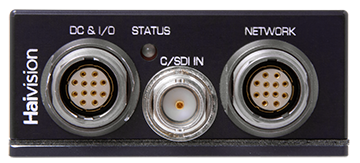

MX1 Rugged v2 (#S-MX1E-R-V2-SDI1)

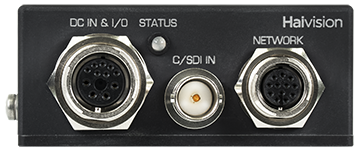

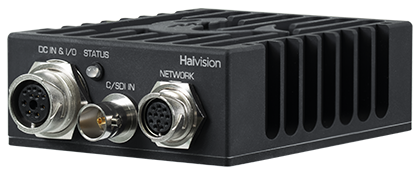

MX1 Rugged (#S-MX1E-R-SDI1)



Connectors

Connector

Description

Number of Contacts

DC IN and I/O ConnectorHirose P/N LF13WBRB – 11S11
DC IN and I/O Connector v2 Lemo P/N HEN.2M.312.XLNP 12
Video Input Connector

Coax BNC Jack Amphenol P/N 31-70551-12G

1

Network Connector

Hirose P/N LF10WBRB – 12S

12

Network Connector v2

Lemo P/N HEP.2M.312.XLNP

12

LED Status Indicator

Function

Description

Indication

STATUS

Off

No power

Green fast blinking

Reset button is pressed for less than four seconds. If the Reset button is not pressed, there is a power fault.

Green slow blinking

Booting/Initialization

Green solid

Booting/Initialization sequence is complete (No fault/OK).

Orange fast blinking

Reset button is pressed for more than five seconds (Factory Reset enabled).

After Orange fast blinking, the LED turns off, stays off for a while, and then starts Green slow blinking towards the end of the booting up.
