Note
This page includes information regarding both the original Makito X1 chassis and the Makito X1 chassis v2. The Network connector and DC IN/IO connector on v2 have been changed in order to meet higher vibration requirements.
LEMO
|
DC IN & I/O (Power, Audio & Serial) Connector v2 |
|||
|---|---|---|---|
|
|
On Unit |
Mating Connector |
|
Manufacturer |
LEMO |
LEMO |
|
|
Connector Type |
DC IN & I/O |
DC IN & I/O |
|
|
Part Number |
HEN.2M.312.XLNP |
FGN.2M.312.XLCT |
|
For the connector and cable, see (1.3 2) Power up the Makito X1 Encoder.
DC IN & I/O Connector Pinout v2 (#S-MX1E-R-V2-SDI1)
|
LEMO P1 Contact # |
Contact Name |
RS-232 Connections |
RS-422 Connections |
|---|---|---|---|
|
1 |
AUDIO_IN2+ |
|
|
|
2 |
AUDIO_IN2_GND |
|
|
|
3 |
AUDIO_IN1+ |
|
|
|
4 |
AUDIO_IN1_GND |
|
|
|
5 |
COM 0_TXD+ |
|
TXD+ |
|
6 |
COM 0_TXD- |
TXD |
TXD- |
|
7 |
+5VDC IN |
|
|
|
8 |
PSU RETURN |
|
|
|
9 |
N/C |
|
|
|
10 |
GND SERIAL |
GND |
GND |
|
11 |
COM 0_RXD- |
RXD |
RXD- |
|
12 |
COM 0_RXD+ |
|
RXD+ |
HIROSE
|
DC IN & I/O (Power, Audio & Serial) Connector |
|||
|---|---|---|---|
|
|
On Unit |
Mating Connector |
|
Manufacturer |
Hirose |
Hirose |
|
|
Connector Type |
DC IN & I/O |
DC IN & I/O |
|
|
Part Number |
LF13WBRB-11S |
LF13WBP-11P |
|
For the connector and cable, see (1.3 2) Power up the Makito X1 Encoder.

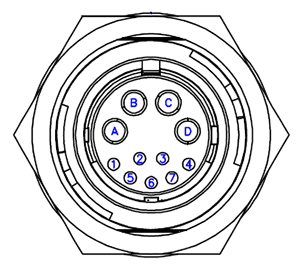

DC IN & I/O Connector Pinout (#S-MX1E-R-SDI1)
|
|
Description |
|
|---|---|---|
|
Hirose P1 Contact # |
RS-232
|
RS-422
|
|
1 |
RXD |
RXD- |
|
2 |
N/C |
RXD+ |
|
3 |
TXD |
TXD- |
|
4 |
N/C |
TXD+ |
|
5 |
COM 0_GND |
|
|
Audio / Power |
||
|
6 |
AUDIO IN CHANNEL 1+ |
|
|
7 |
AUDIO IN CHANNEL 1 GND |
|
|
A |
AUDIO IN CHANNEL 2+ |
|
|
B |
AUDIO IN CHANNEL 2 GND |
|
|
C |
PSU RETURN |
|
|
D |
+5VDC IN |
|
COM1 Management Pinout (on DB9 connector)
|
Contact # |
Signal RS-232 |
Signal RS-422 |
|---|---|---|
|
8 |
|
RXD+ |
|
7 |
|
TXD+ |
|
6 |
|
|
|
5 |
Ground |
Ground |
|
3 |
TXD |
TXD- |
|
4 |
|
|
|
1 |
|
|
|
2 |
RXD |
RXD- |
Note
The COM1 pins are DTE (Data Terminal Equipment) which defines the direction of the signals (IN/OUT).
The COM1 pins are configured by default for Metadata mode but may be switched to Management mode (to connect to a computer for management of the encoder) using the metadata CLI command. The metadata command may also be used to select the transceiver mode for the metadata capture (i.e., RS-232 or RS-422). For details, see metadata in the Makito X1 Rugged Encoder User's Guide.
