Set Up a Test Stream

Setting up a test stream requires that you have an active video source connected to the Makito X1 Encoder. You will need to configure an encoding instance based on your video source, and then configure an output stream for that encoder. For detailed information, refer to Configuring Video Encoders and Configuring Streams (in the User's Guide).

To configure an encoding instance:

  1. Click Streaming on the sidebar, and select the Video Encoders tab.

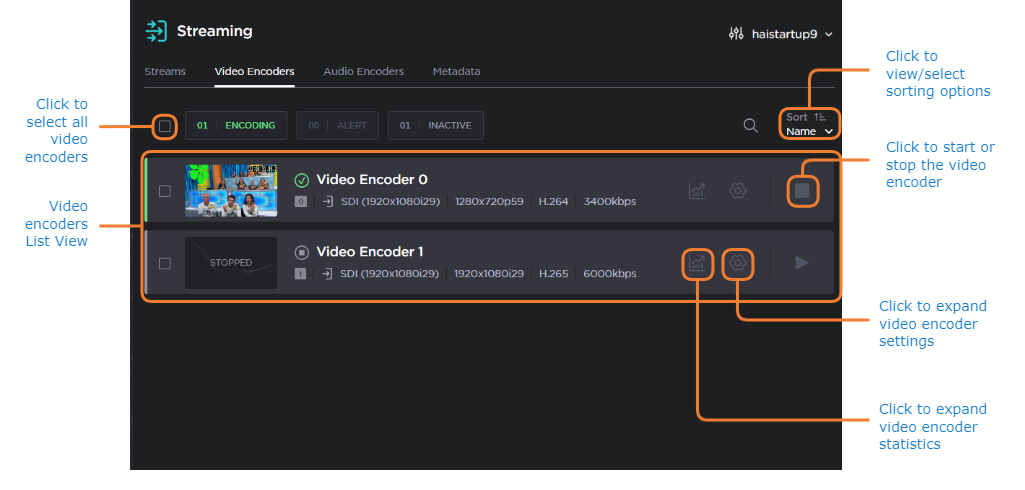

    The Video Encoders List View opens.

  2. Click the Settings icon

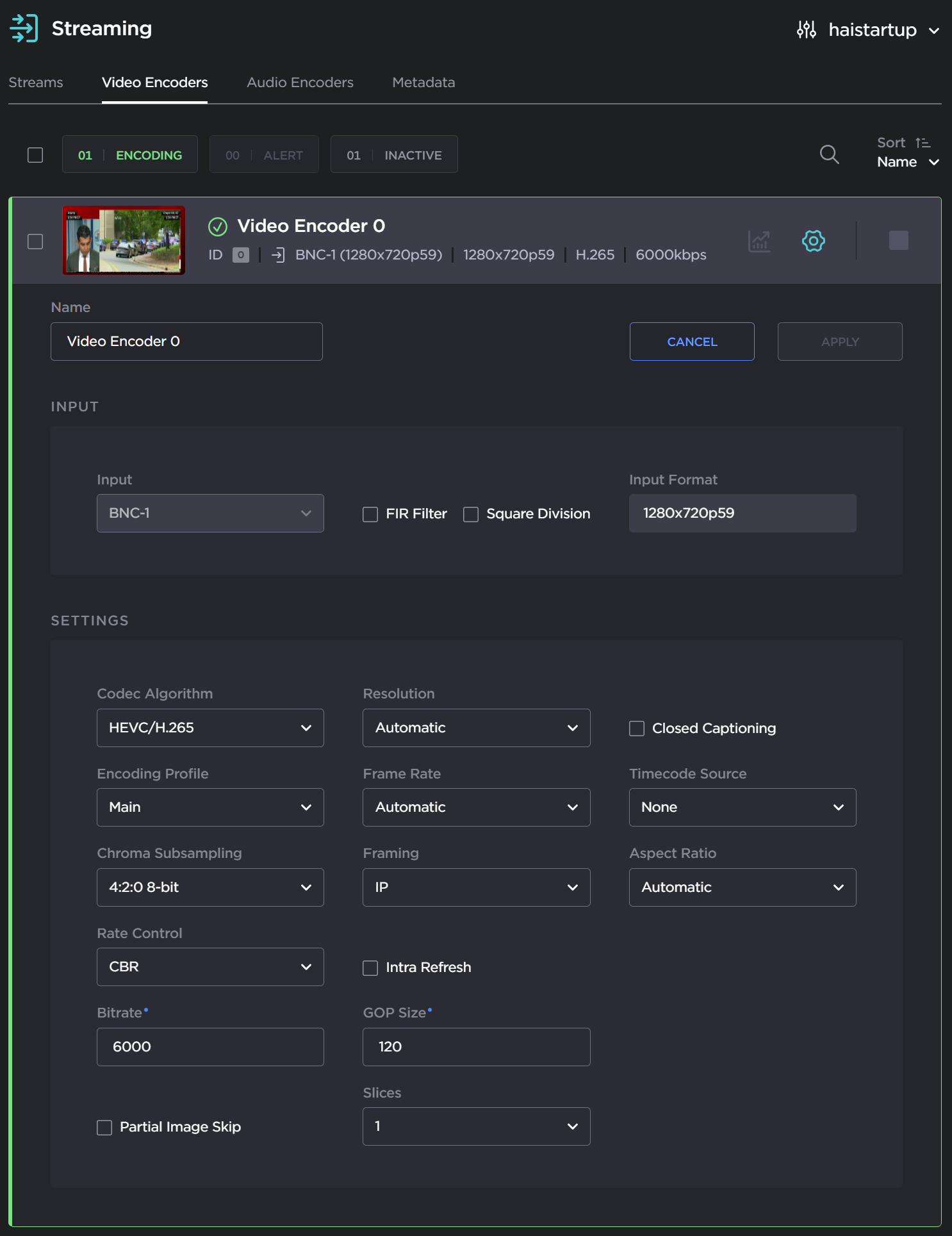

    on the encoder panel to open the Video Encoder Detail View, displaying the settings for the selected video encoder.

  3. To configure the encoder, select or enter the new value(s) in the appropriate fields (see Configuring Video Encoders in the User's Guide).
  4. To enable your changes, click Apply.

To configure an output stream:

  1. Click Streaming on the sidebar, and select the Streams tab.

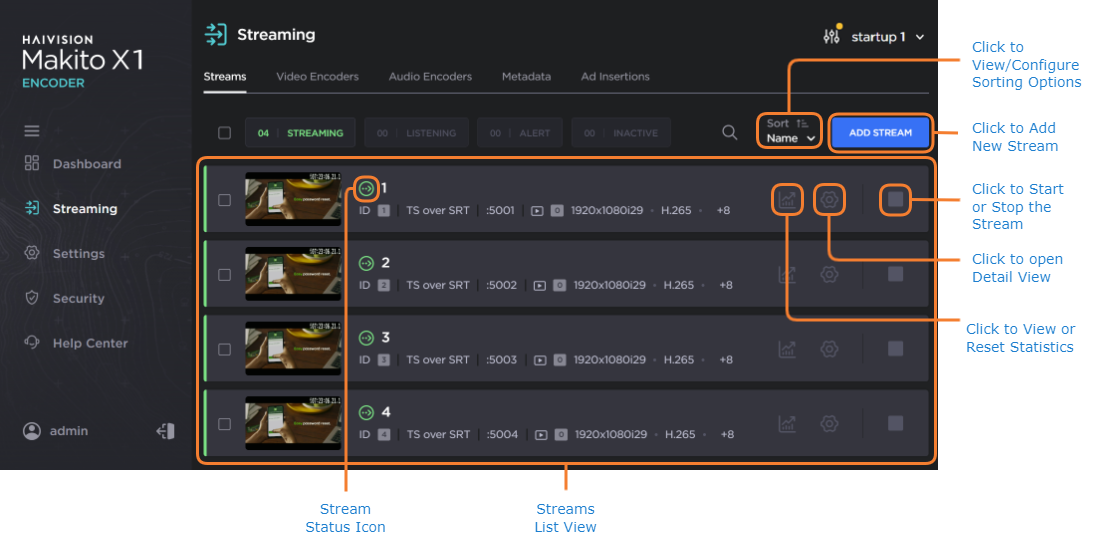

    The Streams List View opens, displaying the list of defined streams for the encoder.

  2. To add an output stream, click the Add Stream button.

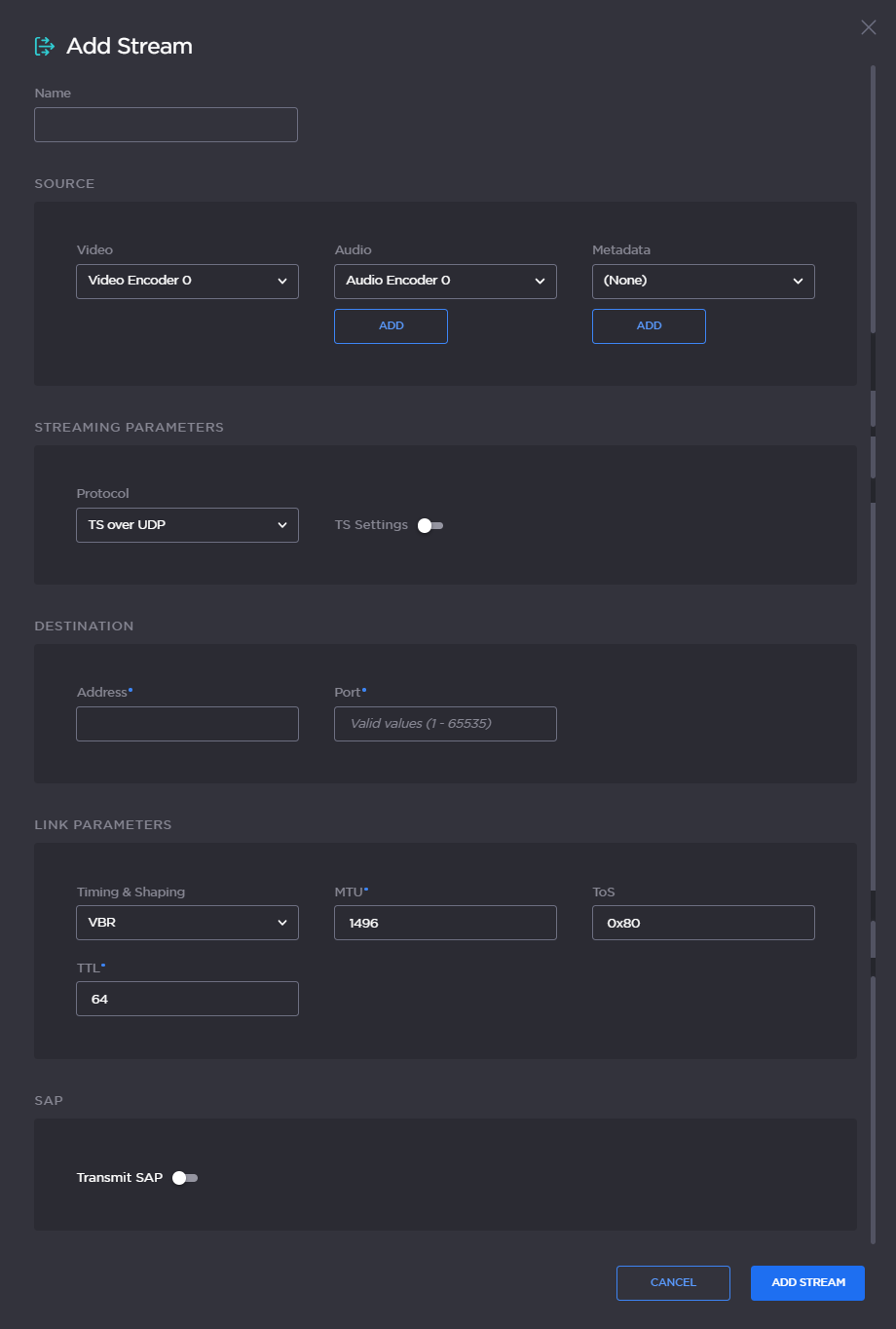

    The Add Stream panel opens.
  3. Enter the stream name and select the sources (Video, Audio, and Metadata, if applicable). See Stream Settings.
  4. Under Streaming Parameters, select TS over UDP for the Protocol.
  5. Under Destination, type in a valid multicast Address (e.g., 239.192.2.3) and Port number (e.g., 2000).

    Note

    The Multicast address range is from 224.0.0.0 to 239.255.255.255. Multicast addresses from 224.0.0.0 to 224.0.0.255 are reserved for multicast maintenance protocols and should not be used by streaming sessions. We recommend that you use a multicast address from the Organization-Local scope (239.192.0.0/14).

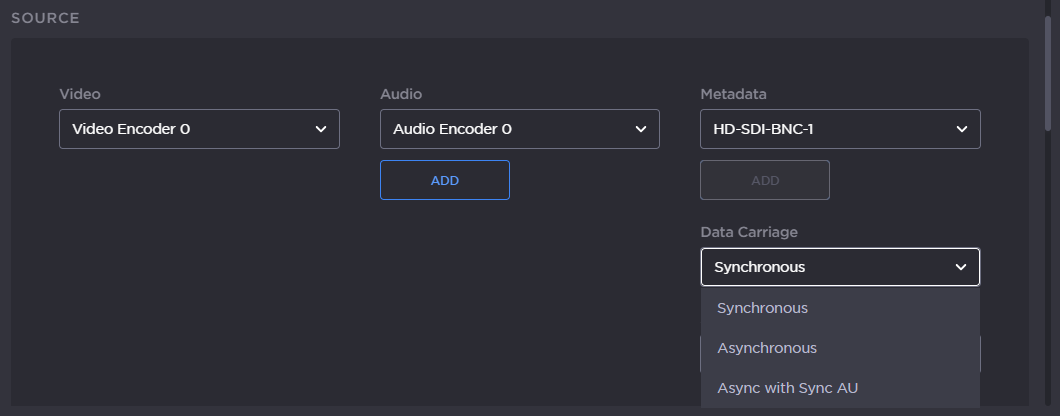

  6. To add metadata to the stream, select the Metadata source, and (optionally) select the encapsulation type (Data Carriage).

  7. To apply your changes and start streaming, click Add Stream.

    Note

    The changes will take effect immediately but will be lost after a reboot. For information on saving configuration settings, refer to Saving and Loading Presets in the User’s Guide.
