Configuring Video Encoder Settings

From the Video Encoder Detail View, you can define the Input interface and video encoding parameters, such as the Codec Algorithm, Encoding Profile, Bitrate, Frame Rate, and GOP Size. For supported video encoding resolutions, see (1.3 2) Supported Video Encoding Input and Downscale Resolutions.

To configure the Video Encoding Settings:

  1. From the Video Encoders List View, click the Settings icon AR_settings.png on the encoder panel.

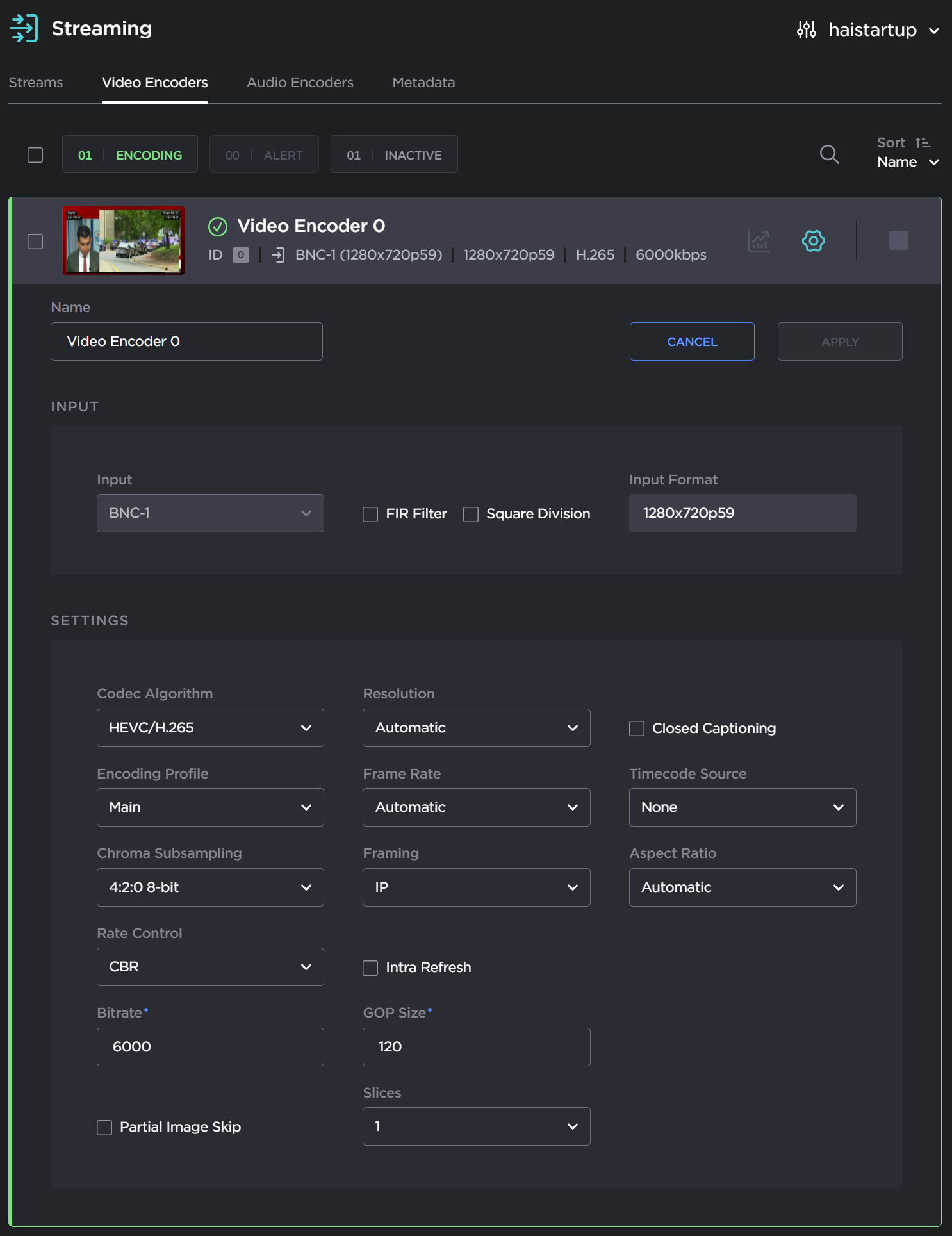

    The Video Encoder Detail View opens, displaying the settings for the selected video encoder.


  2. Select or enter the new value(s) in the appropriate field(s). See (1.3 2) Video Encoder Settings.

  3. Click the Settings icon AR_settings.png  again to retract the video encoder settings.

  4. To start or stop the encoder, click the Start/Stop AR_play_filled.png / AR_stop_filled.png icons (as applicable).

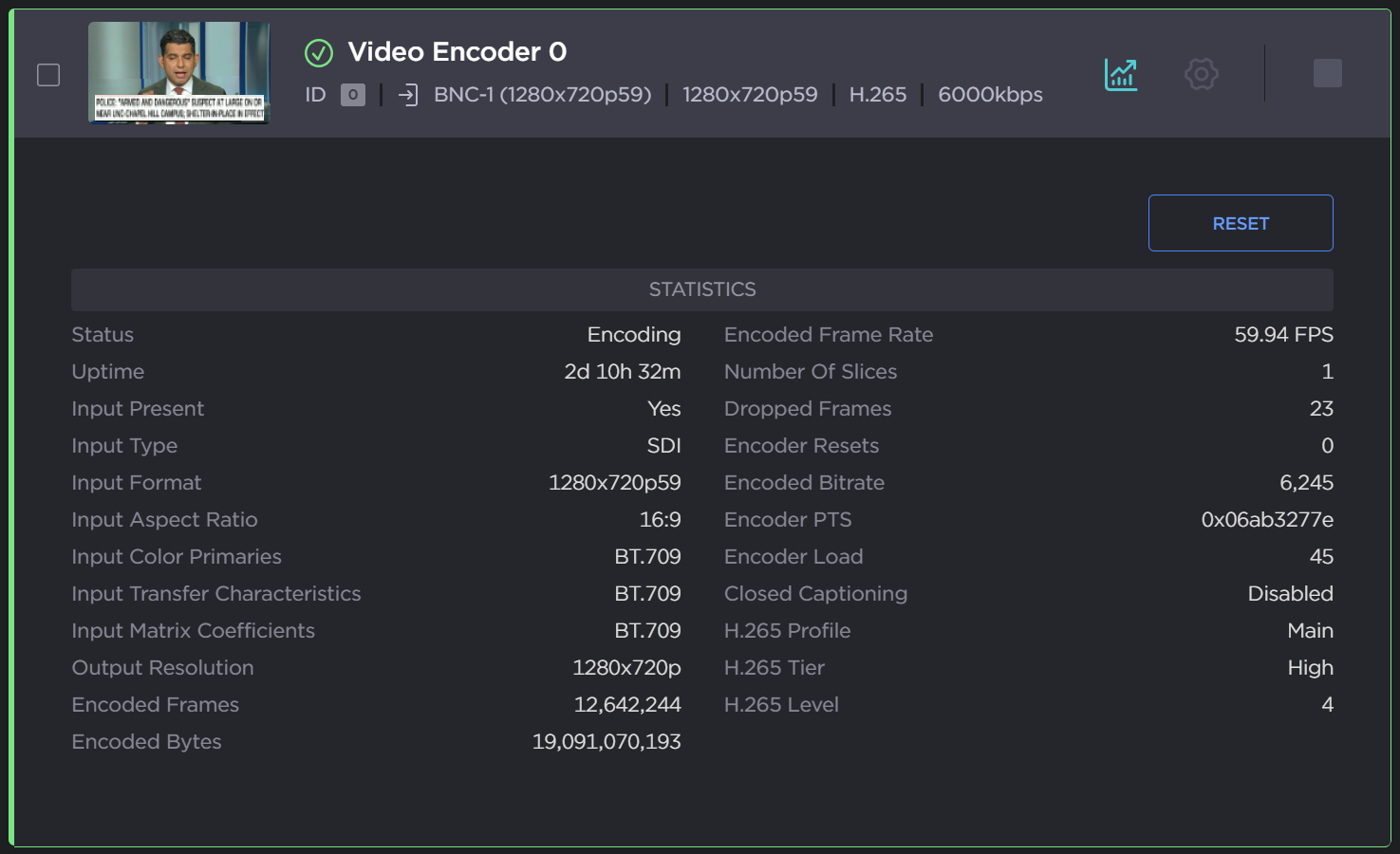

  5. To view the statistics for the encoder, click the Statistics icon AR_settings.png . For details, see (1.3 2) Video Encoder Statistics.


  6. To reset the video encoder statistics, click Reset.

  7. Click the Statistics icon AR_stats_2.png again to retract the video encoder statistics panel.

  8. To apply your changes, click Apply.
