Configuring Ad Insertion Sources

Note

Ad insertion is a licensed feature. For more information on licensing, see (1.3 2) Managing Licenses.

To open the Ad Insertions list view:

  1. Click Streaming on the sidebar, and select the Ad Insertions tab.

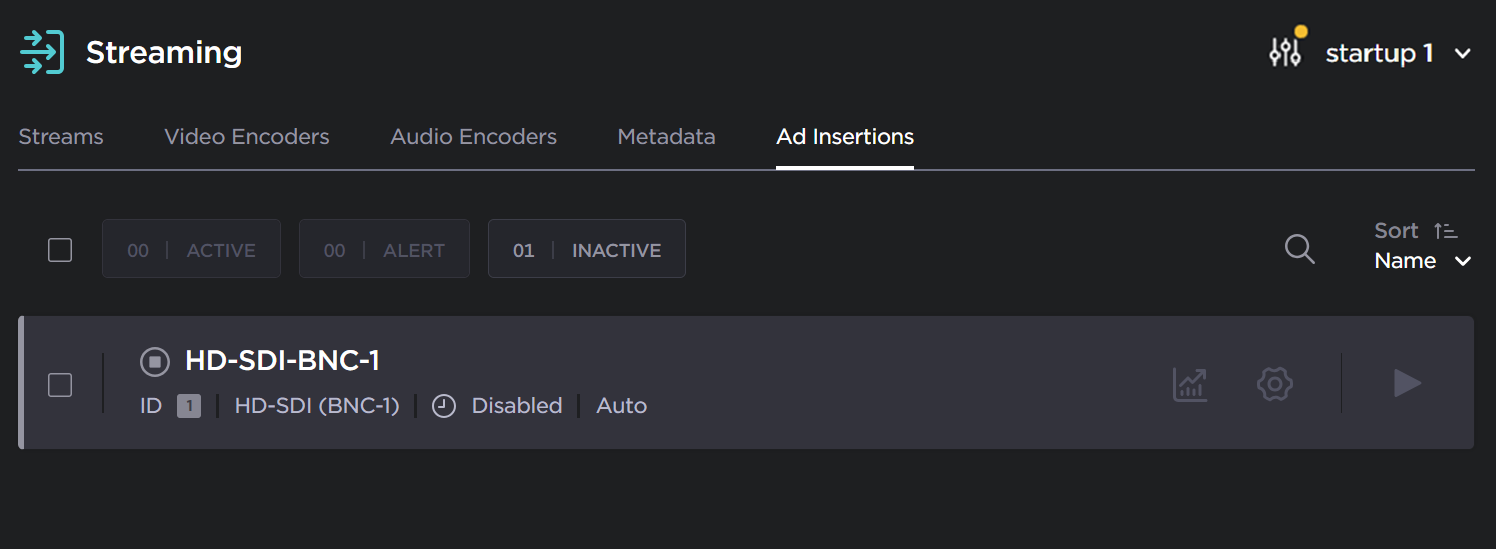

    The Ad Insertions list view opens, displaying the list of ad sources:

    MX1_AdInsertion list view.png

    The Ad Insertions list view displays the name, type, timing, synchronization mode, and status of each ad source.

  2. Click the Start/Stop icon  AR_play_filled.png / AR_stop_filled.png  (as applicable) to start or stop the ad source.

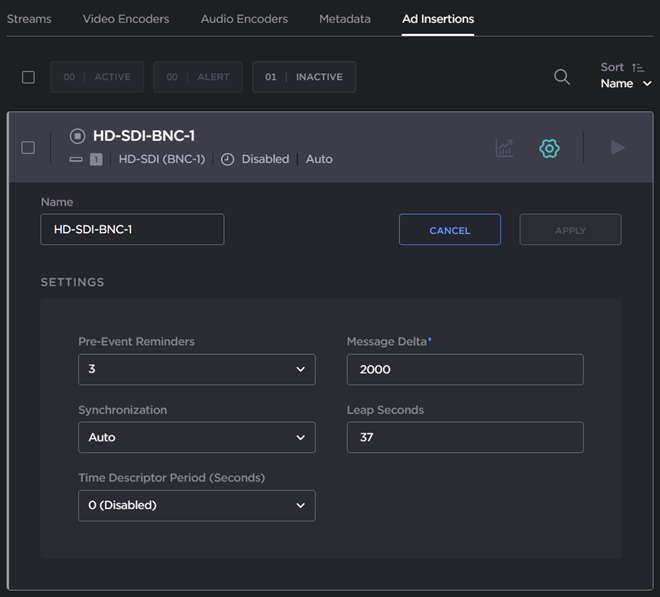

  3. Click the Settings icon  AR_settings.png  on the ad source panel to open the Ad Source Detail view:

    MX1_Ad Insertion Settings.png

    From here you can edit the source name, and configure the ad source settings.

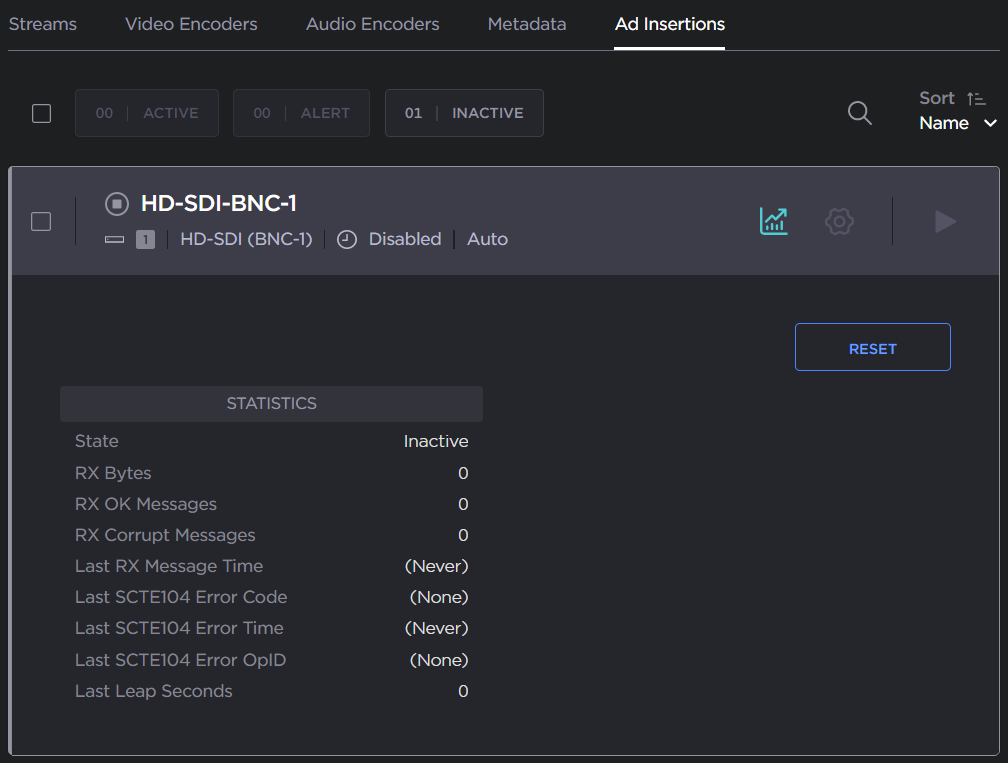

  4. To view the statistics, click the Statistics icon  AR_stats_2.png  on the ad source panel.


Tip

You can also configure Ad Insertions through the Command Line Interface (CLI) using the adinsertion command. See (1.3 2) adinsertion.
