From the Video Encoders page, you can configure two video encoders to apply to streams. Each encoder can be configured independently and assigned to multiple outputs to support multi-bitrate streaming. You can start and stop each video encoder, as well as display statistics.
The Makito X1 supports concurrent AVC/H.264 and HEVC/H.265 video encoding.

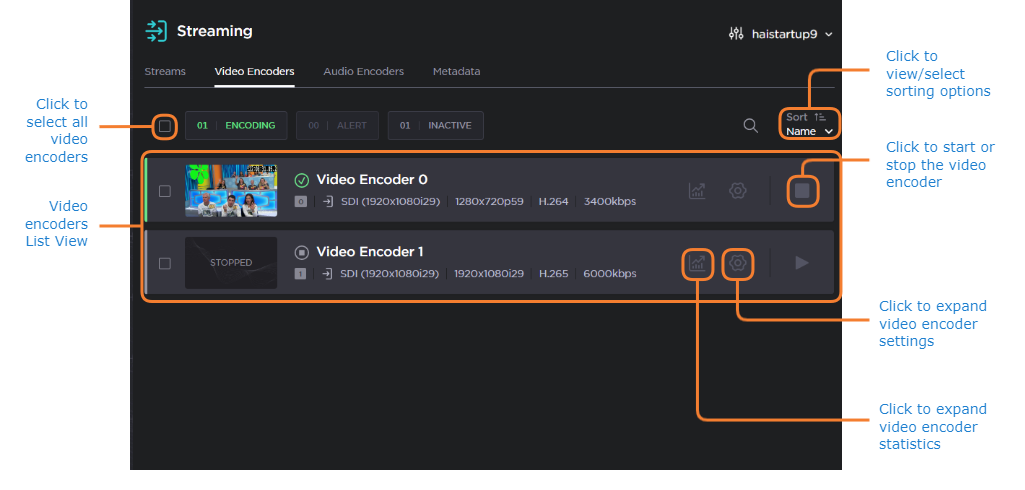

Video Encoders List View
To open the Video Encoders List View:
-
Click Streaming from the sidebar, and select the Video Encoders tab.
The Video Encoders List View opens.
The Video Encoders List View displays the status, Name, Input format, Resolution, Codec (Algorithm), and Bitrate for each video encoder.
-
From here, you can perform the following tasks:
-
To view or modify the video encoder statistics, click the Statistics icon
-
To view or modify the video encoder Name, Input, and Detailed Settings, click the Settings icon
-
To change the video encoder status, click the Start/Stop icon
-
To change the status for multiple video encoders, check the check-boxes on each video encoder panel and click the Start or Stop buttons (as applicable) that appear above the list.
-
-
To apply your changes, click Apply.
