Configuring Audio Encoders

From the Audio Encoder page, you can configure up to four independent audio encoders to apply to streams. You can also start, mute, and stop each audio encoder, as well as display statistics for the encoder.

Note

The Makito X1 is capable of encoding up to eight channels of audio in channel pair groups.

Audio Encoders List View

1. Click Streaming on the sidebar, and select the Audio Encoders tab.

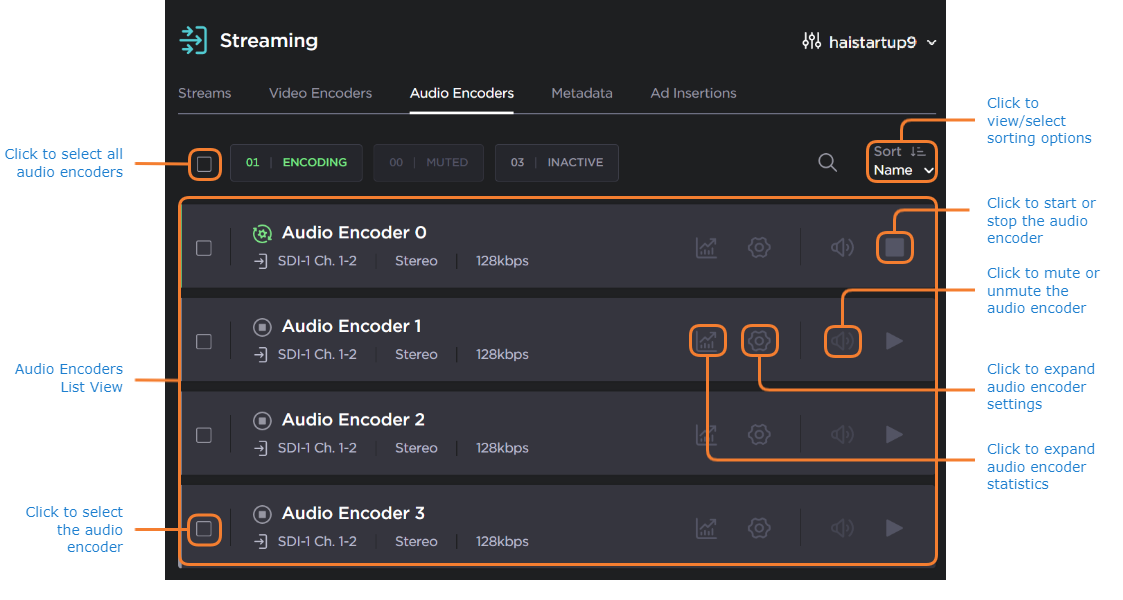

   The Audio Encoders List View opens.

2. The Audio Encoders List View displays the Status, Name, Input, Channel Mode, Language, and Bitrate for each audio encoder.
3. From here, you can perform the following tasks:

   • To view details or modify the audio settings for an encoder, click the Settings icon



     in the audio encoder panel to open the Audio Encoder Detail View.
   • To view the Audio Encoder statistics, click the Statistics icon



     in the audio encoder panel. From here, click the Reset button to reset the statistics.
   • To change the status for an audio encoder input, click the the Mute/Unmute icon



     /



     or the Start/Stop icon



     /



     (as applicable).
   • To change the status for multiple audio encoder inputs, click the checkboxes on each audio encoder panel you wish to modify and click the Start, Stop, Mute, or Unmute buttons (as applicable) that appear above the List View.
   • Change the Audio Encoders sort order by clicking the Sort dropdown menu.
4. To apply your changes, click Apply.
