Haivision Hub 360

Accessing SIM Card Consumption and Management Screens

From the Appliances screen, you may directly navigate to the Cellular Data’s Consumption and SIM Management tabs with the list filtered by the selected transmitter.

To navigate to either tab:

  1. On the Appliances screen, find the transmitter whose SIM cards you wish to review or manage.

  2. Click the  More Options icon and click either  Stats Review Consumption or  Settings SIM Management.

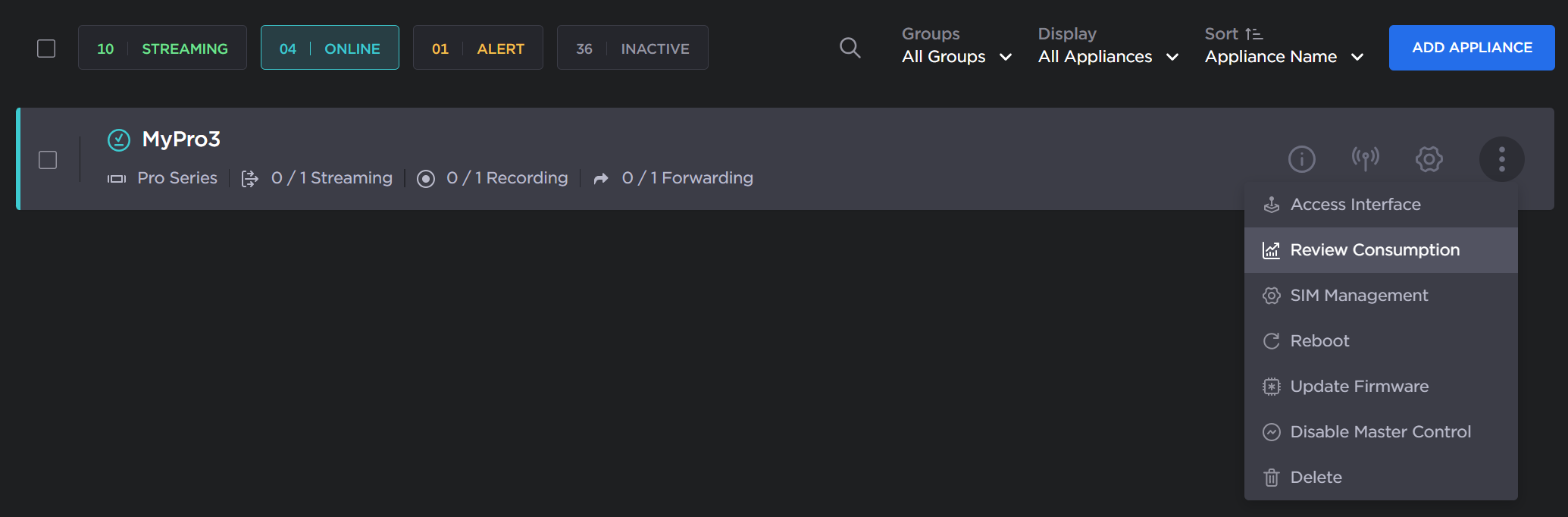

    Appliances SIM options
    Appliances SIM options
  3. Depending on your selection, you are navigated to either the Consumption or SIM Management tab of the Cellular Data page, with the SIM card list filtered to only show those associated with the selected transmitter.

Review Consumption

If you clicked Review Consumption, Hub 360 takes you to the Consumption tab with the Transmitters dropdown selecting only the transmitter you were viewing on the Appliances screen.

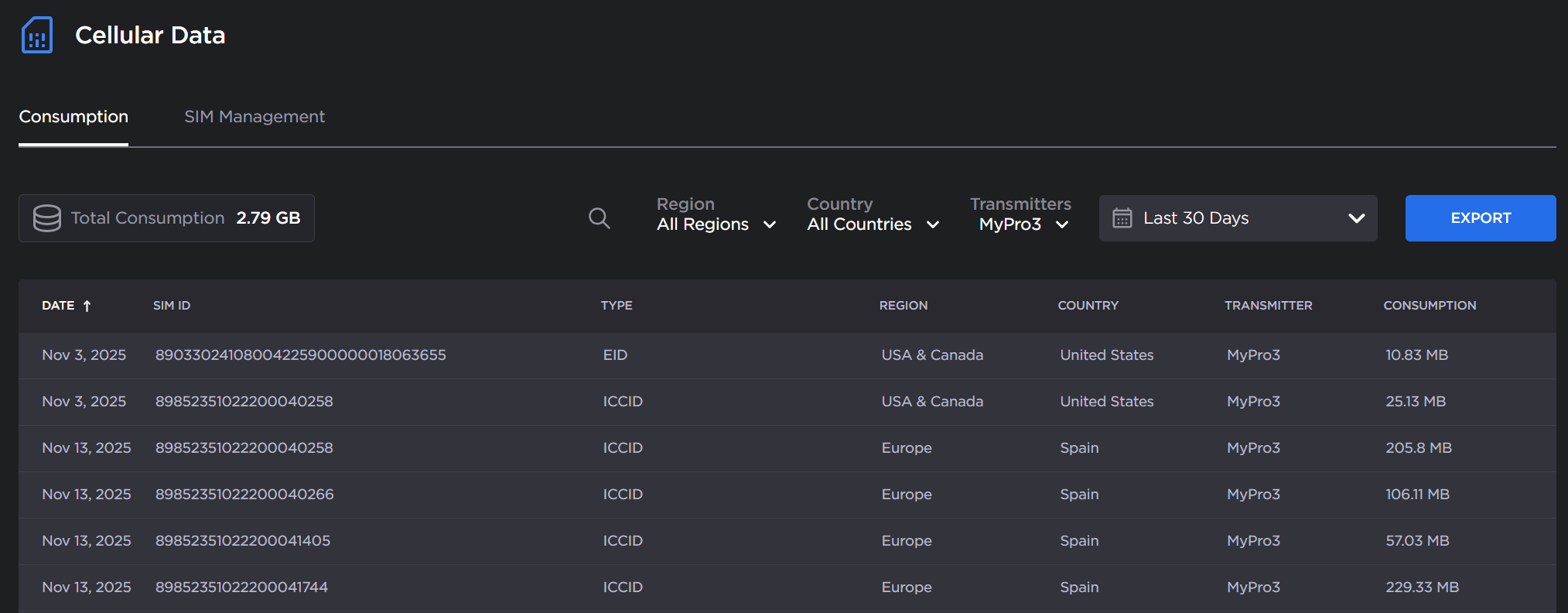

Consumption filtered
Consumption filtered
SIM Management

If you clicked SIM Management, Hub 360 takes you to the SIM Management tab with the Transmitters dropdown selecting only the transmitter you were viewing on the Appliances screen.

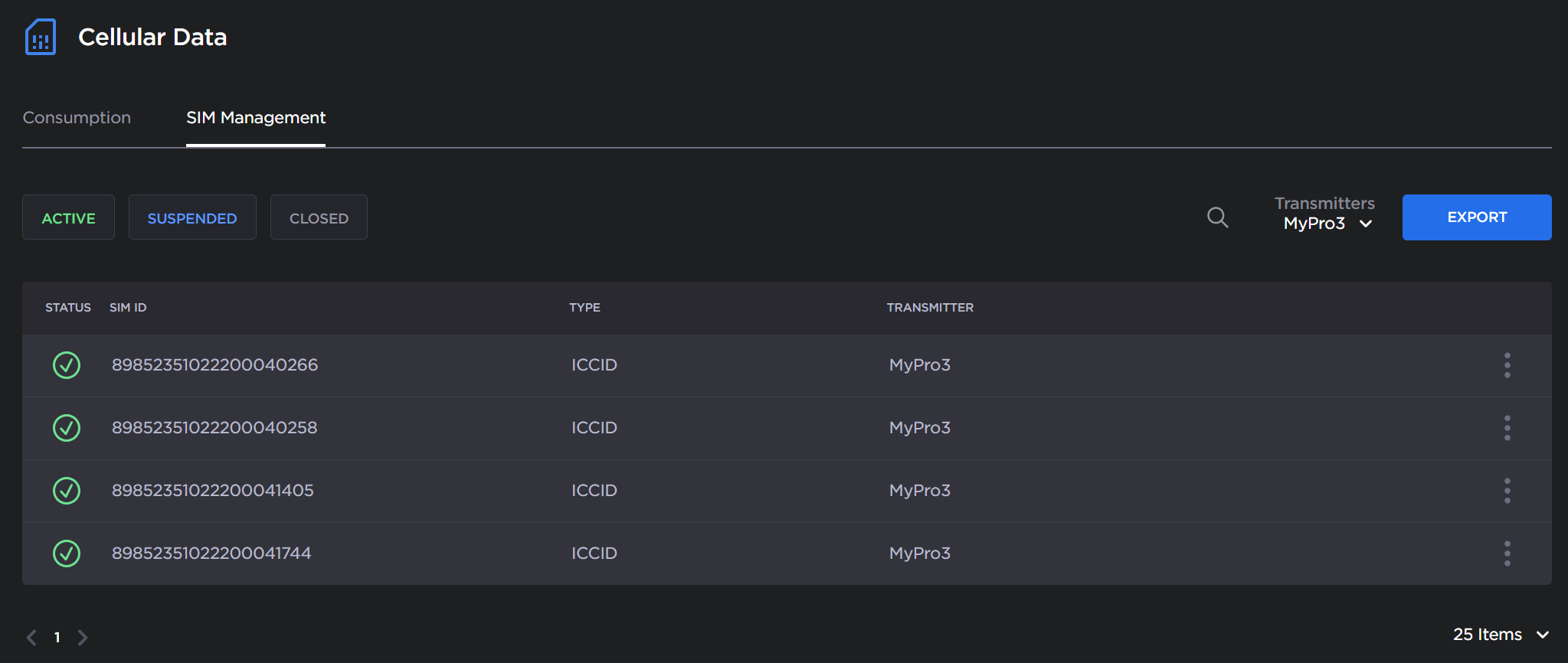

Management filtered
Management filtered
