The Workflows section of Haivision Hub 360 allows you to view all streaming and booked routes created in Hub 360. By expanding each route you can view a graphical representation of the flow of your video streams through your connected appliances.
Note
The route details supplied on this screen are read-only and connect be changed. To update any routes, use the Master Control screen.

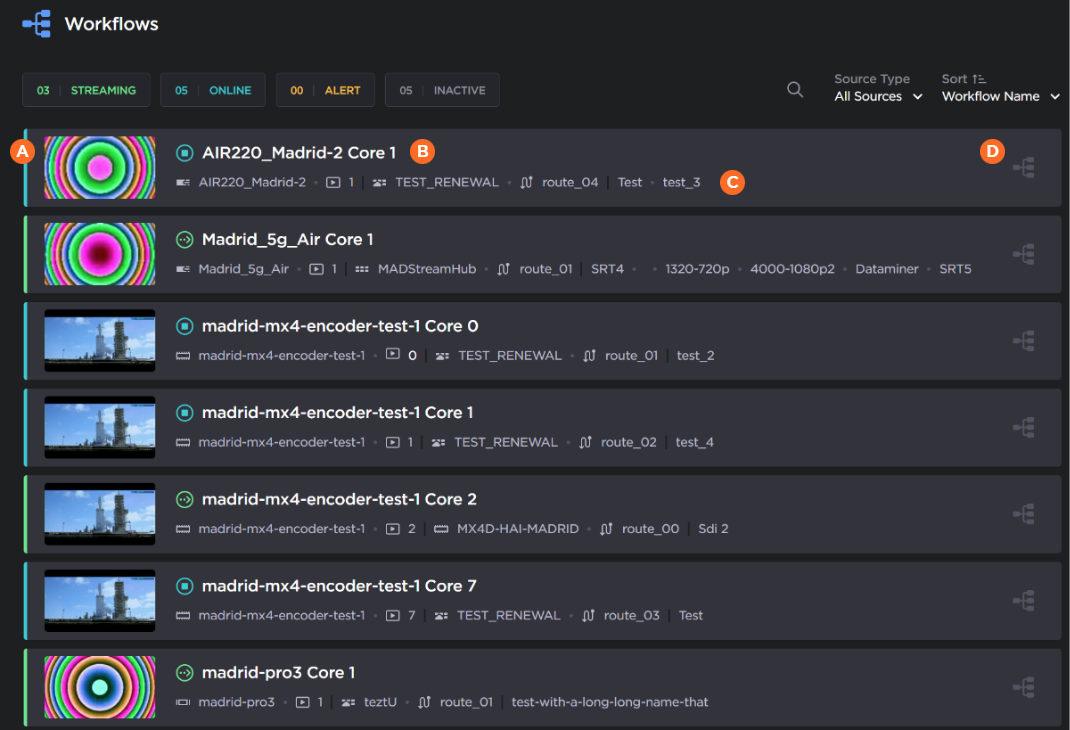

To open the Workflows screen, click Workflows in the sidebar. A listing of all currently streaming and booked routes is shown:
|
|
The status of each stream (streaming, online, alert, or inactive) is indicated by the color next to each stream, which correlates to the status filters above the listing. |
|
|
Indicates the name of the stream. This is an automatically generated name (source appliance name plus core and core number) and cannot be changed at this time. |
|
|
Lists the various details of the stream (source appliance, source core number, destination appliance, route name, output name, etc.) |
|
|
The |

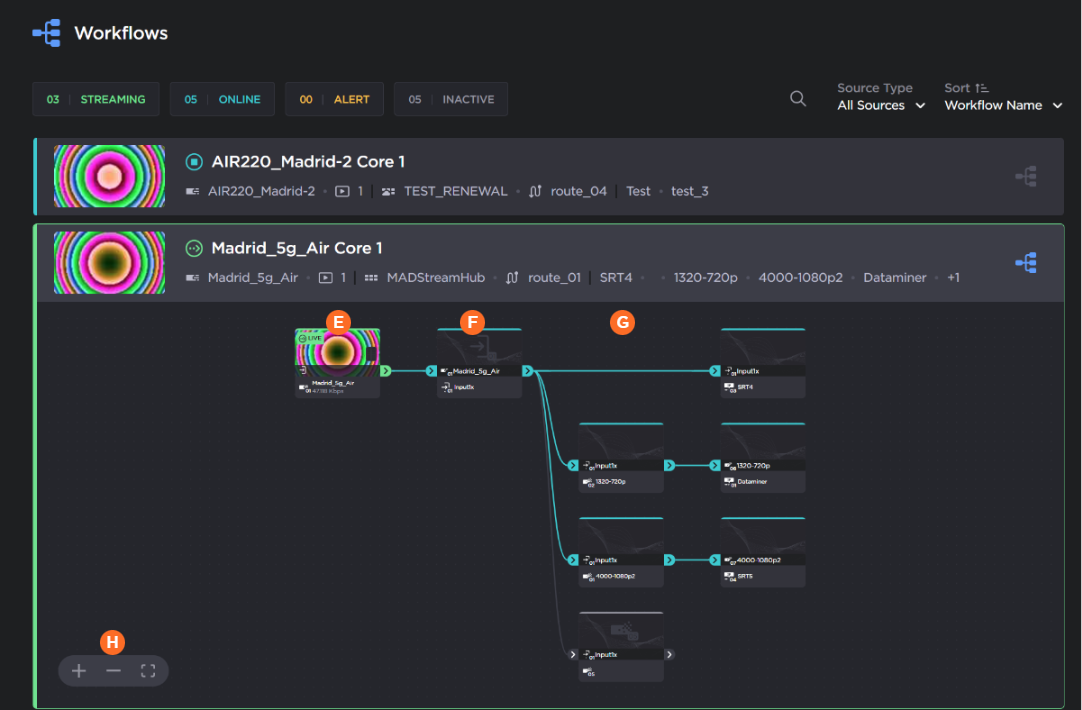

To expand the details of a route, click the
|
|
Source appliance tile. |
|
|
Destination appliance tile. |
|
|
Destination encoder and output tiles. |
|
|
Zoom and Zoom-to-Fit buttons – Use the |
