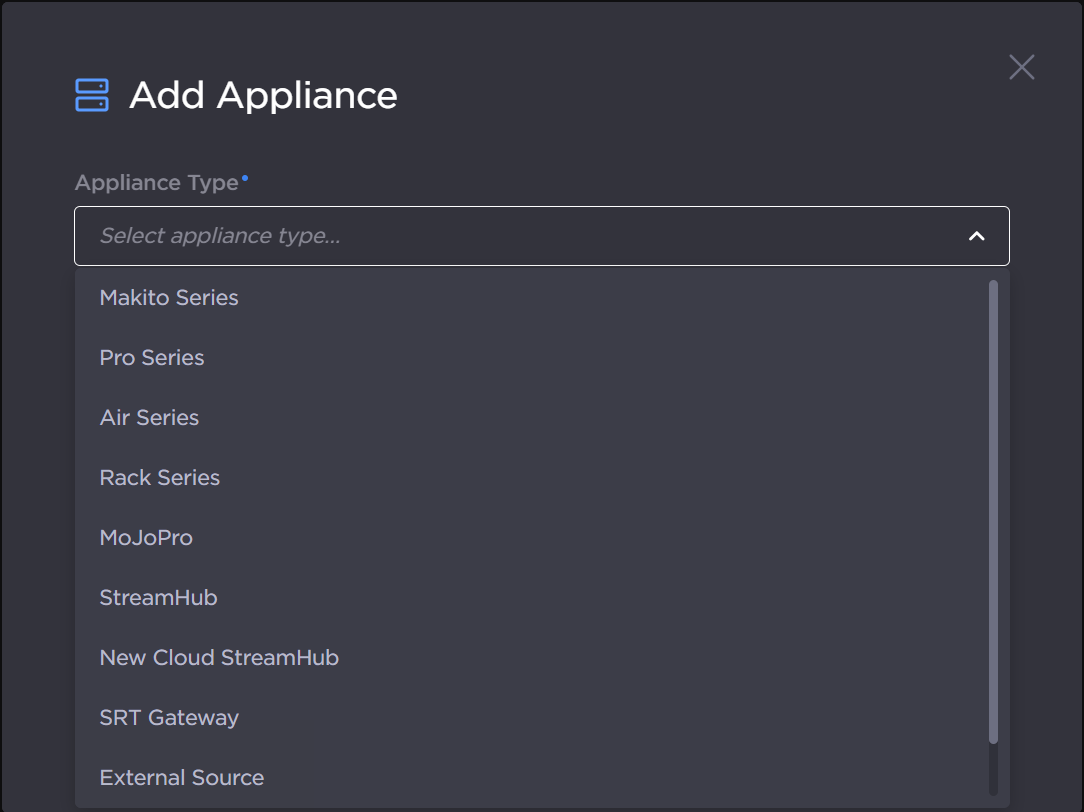

Adding an Appliance

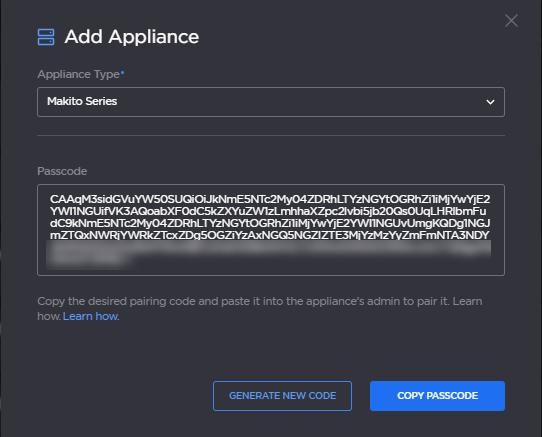

5. For Makito devices, click the Copy Passcode button.



6. Sign in to the Makito web interface as administrator and navigate to Settings > Services. Ensure that EMS is enabled.

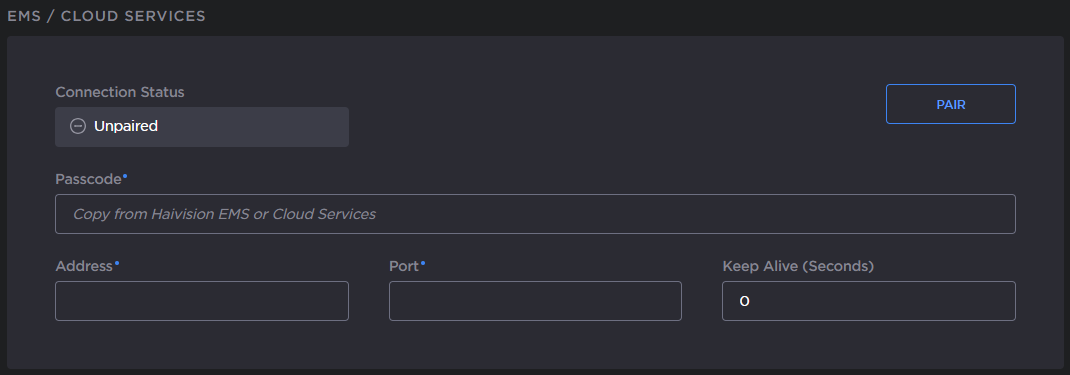

7. In the EMS/Cloud Services section, paste the passcode into the Passcode textbox.



8. The address and port fields are decoded from the Passcode. Therefore, just click the Pair button.

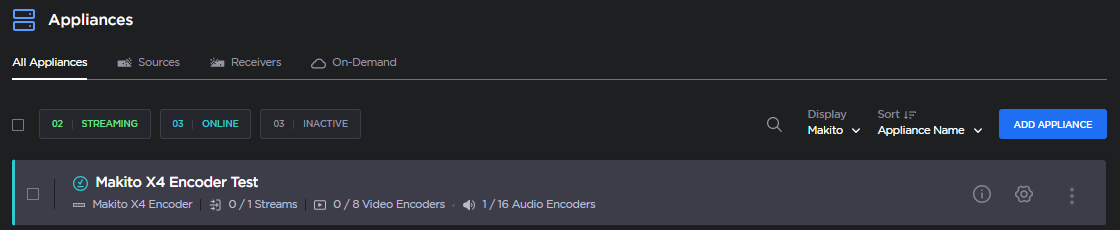

After a few seconds the pairing should succeed and the Makito appliance appears in the list of appliances in Hub 360.

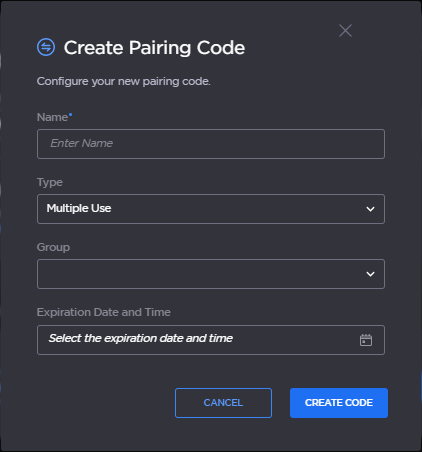

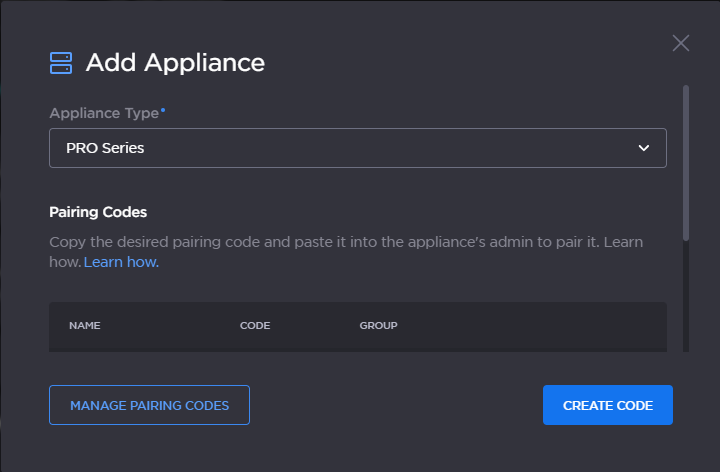

5. For Pro, Air, Rack, and Falkon X2 series devices, first a pairing code must be created on Hub360. If you want to reuse an existing pairing code, skip to step 11. Click the Create Code button.



6. Enter a Name to identify the pairing code.



7. Select the Type: Multiple Use or Single Use.

8. Select the Group from the dropdown list. See Managing Groups for more details.

9. (Optional) Set the code Expiration Date and Time.

10. Click Create Code.

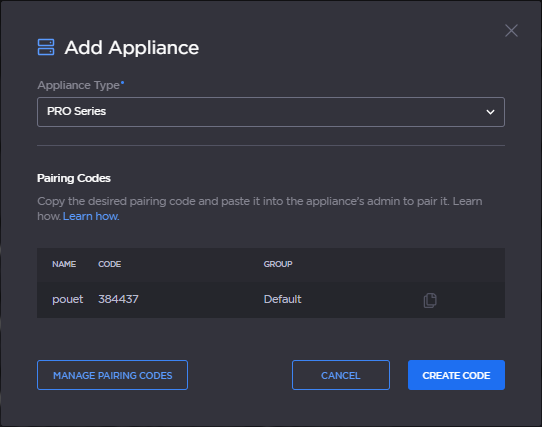

11. When complete, or if a pairing code already exists, click the icon to copy the code to your clipboard.



12. Sign in to the Pro, Rack, Air, or Falkon X2 web interface and navigate to  Streaming > Destination page. Click the Add Profile button.

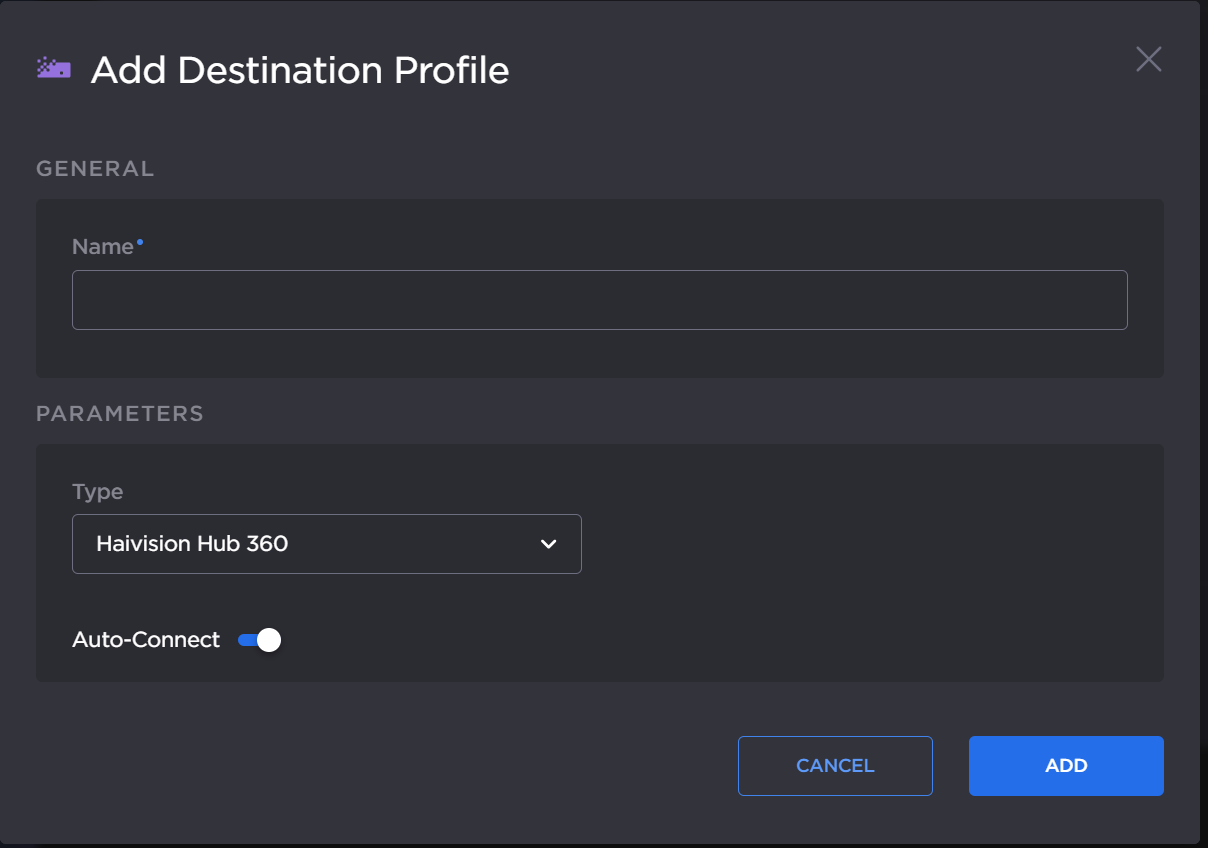

13. Enter a desired Profile name, select Haivision Hub 360 in the Type dropdown, and click the Add button.

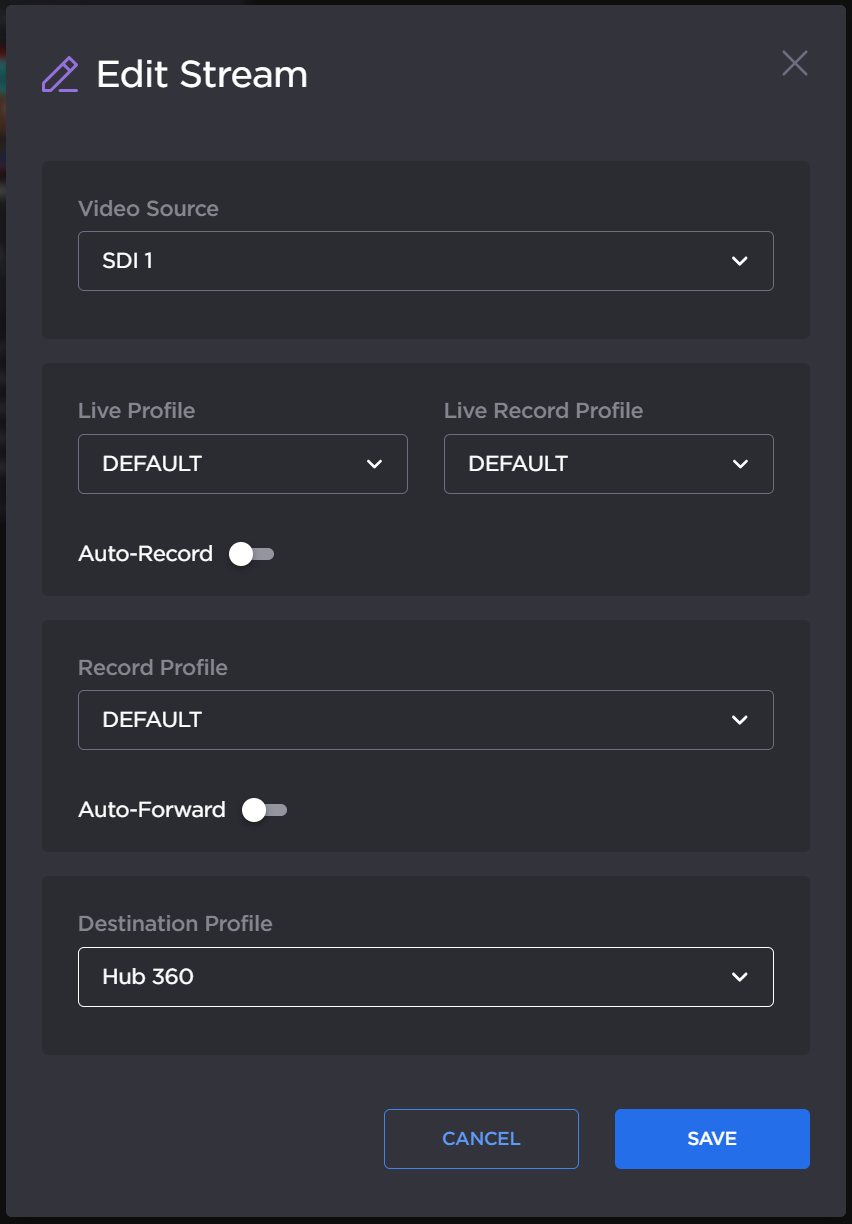

14. Click the icon under each stream and in the Destination Profile dropdown select the profile name you just created.

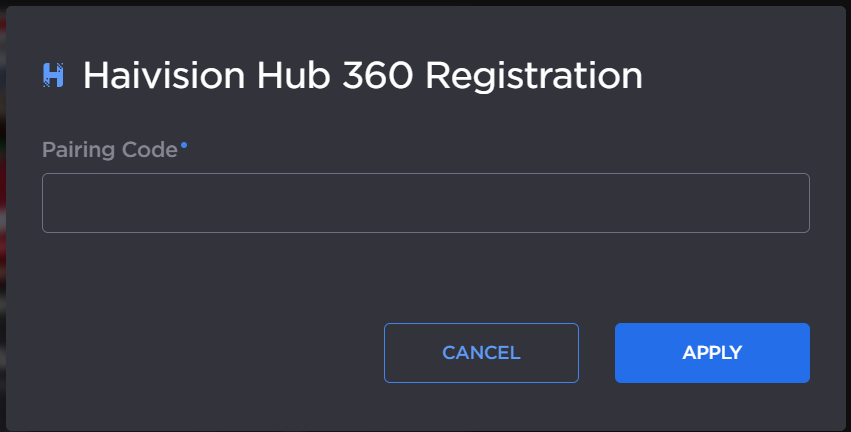

15. Paste the pairing code in the Pairing Code textbox that appears.



16. Click the Apply button.

After a few seconds the pairing should succeed and the transmitter appears in the list of appliances in Hub 360.

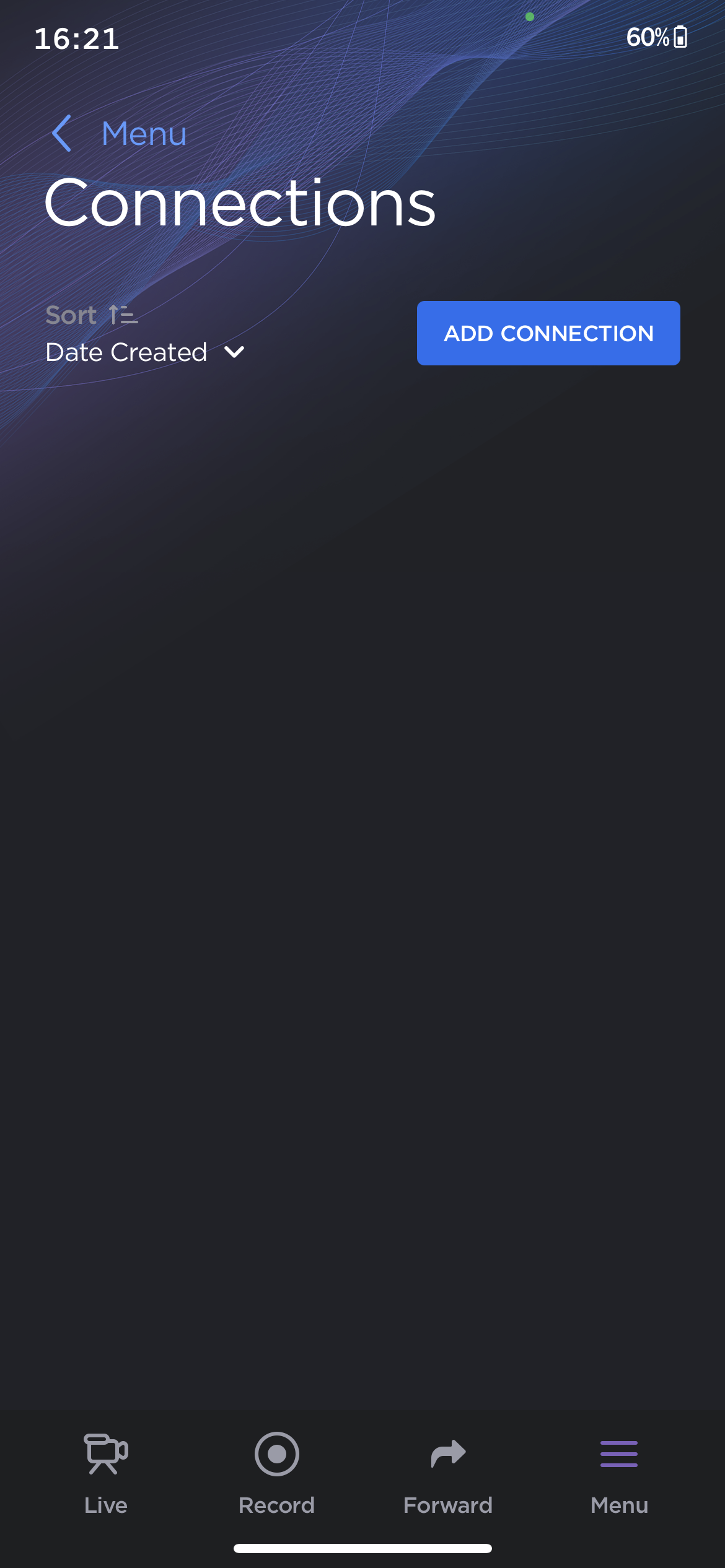

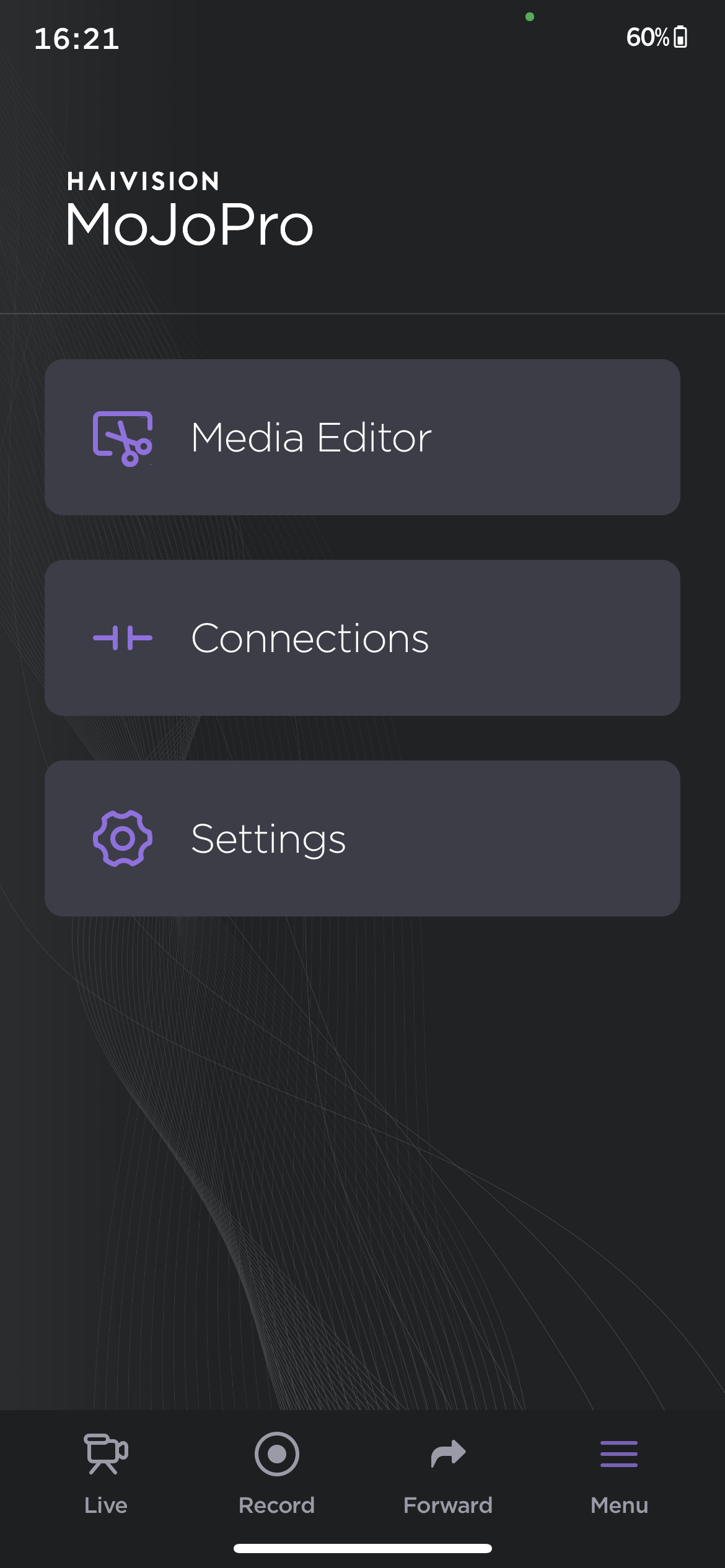

5. In the MoJoPro iOS application, go to Menu > Connections.



6. Tap Add Connection.

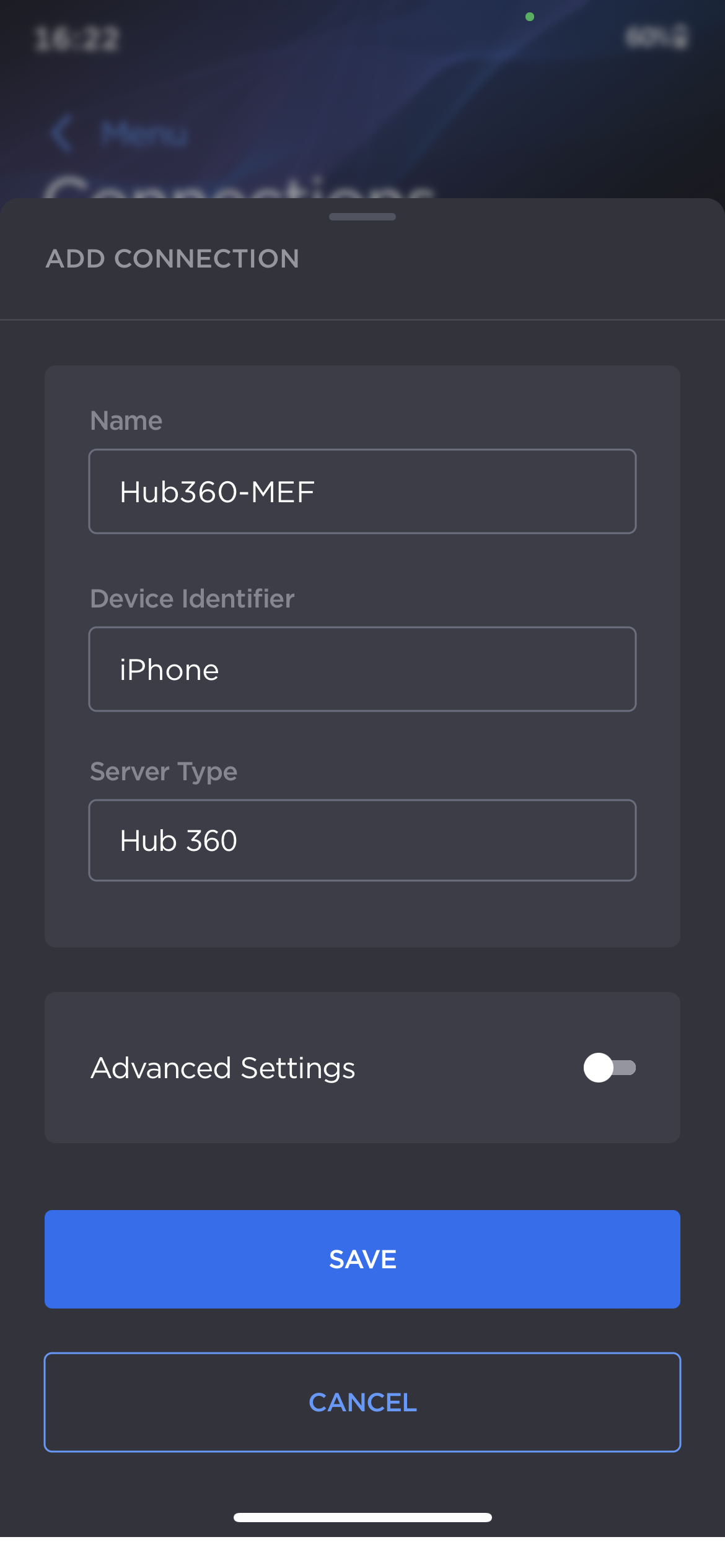

7. Enter a connection name and under Server Type select Hub 360.



8. Tap the Save button.

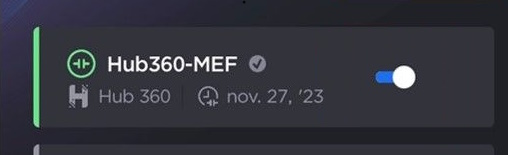

9. Activate the connection by tapping the toggle next to the connection profile.



After a few seconds your MoJoPro device appears in the list of appliances in Hub 360.

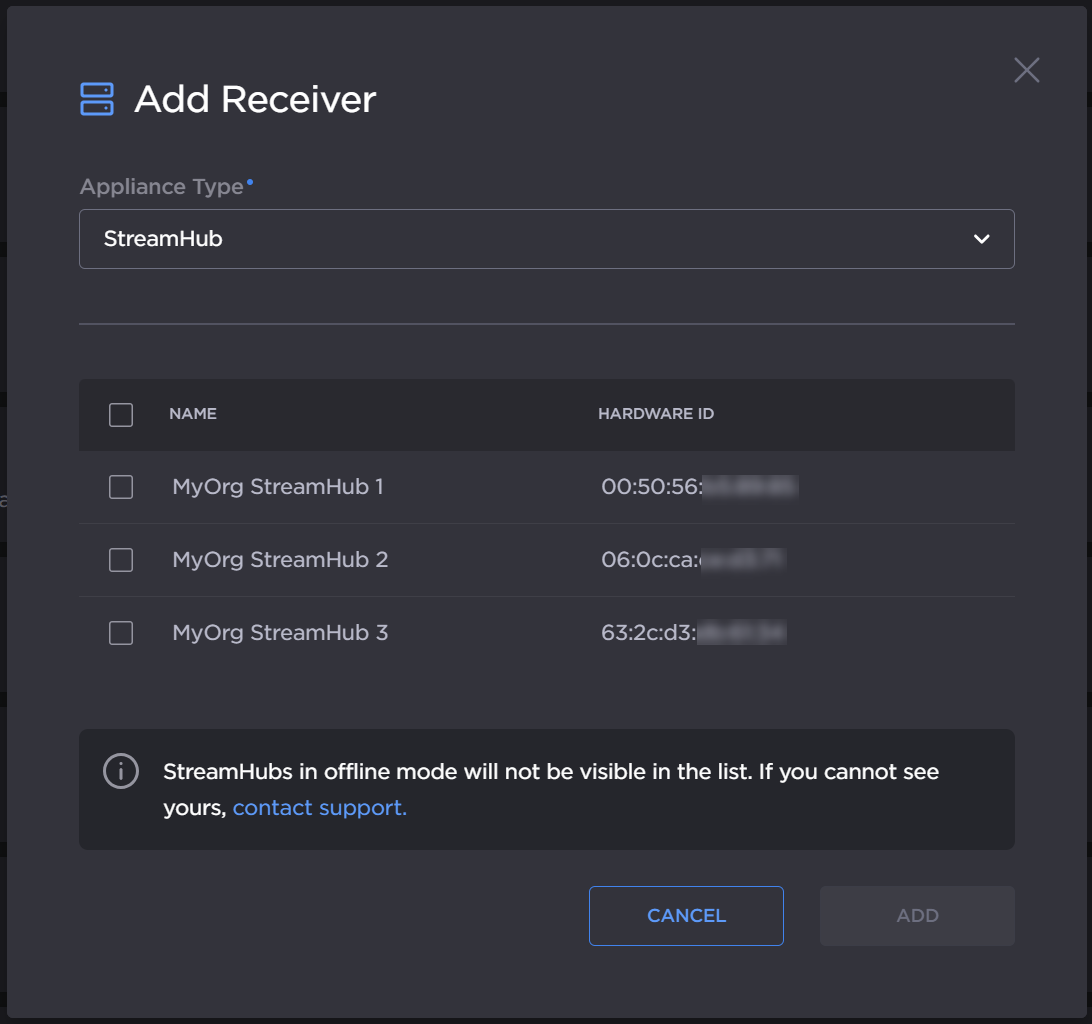

5. For StreamHub devices, select which devices you would like to add from the list of available StreamHubs connected to your organization:



6. Click the Add button.

The selected StreamHubs are added to the list of appliances in Hub 360.

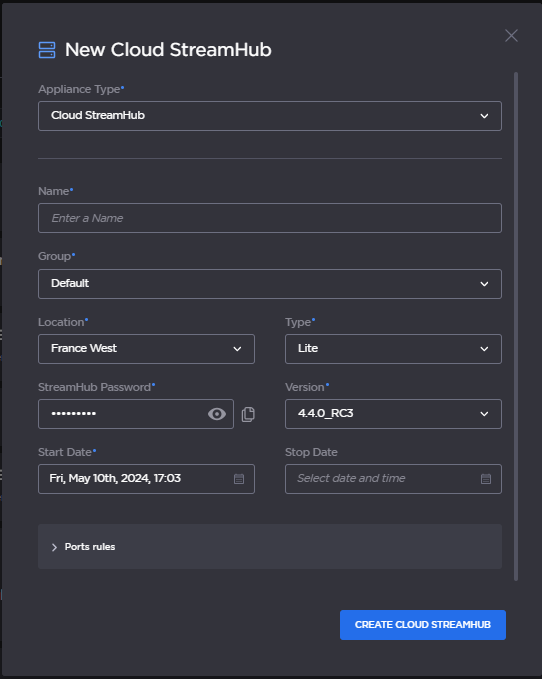

5. To provision a new Cloud StreamHub for your organization, enter the required information:

   • Group dropdown: Assign your Cloud StreamHub to a group. See Managing Groups for more details.

   • Location dropdown: Choose a region near the appliances that will be associated with the Cloud StreamHub.

   • Type dropdown: Select the type of usage you need:

     • Lite: 4 HD decodes or 1 HD transcode

     • Standard: 8 HD decodes or 2 HD transcodes

     • Ultra: 16 HD decodes or 4 HD transcodes

   • Version dropdown: We recommend selecting the latest version.



6. Optionally, set a Stop Date and Time for the provisioning, and configure network port rules.

7. To add port rules:

   1. Click Port Rules to expand the section.

   2. Click Add New Rule.

   3. Enter a name for the rule and the port number, and select TCP or UDP from the Protocol dropdown.

   4. Multiple Custom Rules may be added by clicking Add New Rule, and rules may be deleted by clicking the icon.

8. Click the Create Cloud StreamHub button.

The Cloud StreamHub is added to the list of appliances in Hub 360. It takes a few moments for the Cloud StreamHub to be provisioned and started, which you can monitor in the Appliances list.

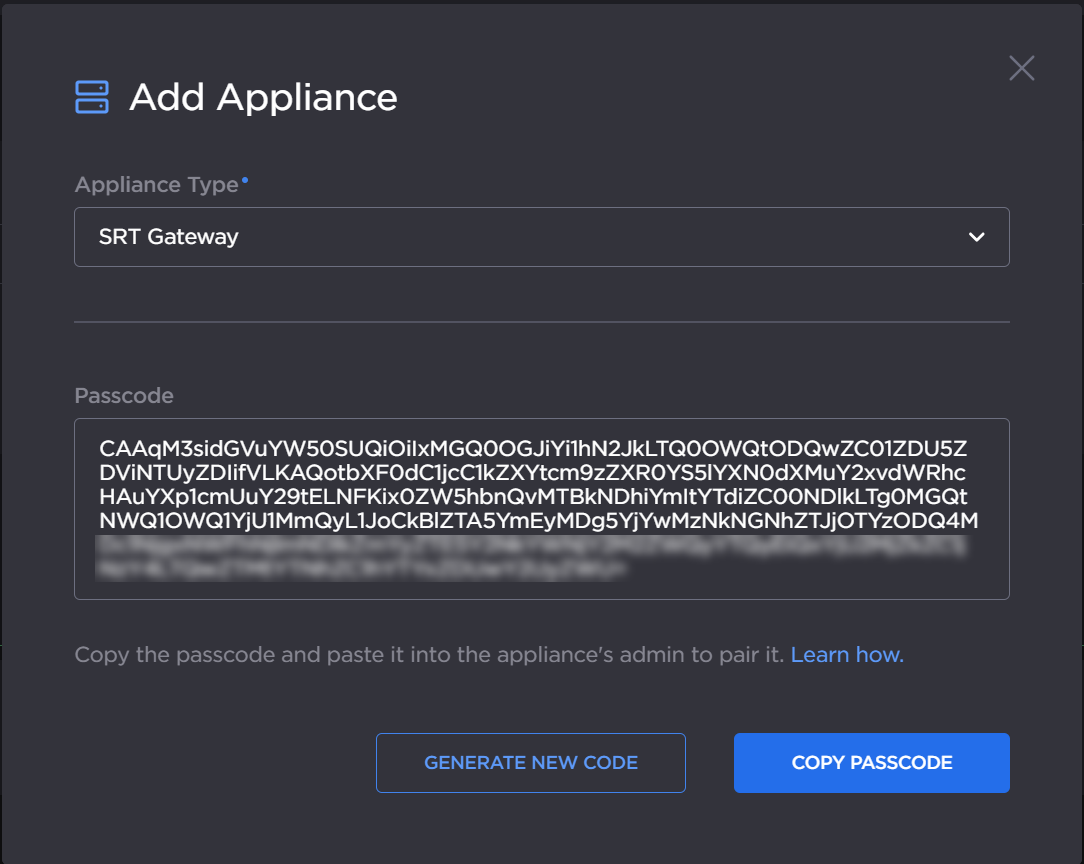

5. For SRT Gateway devices, click the Copy Passcode button.



6. Sign in to the SRT Gateway web interface as administrator and navigate to Administration > Configuration > Haivision Hub. Ensure that Pairing Status is enabled.

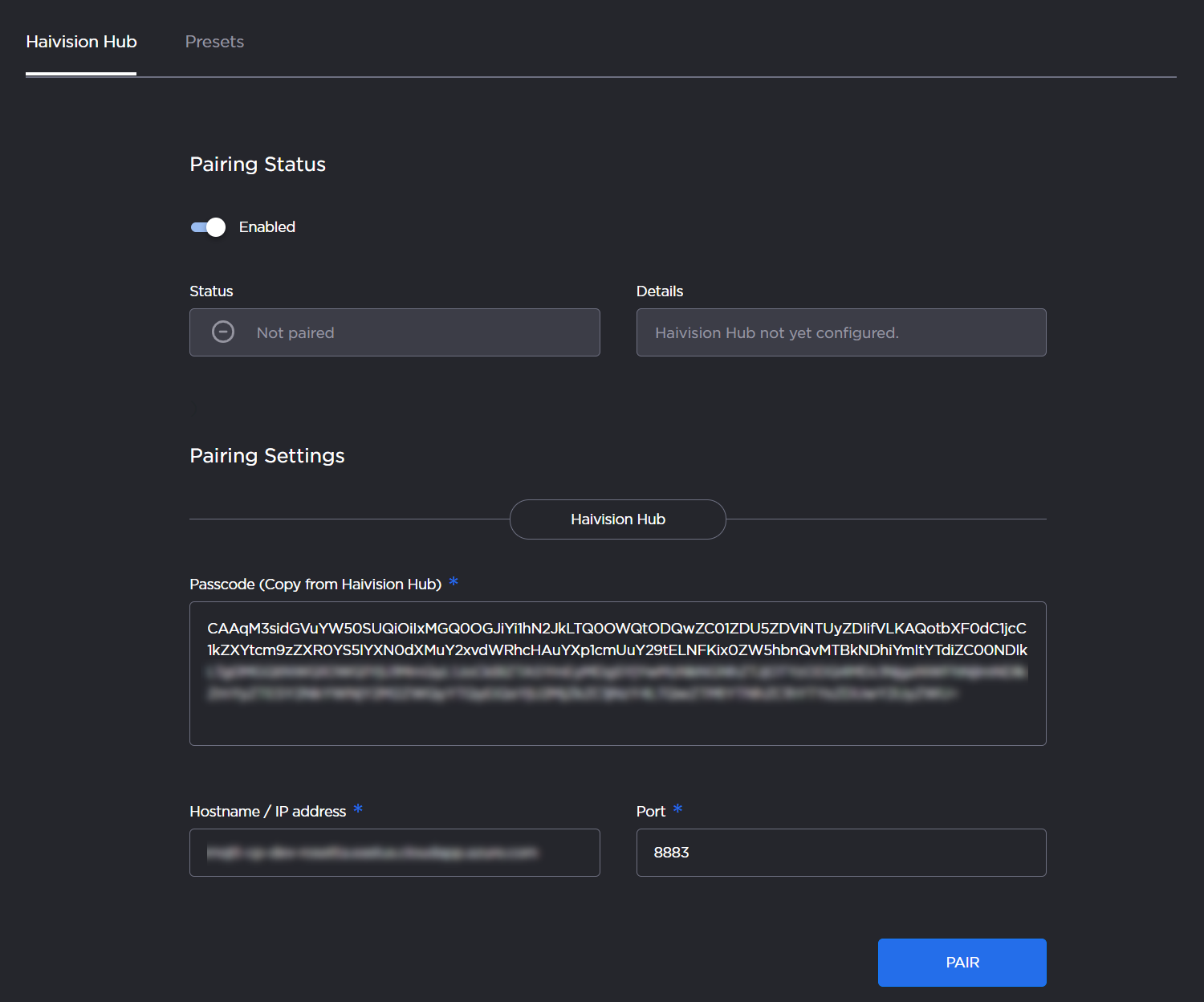

7. In the Pairing Settings section, paste the passcode into the Passcode textbox



8. The address and port fields are decoded from the Passcode. Therefore, just click the Pair button.

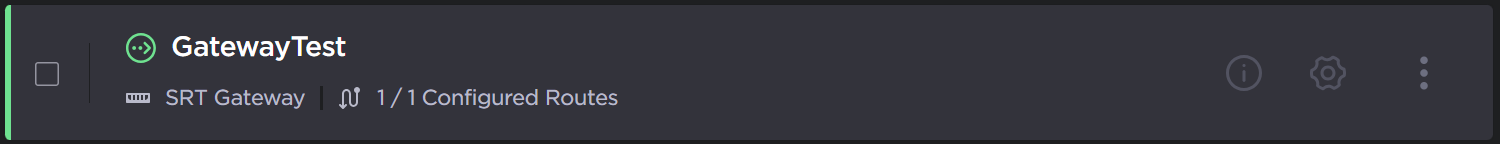

After a few seconds the pairing should succeed and the SRT Gateway appears in the list of appliances in Hub 360.

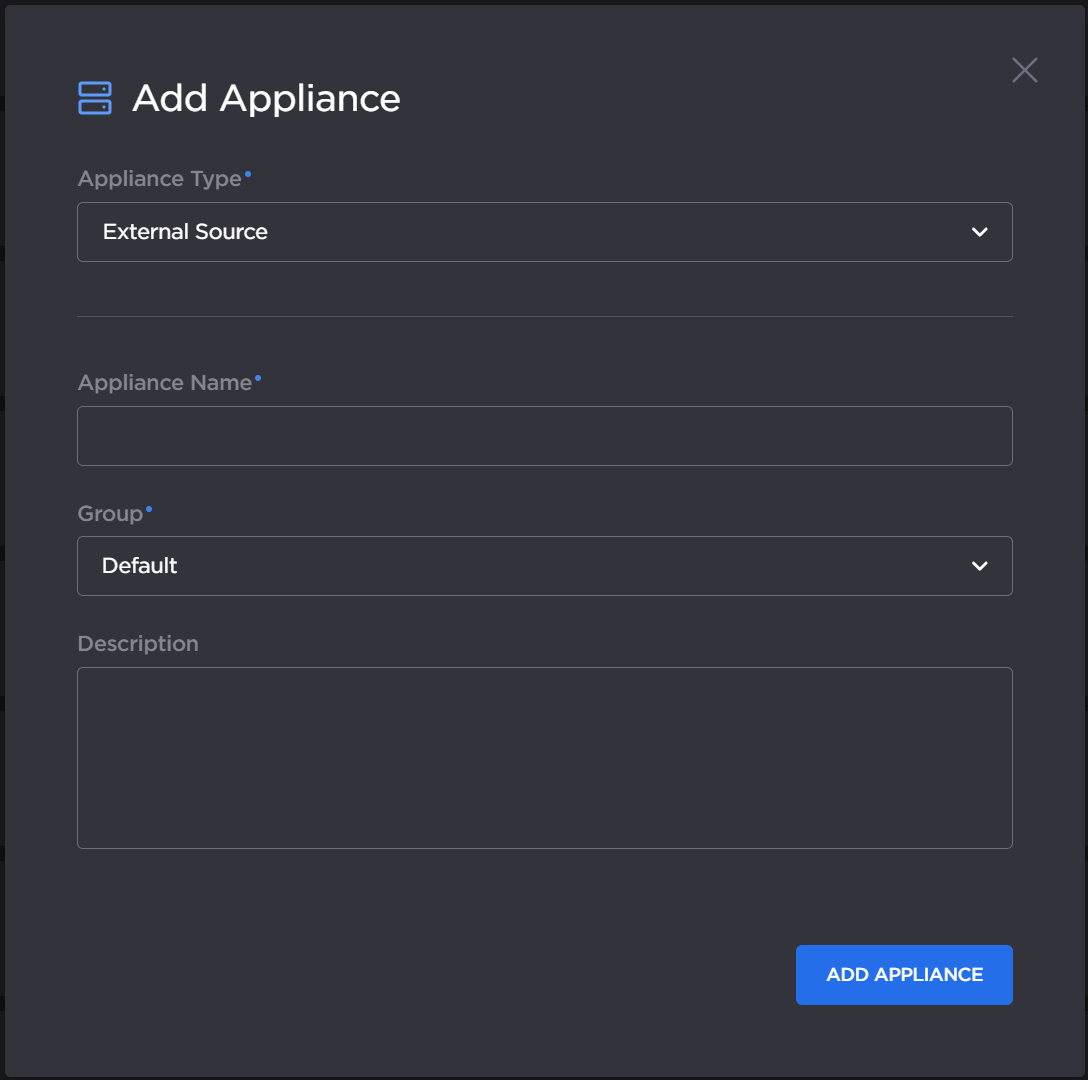

5. To add an external SRT source to your Hub 360 subscription, enter the required information:

   • Appliance Name: Name your new source so that you can find it in your list of your appliances.

   • Group: Assign your source to a group. See Managing Groups for more details.

   • Description: If desired, add a description of your source.



6. Click the Add Appliance button.

The new external SRT source appears in the appliance list. Continue to Viewing and Editing Appliance Details to add the details of the SRT source streams to the appliance.

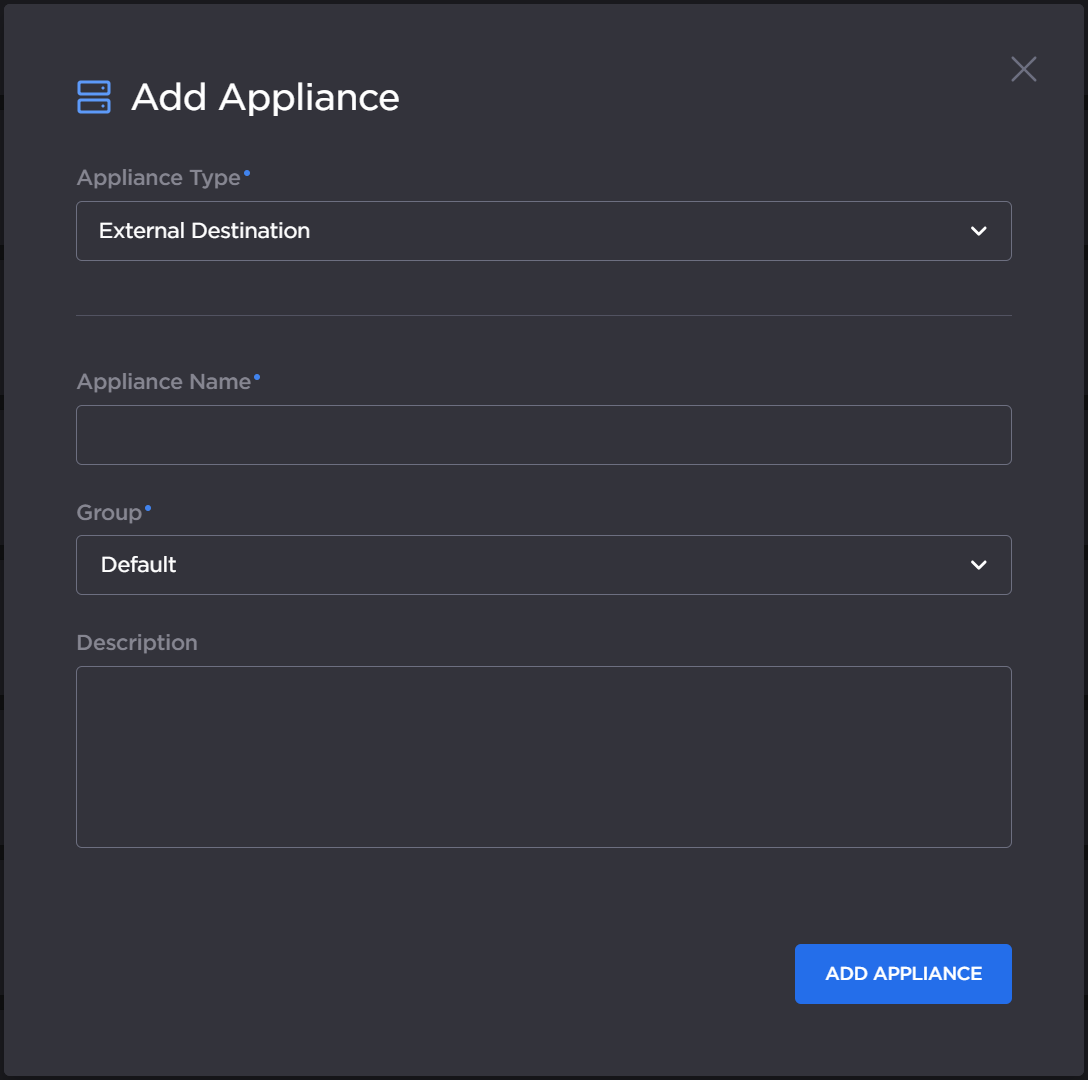

5. To add an external SRT destination to your Hub 360 subscription, enter the required information:

   • Appliance Name: Name your new destination so that you can find it in your list of your appliances.

   • Group: Assign your destination to a group. See Managing Groups for more details.

   • Description: If desired, add a description of your destination.



6. Click the Add Appliance button.

The new external SRT destination appears in the appliance list. Continue to Viewing and Editing Appliance Details to add the details of the SRT destination streams to the appliance.
