Viewing and Editing Appliance Details

The appliances list allows users with the administrator or engineer role to view and edit various details about the connected appliances, including:

View appliance usage status, including encoder/decoder, CPU, temperature, and uptime statistics
View warning messages
Edit appliance name, assigned group, and appliance description

The appliance screen provides a summary of each appliance in the list. The available status items depend on the appliance type:

Makito

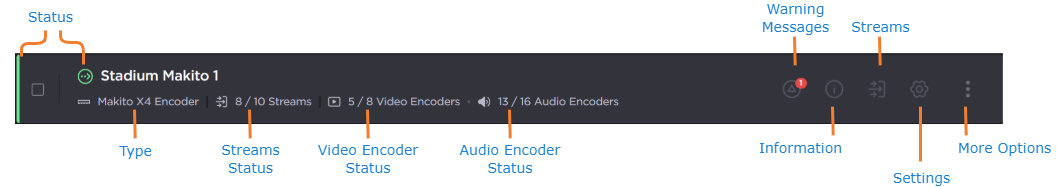

A sample screenshot of a Makito X4 Encoder appliance listing is shown below. Other Makito devices are similar.

Available information shown in the appliance listing includes:

Status color and icon: See the section below for definitions of the various status colors and icons.
Type: Lists the appliance type
Streams Status: Number of running and total streams defined on the appliance.
Video Encoder/Decoder Status: Number of active and total video encoders (or decoders if applicable).
Audio Encoder/Decoder Status: Number of active and total video encoders (or decoders if applicable).
Warning Messages icon: Appears only if a warning message is present. Clicking the icon opens the message panel. See Viewing Warning Messages for details.
Information icon: Clicking the icon opens the information panel for the appliance. See Viewing Appliance Details for details.
Streams icon: (Makito Encoders only) Clicking the icon opens the streams panel for the appliance. See Starting and Stopping Makito Encoder/Decoder Streams and Cores for details.
Settings icon: Clicking the icon opens the appliance settings panel. See Editing Appliance Settings for details.
More Options icon: Clicking the icon opens a menu allowing you to perform various actions on the device. The available options depend on the appliance type and its current status.

Makito Status Indicators

Icon	Description	Definition
	Online	The appliance has started and is online, but there is no stream activity yet.
	Streaming	The appliance has an input or output stream.
	Streaming with Warning	The appliance has an input or output stream but a warning message is present. Click the icon to see the warning message.

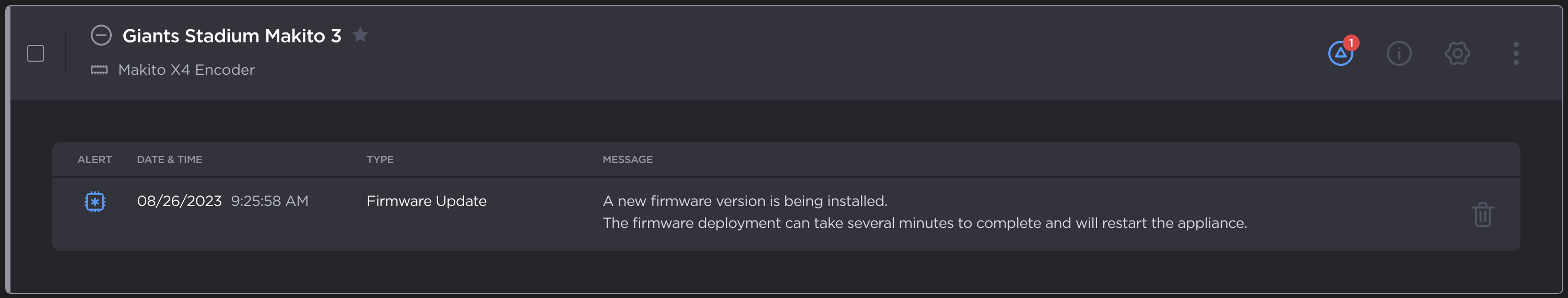

	Offline	The appliance is offline due to a reboot, firmware update, license install, or incompatible firmware. Click the icon to see the reason for the offline status. Makito Offline
	Rebooting	A user has rebooted the Makito appliance.
	Updating	A user has updated the firmware of the Makito appliance. Note The appliance enters the offline state soon after the update process.
	Disabled	A user has disabled Hub control for the Makito appliance.

Tip

During a firmware update or license install, the alerts may be dismissed by clicking the icon next to the alert.

Air, Pro, Rack, Falkon X2, MoJoPro

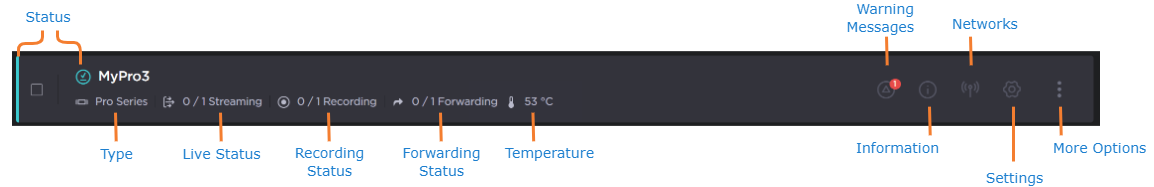

A sample screenshot of a Pro300 appliance listing is shown below. Air, Rack, Falkon, and MoJoPro devices are similar.

Available information shown in the appliance listing includes:

Status color and icon: See the section below for definitions of the various status colors and icons.
Type: Lists the appliance type
Live Status
Recording Status
Forwarding Status
Temperature: The icon color changes when the temperature reaches warning or critical levels.

Note

See Supported Appliances and Versions for required minimum versions required for temperature reporting.

Warning Messages icon: Appears only if a warning message is present. Clicking the icon opens the message panel. See Viewing Warning Messages for details.
Information icon: Clicking the icon opens the information panel for the appliance. See Viewing Appliance Details for details.
Networks icon: Clicking the icon opens the networks panel. See Viewing and Editing Transmitter Networks for details.

Note

The Networks icon is not available if the device is offline.

Settings icon: Clicking the icon opens the appliance settings panel. See Editing Appliance Settings for details.
More Options icon: Clicking the icon opens a menu allowing you to perform various actions on the device. The available options depend on the appliance type and its current status.

Field Units Status Indicators

Icon	Description	Definition
	Online	The appliance has started and is online, but there is no stream activity yet.
	Streaming	The appliance has an input or output stream.
	Offline	The appliance is powered off or connection cannot be established.
	Connecting	Connection is being established with the appliance.
	Disabled	A user has disabled Hub control for the appliance.

StreamHub

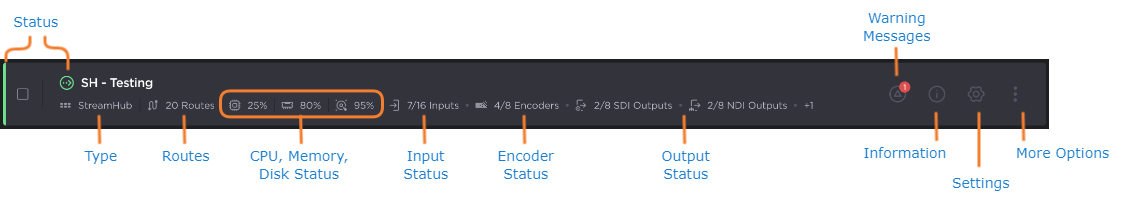

A sample screenshot of a StreamHub appliance listing is shown below. Cloud StreamHub devices are similar.

Available information shown in the appliance listing includes:

Status color and icon: See the sections below for definitions of the various status colors and icons for StreamHub and Cloud StreamHub.
Type: Lists the appliance type.
CPU, Memory, Disk Status: Lists the percent usage for the CPU, memory, and disk space, respectively.
Input Status: Number of running and total inputs.
Encoder Status: Number of active and total encoders.
Output Status: Number of active and total outputs.
Warning Messages icon: Appears only if a warning message is present. Clicking the icon opens the message panel. See Viewing Warning Messages for details.
Information icon: Clicking the icon opens the information panel for the appliance. See Viewing Appliance Details for details.
Settings icon: Clicking the icon opens the appliance settings panel. See Editing Appliance Settings for details.
More Options icon: Clicking the icon opens a menu allowing you to perform various actions on the device. The available options depend on the appliance type and its current status.

StreamHub Status Indicators

Icon	Description	Definition
	Online	The appliance has started and is online, but there is no stream activity yet.
	Streaming	The appliance has an input or output stream.
	Offline	The appliance is powered off or connection cannot be established.
	Connecting	Connection is being established with the appliance.
	Disabled	A user has disabled Hub control for the appliance.

Cloud StreamHub Status Indicators

Icon	Description	Definition
	Scheduling	After adding the new Cloud StreamHub, it is added to the list of appliances and starts the schedule process.
	Scheduled	After the appliance is scheduled, you can see the date and time it is programmed to be started. Tip You may manually start the appliance prior to the scheduled time if desired.
	Connecting	When the programmed start date and time arrives, the Cloud StreamHub starts to connect.
	Starting/Resuming	The Cloud StreamHub starts either automatically at the scheduled date & time or manually if the user clicks the start icon.
	Running	The Cloud StreamHub has started and is online, but there is no stream activity yet.
	Streaming	The Cloud StreamHub has a streaming input or an output receiving a stream.
	Stopping	After clicking stop or delete, or the Cloud StreamHub is programmed to be deleted and is stopping.
	Stopped/Paused	After clicking stop and the Stopping status completes or after clicking delete and prior to the Cloud StreamHub being removed from the appliance list.

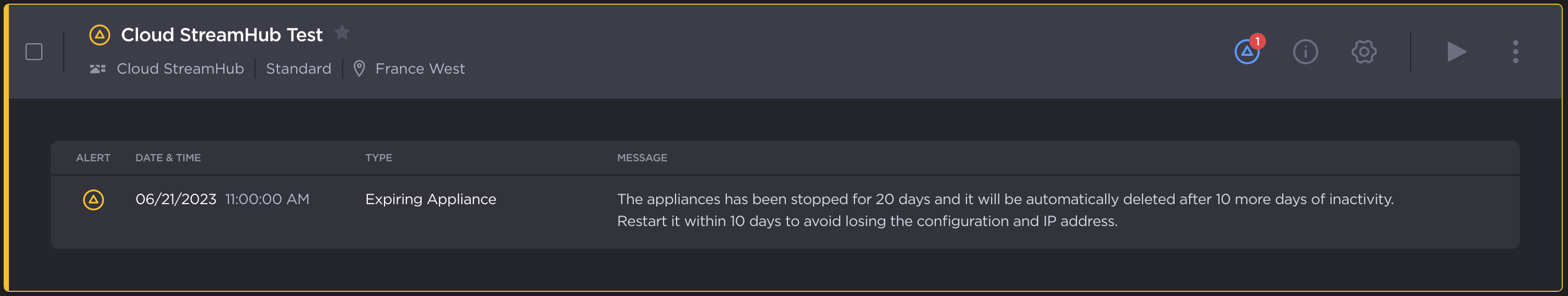

	Warning	Cloud StreamHubs change their status to a warning 10 days before being automatically deleted. Click the icon for more details.
	Disabled	A user has disabled Hub control for the Cloud StreamHub.
	Updating	A user has changed the Cloud StreamHub version.
	Error	There is an error starting the Cloud StreamHub or a problem occurred.

SRT Gateway

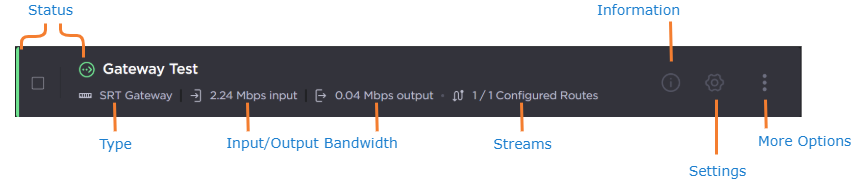

A sample screenshot of an SRT Gateway listing is shown below:

Available information shown in the appliance listing includes:

Status color and icon: See the section below for definitions of the various status colors and icons.
Type: Lists the appliance type.
Input/Output Bandwidth: Current network bandwidth of the SRT Gateway.
Route Status: Number of running and total routes configured on the SRT Gateway.
Information icon: Clicking the icon opens the information panel for the appliance. See Viewing Appliance Details for details.
Settings icon: Clicking the icon opens the appliance settings panel. See Editing Appliance Settings for details.
More Options icon: Clicking the icon opens a menu allowing you to perform various actions on the device. The available options depend on the appliance type and its current status.

SRT Gateway Status Indicators

Tip

The number of status types is limited in this initial support of SRT Gateway.

Icon	Description	Definition
	Streaming	The appliance has an input or output stream.
	Offline	The appliance is offline.
	Rebooting	A user has rebooted the SRT Gateway.

External Source & Destination

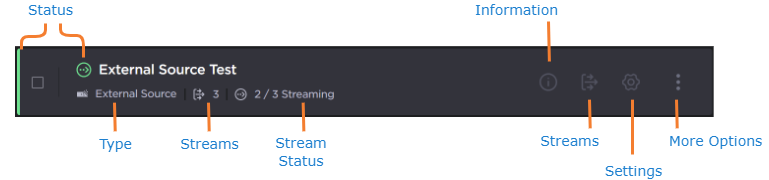

A sample screenshot of a External Source appliance listing is shown below. The External Destination is similar.

Available information shown in the appliance listing includes:

Status color and icon: Since the status of External Sources and Destinations cannot be determined, the status color is always green.
Type: Lists the appliance type.
Streams: Number of configured SRT streams.
Stream Status: Number of running and total streams.
Streams icon: Clicking the icon opens the streams panel. See Adding and Editing Streams on External Appliances for details.
Information icon: Clicking the icon opens the information panel for the appliance. See Viewing Appliance Details for details.
Settings icon: Clicking the icon opens the appliance settings panel. See Editing Appliance Settings for details.
More Options icon: Clicking the icon opens a menu allowing you to perform various actions on the device. The available options depend on the appliance type and its current status.

See the following sections for more details:
