The Appliances screen allows you to manage and control your connected Haivision devices (encoders, decoders, transmitters, and receivers).

Filtering the Appliance List

To help manage a long list of appliances, there are a variety of options for filtering the list:

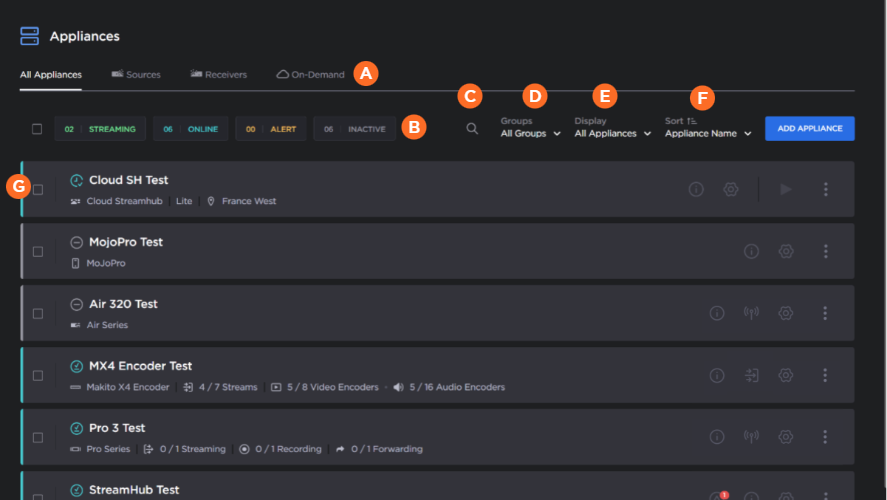

	The tabs along the top of the screen allow you to view only the sources, receivers, and cloud appliances in the appliance list.
	The appliance status buttons (streaming, online, alert, or inactive) can be used to filter the appliance list.

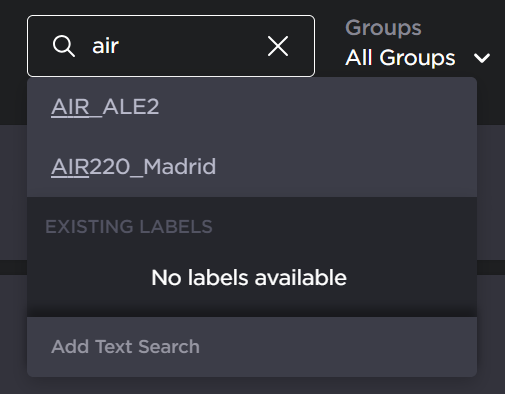

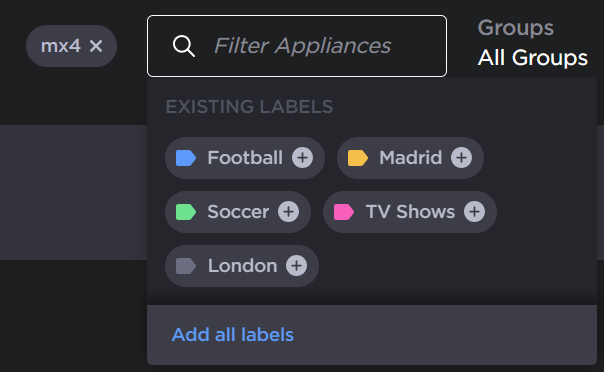

	Clicking the button opens a text box to search the list for various appliance information (see the following note). Select an appliance label or type a string in the text box. Search Appliances Note As you type in the search text box, the list of appliances and labels in the search dropdown updates in real-time. However, this only searches the appliance and label names. Select the desired appliance or label from the dropdown. After typing and pressing Enter, the following fields are searched: appliance name, type, family, hardware identifier (transmitters and StreamHubs), serial number (transmitters and Makitos), MAC addresses (Makitos), firmware version, description, group name, hostname, IP addresses (Makitos and StreamHubs), variant (StreamHubs), labels, and SIM ID (ICCID, EID or IMSI) for transmitters. For each additional string or label you enter an AND operation is performed by the search.

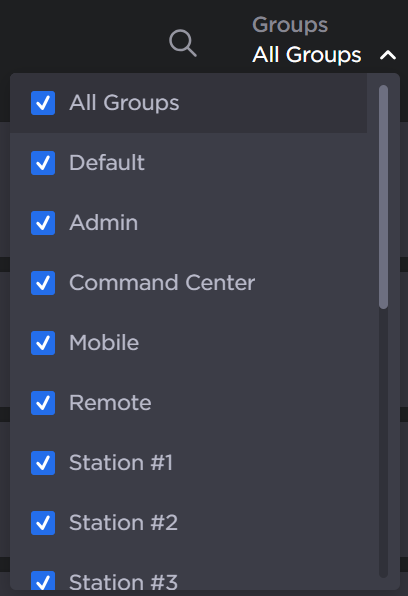

	The Groups dropdown allows you to filter the list by the groups to which the appliances are assigned. Groups dropdown

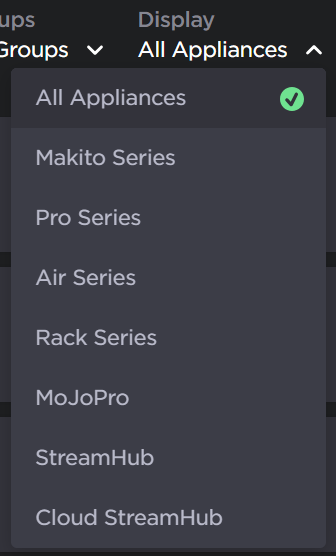

	The Display dropdown allows you to filter the list by the appliance type. Display dropdown
	The Sort dropdown allows you to sort the list by appliance name, type, or status. The sort order can also be defined. Sort dropdown
	Each paired appliance is shown in the list. See Viewing and Editing Appliance Details for details about what information appears for the appliances.

See Managing Your Appliances for more details of using this screen.
