Workflows Screen

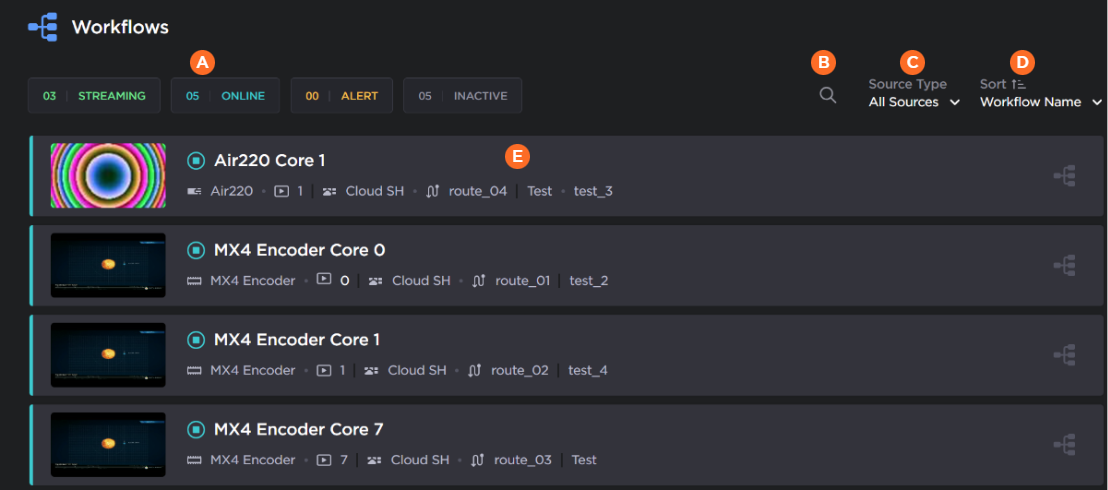

The Workflows screen provides you with a read-only screen of all routes created on Hub 360.


Filtering the Workflows List

To help manage a long list of routes, there are a variety of options for filtering the list:

A

The route status buttons (streaming, online, alert or inactive) can be used to filter the workflows list.

B

Clicking the  Search button opens a text box to search the list for various route information (workflow, source, or route names, etc.).

C

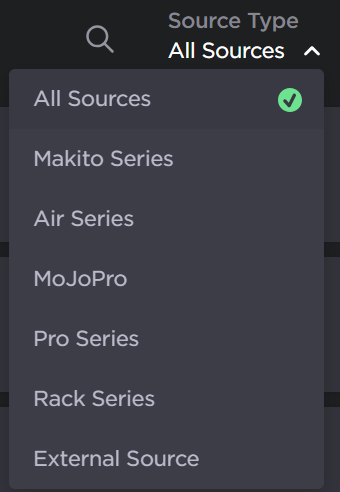

The Source Type dropdown allows you to filter the list by the source appliance type.

Source Type dropdown
Source Type dropdown

D

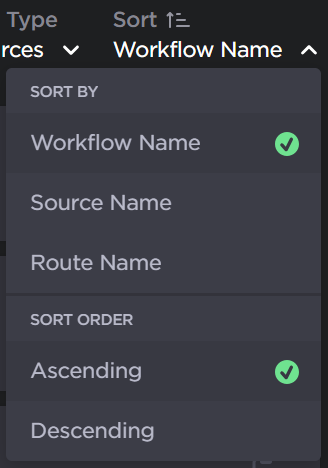

The Sort dropdown allows you to sort the list by workflow name, source name, or route name. The sort order can also be defined.

Workflow Type dropdown
Workflow Type dropdown

E

Each route is shown in the list based on the filters applied.

See Viewing Your Workflows for more details of using this screen.
