Selecting a Destination Profile

To select a destination Profile from the Unit Panel or from the Web Interface, see the tabs below.

Note

For single-encoding mode only. To select a Destination Profile in multi-encoding mode, see (4.1) Starting a Live (MultiMode) .


Unit Panel

  1. From the Home menu, tap Settings icon > AR_profiles_destination.png .

  2. Tap Arrow Down icon until the desired profile is displayed.

  3. Tap _avi_Unit_Not_Selected.png to select the destination profile. Its icon turns to a green dot ( Green icon ) to indicate it is the currently selected profile.

Web Interface

  1. From the Dashboard, in the Streams section, click the Settings icon icon. The encoder's current settings appear:

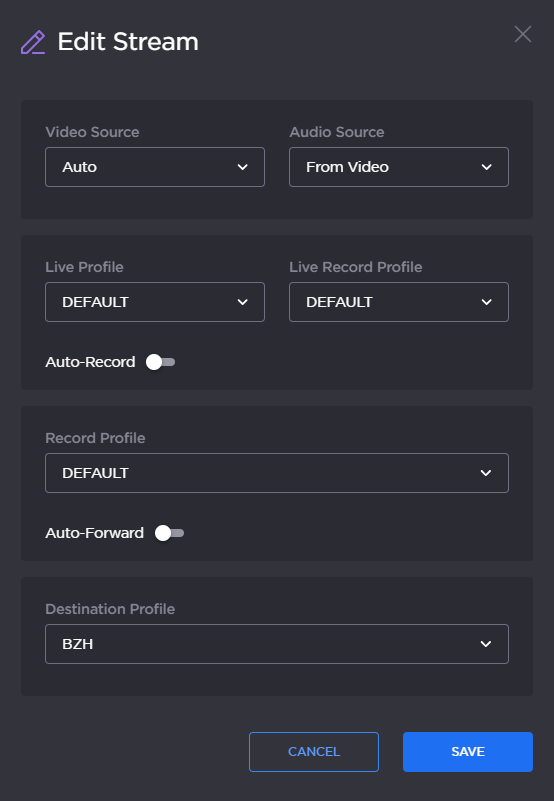

    Edit Stream dialog
    Edit Stream dialog

  2. Select a pre-defined profile in the Destination Profile dropdown.

Tip

If none appear, see (4.1) Adding a Destination Profile to add a profile.

  1. Click the Save button.
