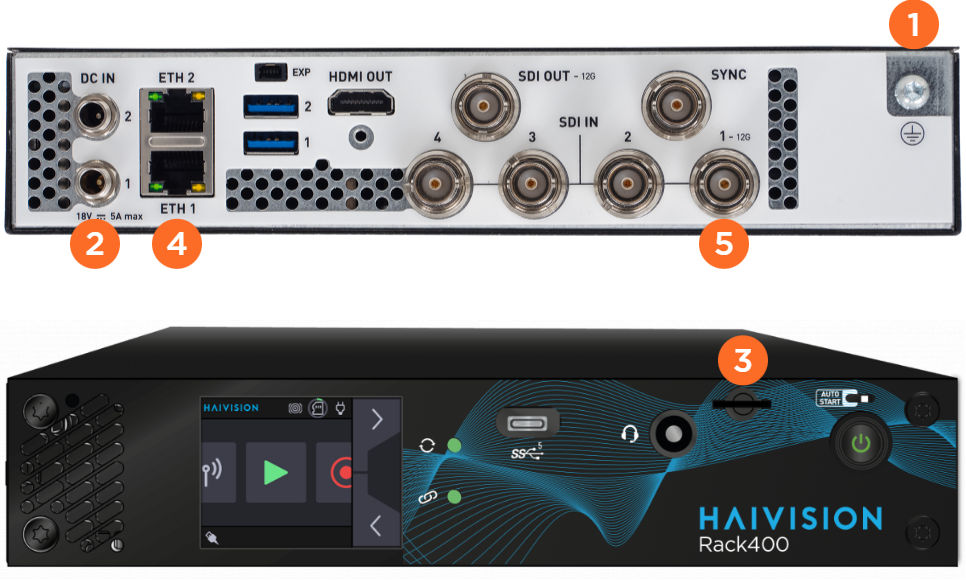

Follow the steps outlined below to install the unit. The labels in the subsequent image indicate the step numbers.
-
Connect the Protective ground terminal.
Caution
The Protective ground terminal must be connected to the Rack ground pin. This pin must be connected to the safety ground.
-
Connect the AC/DC adapter and the power cable.
-
Insert a microSD card (if not already installed).
Note
It is recommended to use FAT 32 or exFAT formats and class 10 microSD card.
-
For Ethernet transmission, connect the Ethernet cable to Ethernet (ETH) 1.
Note
DHCP is the default operating mode for Ethernet 1.
-
Connect the video input cable to SDI 1.
