The unit front panel allows you to:

Configure the unit
Start/stop live
Start/stop record
Forward stored files
Edit various unit settings

The Home Menu provides easy access to each option:

Settings menu
Configuring Network Interfaces
Start a Live
Start a Record
Forward Stored Files
Configuring Data Bridge

The Settings Menu provides the following icons:

Mission Configuration (Optional)
Input/Output Settings
Network Settings
Destination Profiles
Live Profiles
Record Profiles
Forward Settings
SD Card Management
Device Settings
Device Information

Status Bar

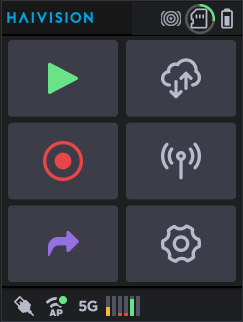

On the front panel the status bars on the top and bottom of the panel, icons indicate the unit state. For example:

Available icons and their meanings are shown in the following table.

Status Icon	What it means
	Ancillary data present.
	Bars Pattern selected.
	Black Pattern selected.
	Circles Pattern selected.
	Cellular connections and their signal levels.
	Data bridge enabled/disabled. See (4.1) Configuring a Data Bridge.
	Ethernet connections.
	HDMI input selected but no received stream.
	HDMI input selected receiving a stream.
	Intercom communication with master room. See (4.1) Using the Intercom.
	Live at startup (if enabled). See (4.1) Enabling/Disabling Auto-Live at Startup.
	Location (if enabled). See (4.1) Enabling/Disabling the Unit Location.
	Missions selected if the unit is linked with a Manager supporting the Story Centric Workflow. See (4.1) Selecting a Story.
	One or two USB keys and the memory space used.
	SD card detected and memory space used.
	SD card in Hot Folder. See (4.1) Transmitting Files via the Hot Folder.
	SD card locked. Add, change or remove content on the card cannot be done if locked. Remove SD card and slide the Lock switch on the side of the card.
	SDI input selected but no received stream.
	SDI input selected receiving a stream.
	Unit connected to power supply.
	Video Return enabled and receiving a stream. See (4.1) Receiving a Video Return.
