From the Input Essence Detail View, you can create and configure ST 2110 media essence inputs. For each input, you need to select the Media Type – either video, audio or ancillary data – as well as the Input number (1...4). The encoder supports running four (4) inputs of each Media Type at the same time.
To configure Input parameters:

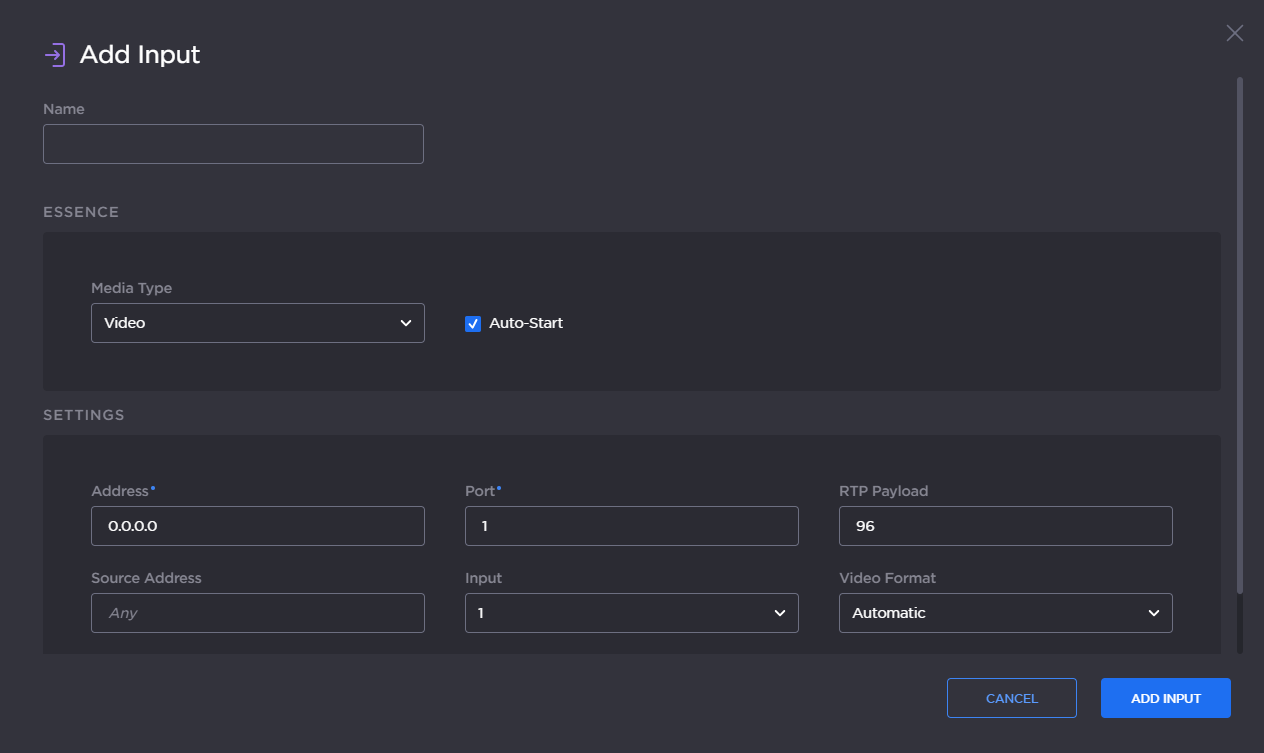

From the Inputs List View, click the Settings icon on an existing input, or click the Add Input button to add an input. The Input Essence Detail View opens. By default, the Media Type is Video.

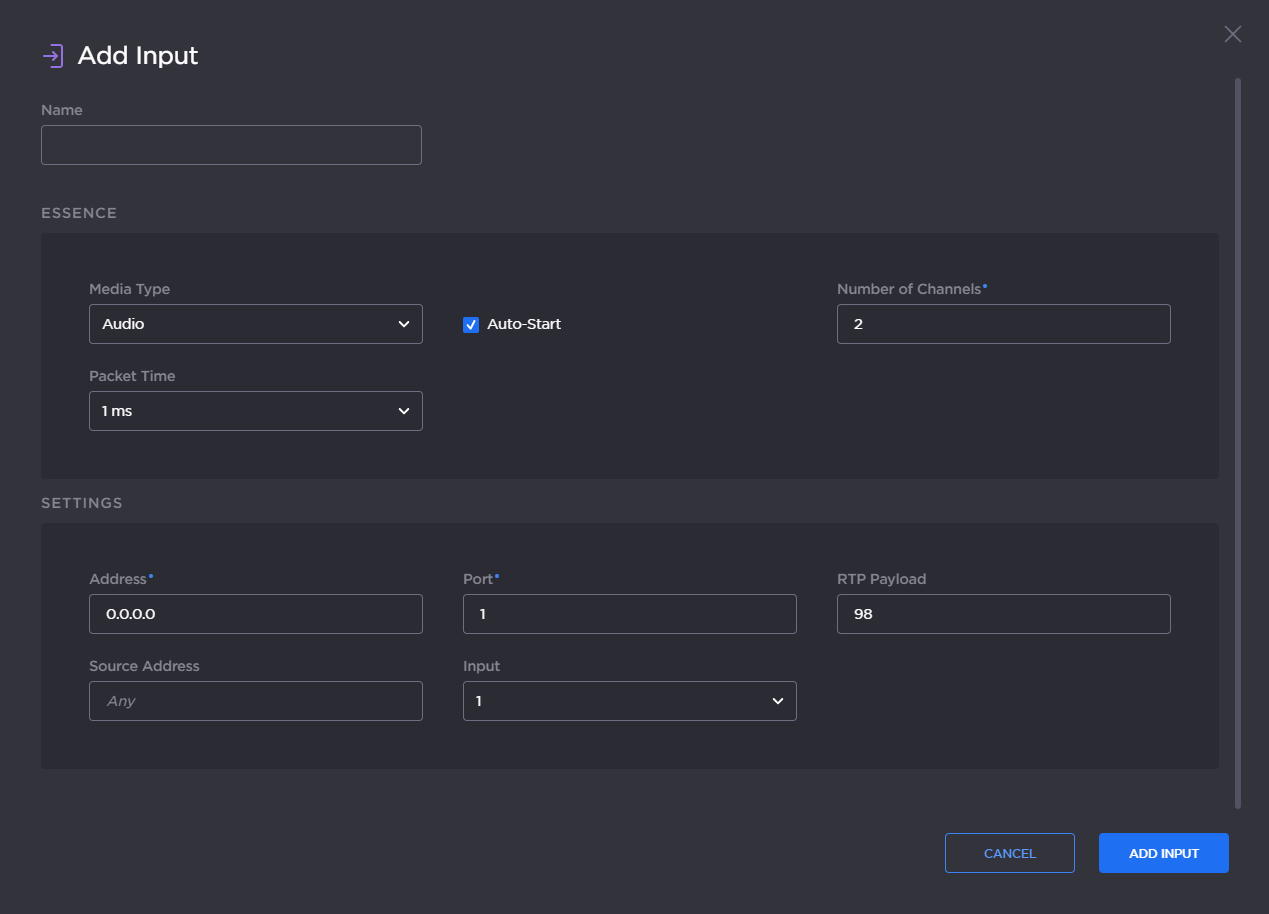

To create an audio essence, select Audio for the Media Type.

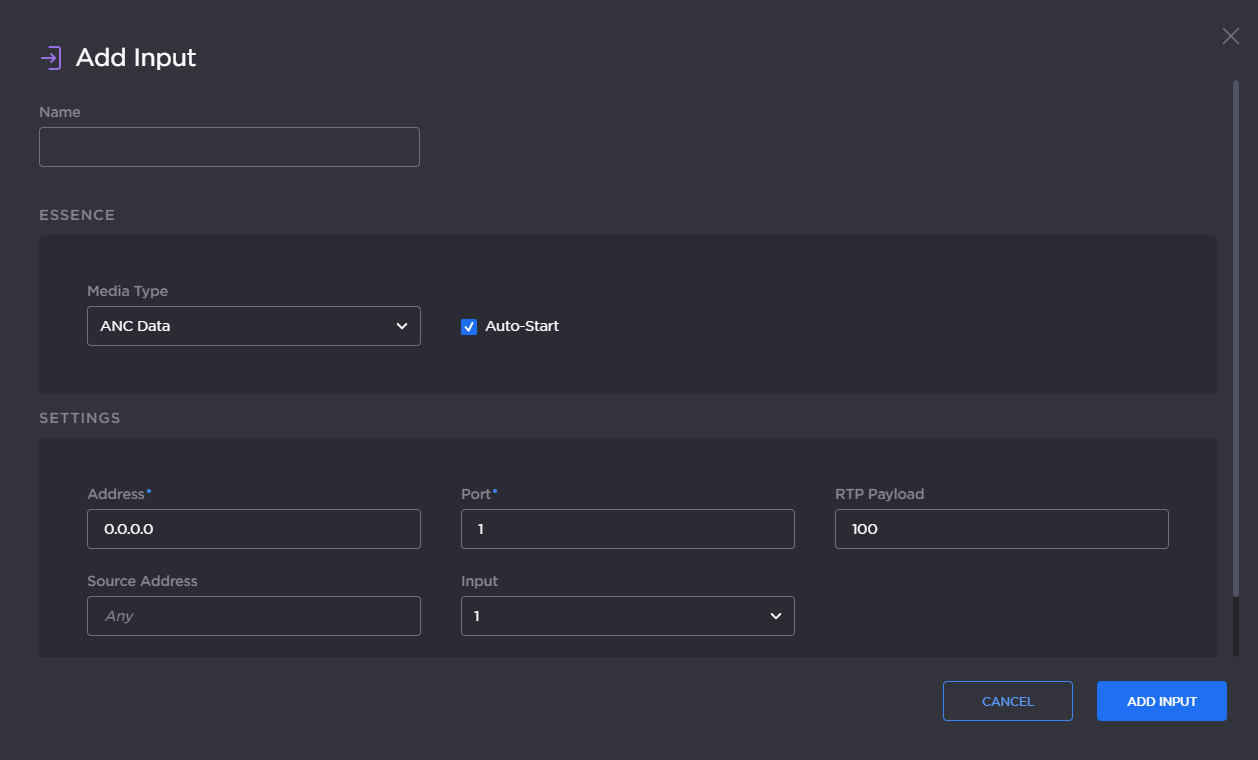

To create an ancillary data essence(such as subtitling or closed captioning), select ANC Data for the Media Type.
Fill in the IP Address and UDP Port of the media essence, RTP Payload, and (optional) Source Address. See ST 2110 Input Settings.
Select the Input number for the essence (1...4). Only one essence of a given media type can be started using the same input.
Video Essences:
Select the Video Format.
Audio Essences:
Enter the Number of Channels and select the Packet Time.
Click Add Input to apply your changes and start the input.

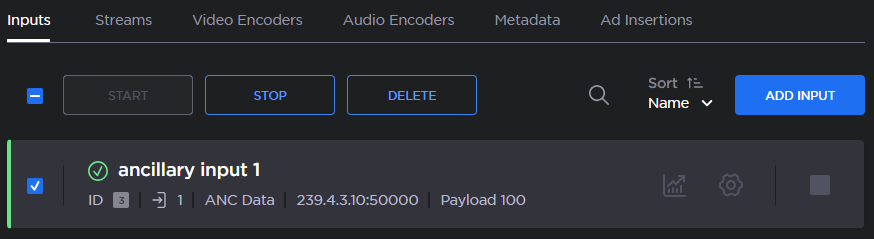

To start or stop the input, check the checkbox of the selected input and click Start or Stop, or click the Start/Stop icon /(as applicable).
To view or reset input statistics, click the Statistics icon . For details, see ST 2110 Input Statistics.
