Makito X1 Rugged Encoder

MX1 Rugged v2 (#S-MX1E-R-V2-SDI1)

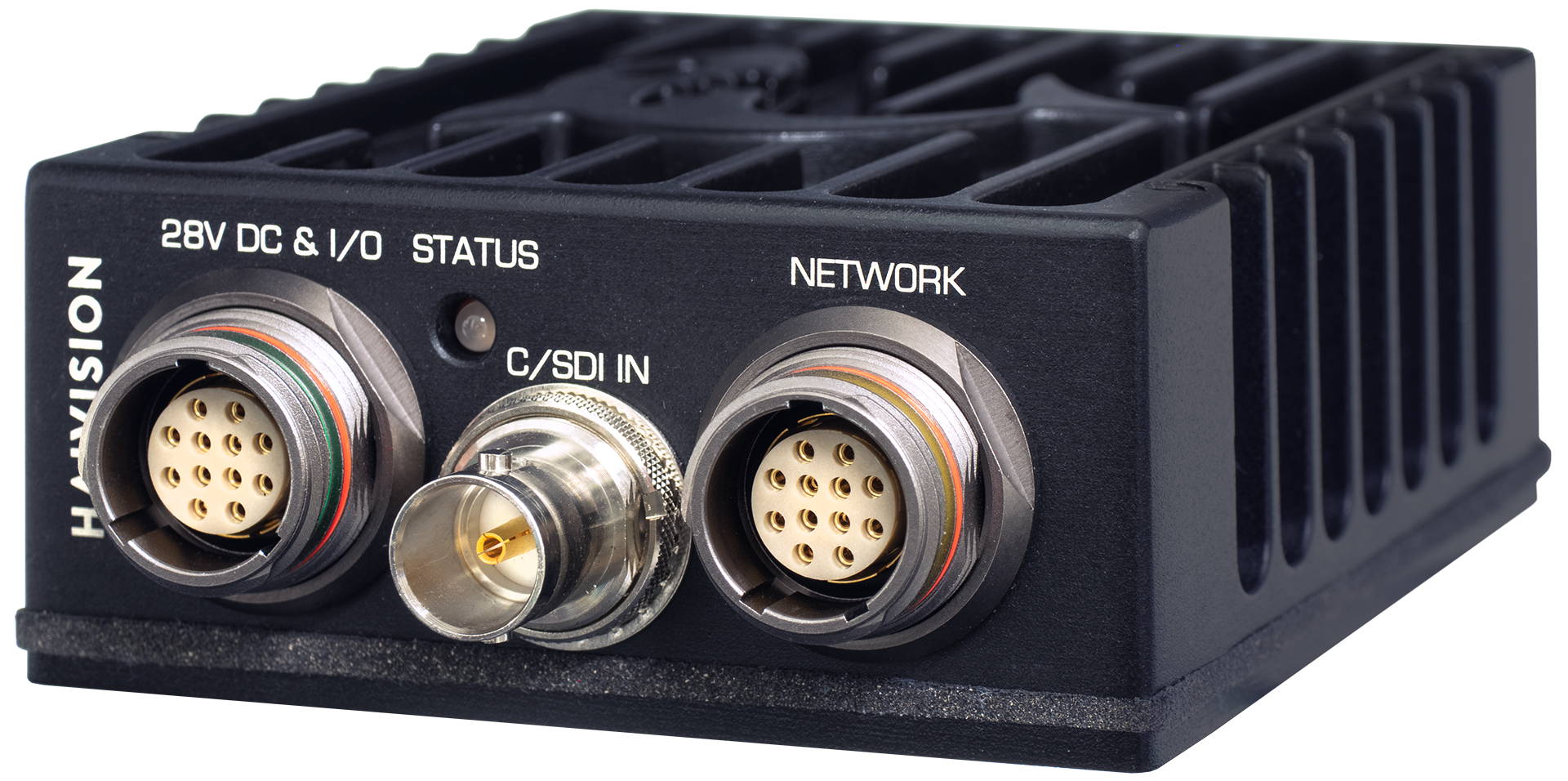

MX1 Rugged v2 (28V DC)

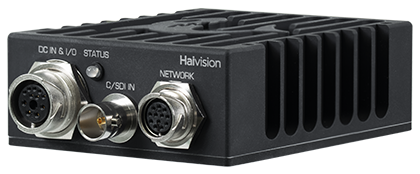

MX1 Rugged (#S-MX1E-R-SDI1)

Welcome to the documentation for the Makito X1 Rugged Video Encoder. The Makito X1 is an ultra-compact H.265/HEVC and H.264/AVC low latency encoder for real-time streaming of MISB/JITC-compliant full motion video in demanding ISR environments.

If this is your first time visiting, please see How to Use the InfoCenter for tips and tricks for browsing the site.

What's New for 1.3


The Makito X1 Rugged Encoder series now includes an additional model with a 28VDC input (#S-MX1E-R-V2-28V-SDI1-ISR). This model is MIL-STD-704 compliant.

See the Makito X1 Rugged Encoder 28 Volt Installation Guide

More Resources

Available Documentation



Important Notice

Includes default credentials and network settings. Postcard shipped with the appliance or available through the Download Center on the Haivision Support Portal.

User's Guide

Explains how to configure and manage the Makito X1 Rugged Encoder to stream audio, video, and metadata to a compatible decoding device, using either the Web interface, the Command Line Interface (CLI), or an SNMP server.

Rugged Installation GuideProvides the steps to install and get started configuring the Makito X1 Rugged Encoder.
Release NotesLists fixes between versions, as well as known issues. Only available on the Haivision Support Portal.
Related Documents
Provide the steps to install the MB6 or MB21 Multichannel Chassis.
SRT Deployment GuideDescribes the SRT (Secure Reliable Transport) protocol and how it is configured and used between all supported Haivision devices.
Hardening Guide for Makito X Series

Describes how to install and configure Haivision’s Makito X Series encoders and decoders to meet current network interface security standards.

Makito X1 Rugged Encoder Datasheet

Includes an overview of Makito X1 Rugged Encoder features and licensing/ordering information. Available by request at

NOTE: See the Terms and Conditions on the InfoCenter for Warranty, EULA, and SLA information.
