Adding/Importing a Transmitter Configuration

Hub 360 allows you to create and import configurations of an existing transmitter, both transmitter and SIM configurations. This allows you to synchronize the configuration of the other transmitters paired to your organization.

Note

The same configuration file can only be applied to the same family of transmitters. For example:

  • AIR2x0: AIR220 and Air220-5G

  • PRO3x0: PRO340, PRO360-5G, and PRO380

A configuration may be created from either the Hub 360 or transmitter web UI:

Hub 360 UI

To create the configuration using the Hub 360 UI:

  1. Click Appliances in the sidebar.

  2. Find the transmitter whose configuration you wish to save.

  3. Click the AR_more_options icon > AR_copy Configuration > AR_export Save as Template or AR_sim Save SIM template

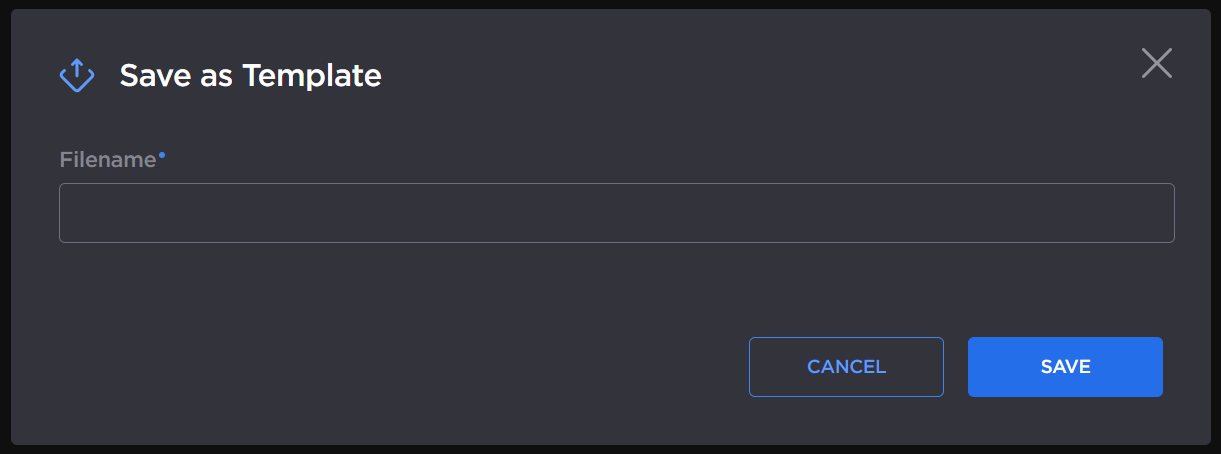

  4. Enter a name for the template and click the Save button.


Tip

You can rename the Template after it’s saved by clicking AR_more_options icon > AR_rename Rename on the Templates and Profiles screen.

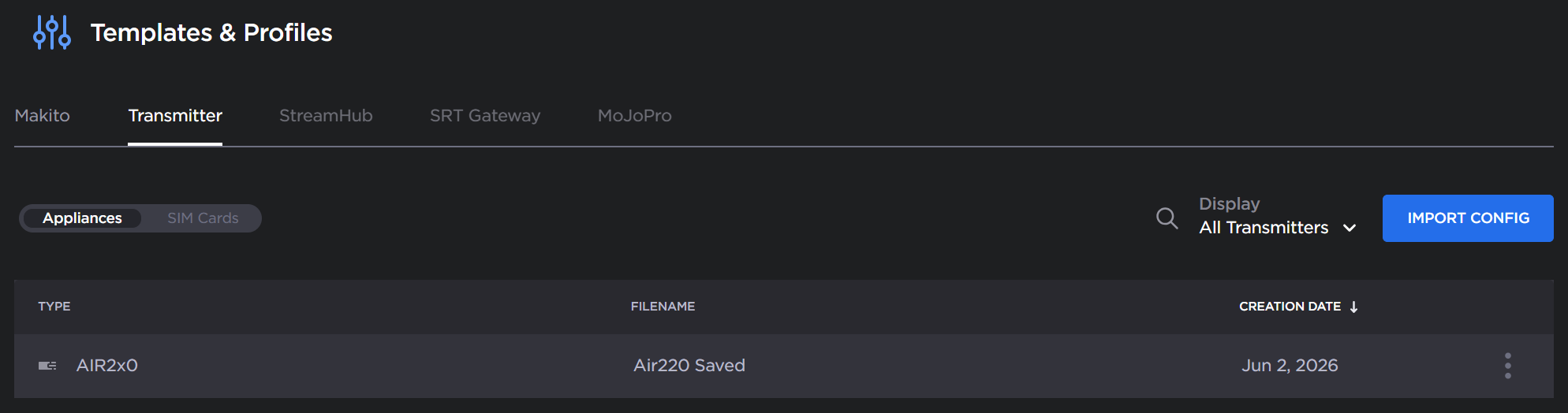

The template is saved on the Transmitter’s Templates & Profiles screen, and can now be applied to other transmitters of the same family:

Transmitter UI

To create the configuration using the transmitter UI:

  1. Sign in to the transmitter UI whose configuration you wish to import.

  2. For transmitter configuration:

    1. Click Settings in the sidebar.

    2. Click the Configuration tab.

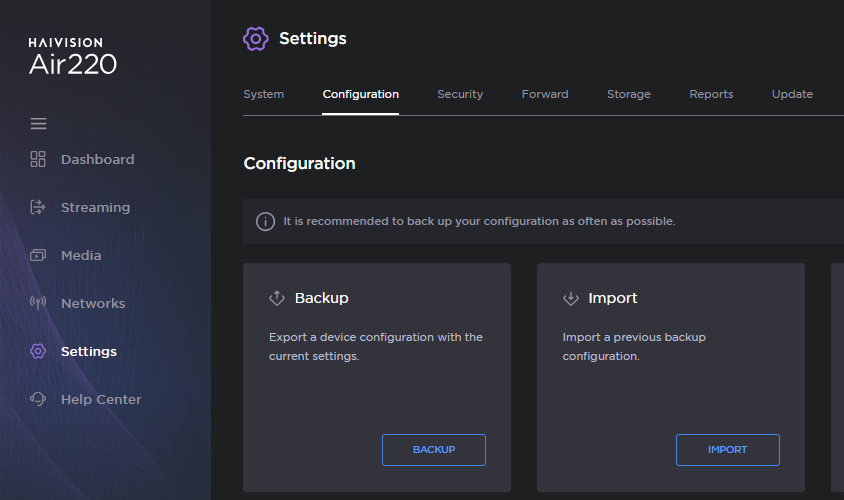

      Transmitters Backup

    3. Click the Backup button.

  3. For SIM configuration:

    1. Click Networks in the sidebar.

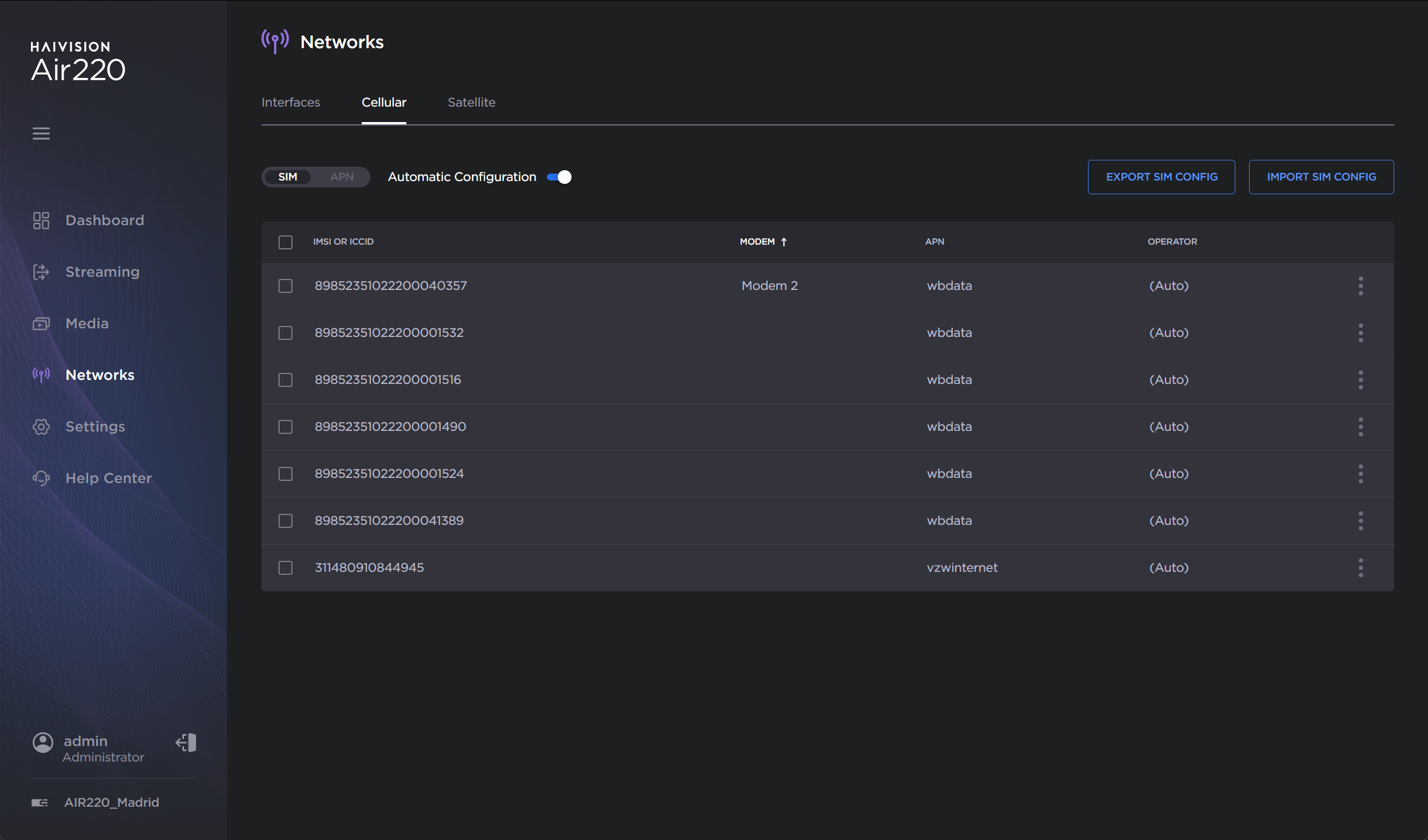

    2. Click the Export SIM Config button.

  4. The configuration file is downloaded by your browser.

Open Hub 360 in your browser:

  1. Sign in to Hub 360.

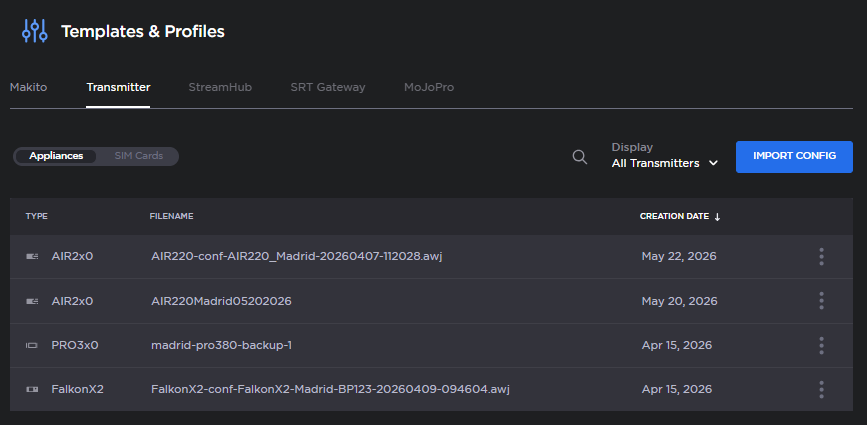

  2. Click Appliances > Templates & Profiles.

  3. Click the Transmitters tab.

    • If importing an appliance configuration, click the Appliances button, or

    • If importing a SIM template, click the SIM Cards button.

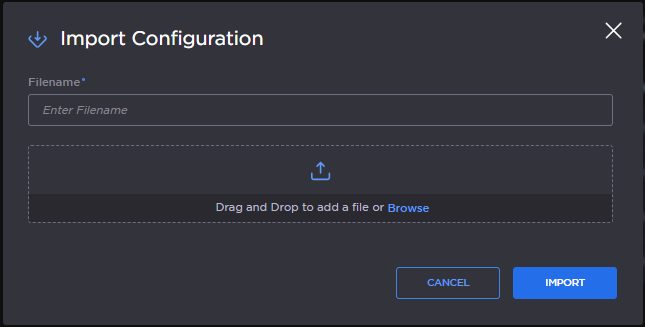

  1. Click the Import Config button and the Import Configuration dialog appears:


  1. Name your configuration, if desired, and drag and drop the configuration file you previously downloaded to the Import Configuration dialog.

Tip

You can rename the Template after it’s imported by clicking AR_more_options icon > AR_rename Rename on the Templates and Profiles screen. See Renaming and Deleting a Transmitter Configuration.

  1. Click the Import button.

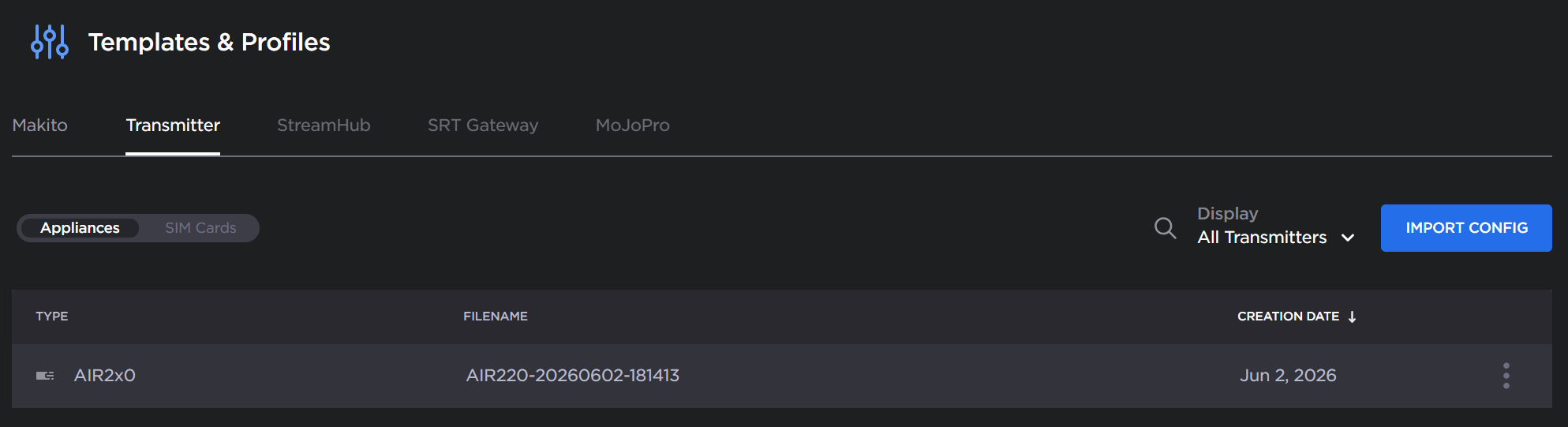

The new configuration is added to the Templates & Profiles screen, and can now be applied to other transmitters of the same family:
