Configuring a Broadcast Live Profile

To configure a broadcast Live Profile from the Unit Panel, or from the Web Interface, see the sections below.

Unit Panel

  1. From the Home menu, tap _avi_Unit_Settings.png > _avi_Unit_Play_Settings.png > _avi_Unit_Add.png .

  2. Tap the Profile Name field and enter a new profile name.

  3. Tap _avi_Unit_Checkmark.png to confirm the new profile name.

  4. Tap the Application field and and choose between Bcast (SRT) or Bcast (SST).

  5. Tap the End-to-End Latency field to adjust the latency.

  6. Tap _avi_Unit_Arrow_Down.png and tap the BGAN profile field to select a BGAN profile if required.

  7. Tap the Encoder Type field and choose between H.264/AVC and H.265/HEVC.

  8. (SST Live Profiles only) Tap the Bitrate Control field and choose between VBR and CBR.

  9. Tap the Capped Bitrate field to enter a new bitrate.

  10. In the Audio settings, tap the Channel Layout field and choose between: 1x Mono, 1x Stereo, 2x Mono, 2x Stereo, 4x Mono, 4x Stereo, 8x Mono, and No audio.

  11. Tap the Bitrate field to adjust bitrate.

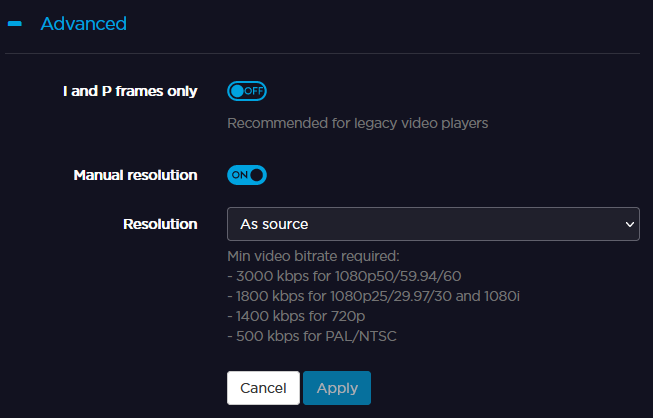

  12. Tap _avi_Unit_Arrow_Down.png and select ADVANCED +.

  13. Tap _avi_Unit_Slider_Off.png to enable I and P frames only.

  14. Tap _avi_Unit_Slider_Off.png to enable Manual Resolution.

  15. Tap the Resolution field to display the resolution list.

Note

Only downscaling or same resolution are supported.

  1. Select the resolution you want to apply.

  2. Tap _avi_Unit_Save.png to save the new Broadcast Live Profile settings.

Web Interface

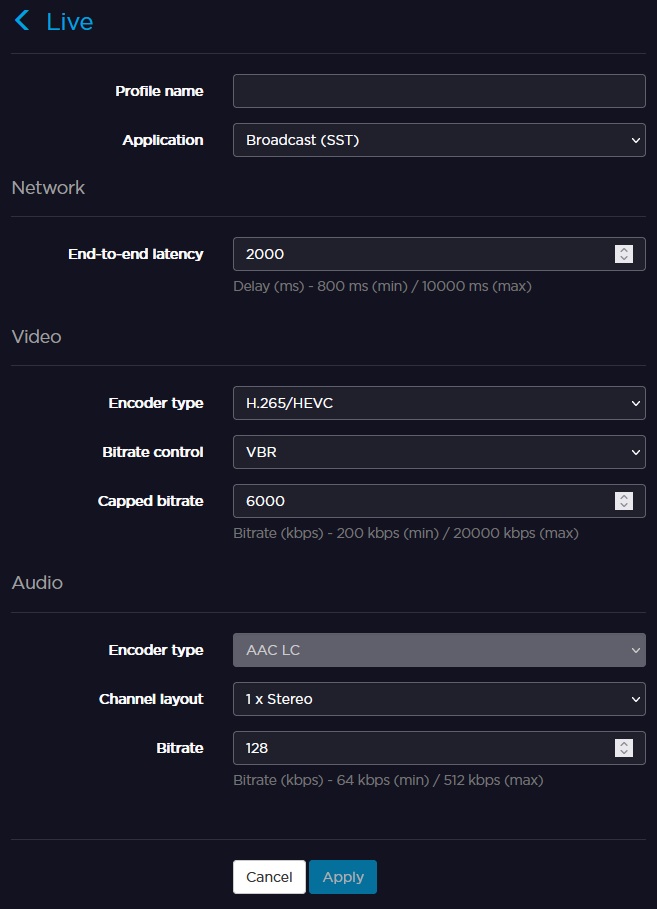

  1. Click Settings > Live.

  2. Click the _avi_Add_Button.png button.

  3. Enter a profile name in the Profile Name field.

  4. Fill in all parameters. For details on Broadcast Live Profile parameters, see Configuring Live Profiles.


  5. Click Apply.
