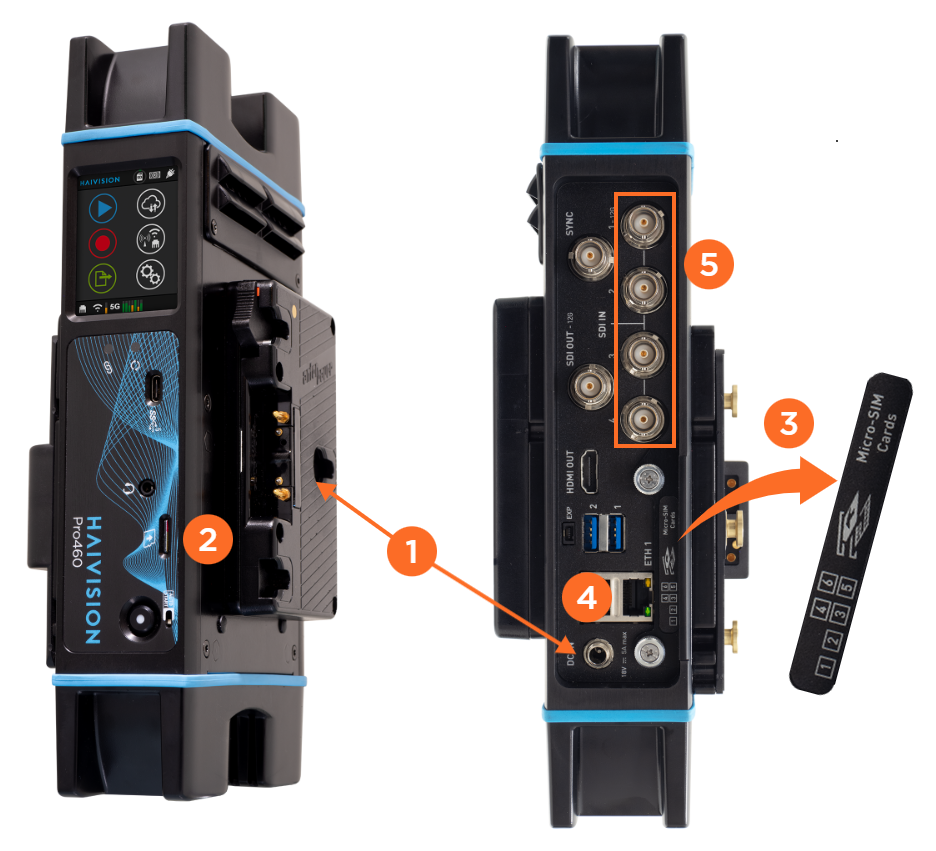

Installing the Unit

  1. Install the external battery onto the unit side or connect the AC/DC adapter and the power cable.

  2. Insert a microSD card (if not already installed). It is recommended to use FAT32 or exFAT formats and class 10 microSD card.

  3. Remove the SIM card cover and insert a SIM card into a slot according to indications written on the cover.

  4. For Ethernet transmission, connect the Ethernet cable to ETH1.

  5. Connect video input cable.
