CoT Relaying

From the Metadata Detail View, you can configure retransmission of COT metadata received over the UDP or Serial (Makito X4 Rugged only) interface. The metadata will be retransmitted as a CoT/UDP unicast or multicast stream so that multiple CoT listeners can access the source CoT data. You can retransmit up to eight (8) CoT/UDP messages.

To configure CoT Retransmission:

  1. From the Metadata List View, click the link for the CoT metadata source to retransmit. For details on setting up the metadata source, see (1.7) Setting Up Streams.

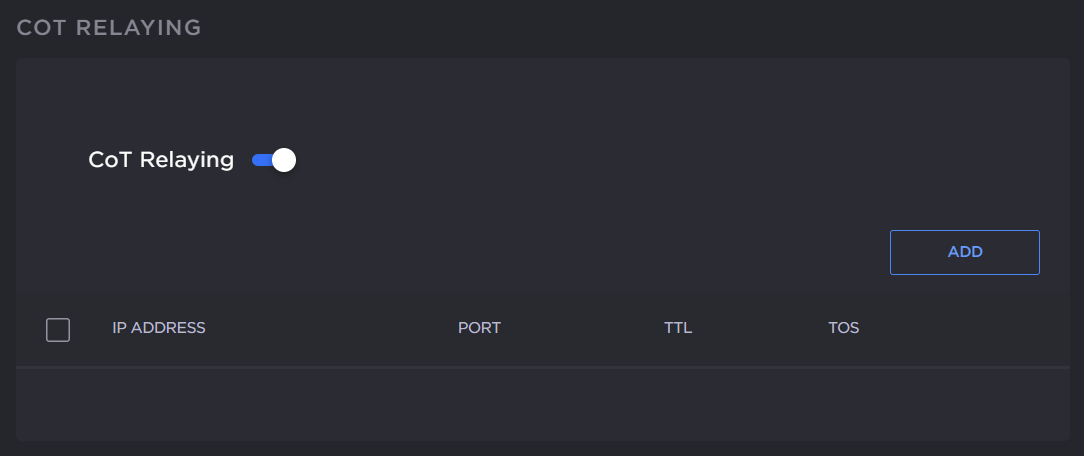

  2. On the Metadata Detail View, if necessary, scroll down the page and toggle the CoT Relaying button to On.

    MX4E_CoT Relay.png

  3. To add a CoT retransmission destination, click Add.

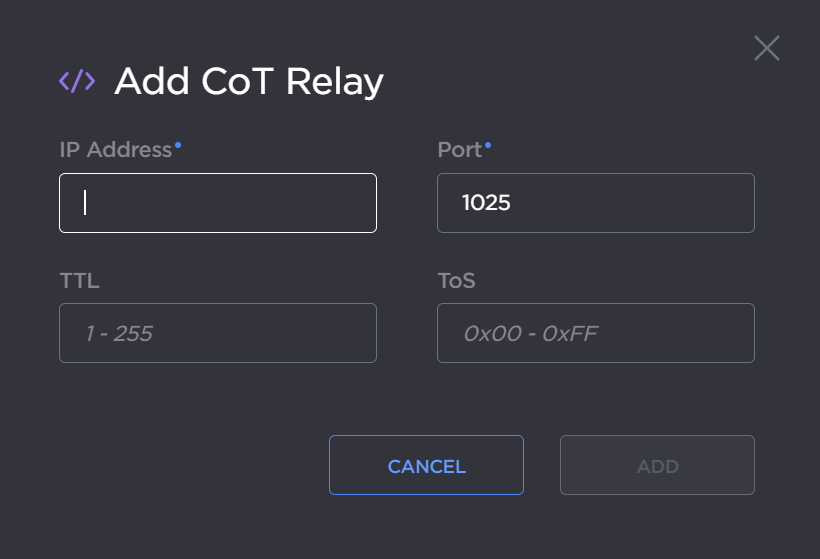

  4. On the Add CoT Relay dialog, enter the IP Address and Port for the destination. Adjust the TTL and TOS values if required.

    MX4E_CoT Relay Add.png

  5. Click Add.

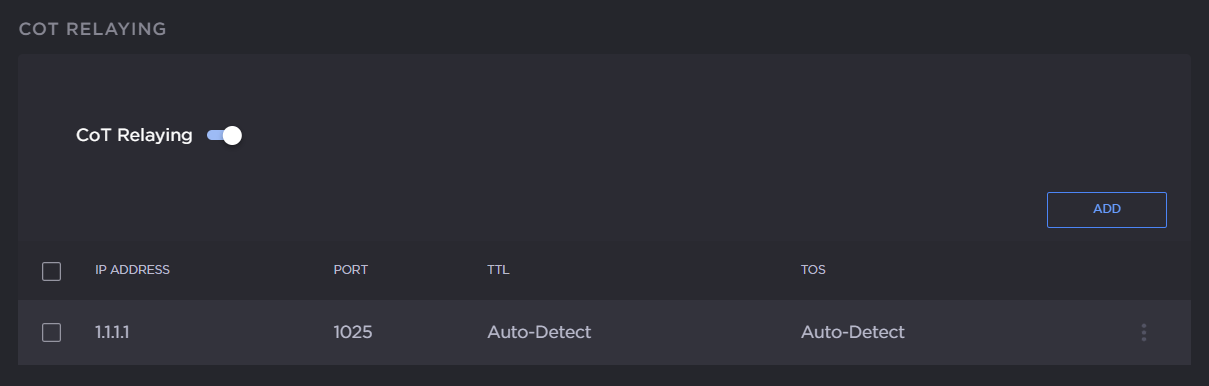

    The stream is added to the list.

    MX4E_MFX_ CoT Relay list.png

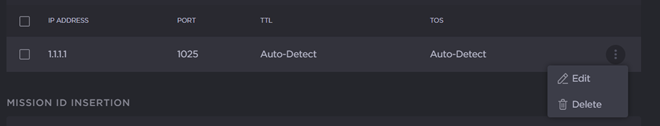

  6. To edit a CoT relay destination, click the vertical ellipsis menu on the relay stream and select Edit.

    MFX_MX4E_CoT Relay edit__delete.png

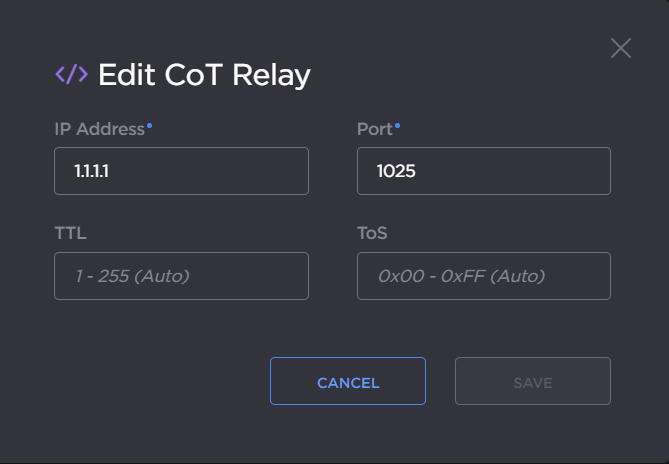

  7. The Edit CoT Relay panel opens. From here, edit the available fields as necessary.

    mx4e_Edit CoT Relay.png

  8. To delete a CoT relay destination, check the check-box on the relay stream panel and click Delete, or select Delete from the vertical ellipsis menu.
