Setup - Three-Board Kit (Haivision P/N 084M090-500G)

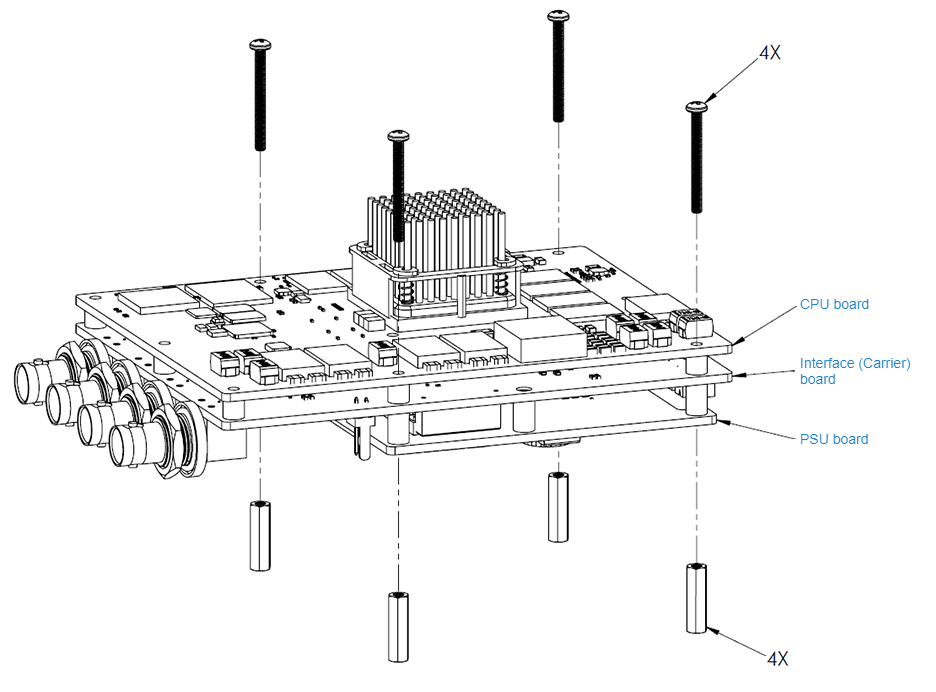

Connect the CPU, Interface (Carrier) and PSU boards, using four (4) screws and standoffs (provided).
Connect the encoder's Network 1 port (Interface (Carrier) board J7) to the IP network (10/100/1000 network switch, with or without DHCP) using the Ethernet cable (p/n #084H074-614G). (Network 2 is reserved for future use.) See Ethernet Cable.
Note

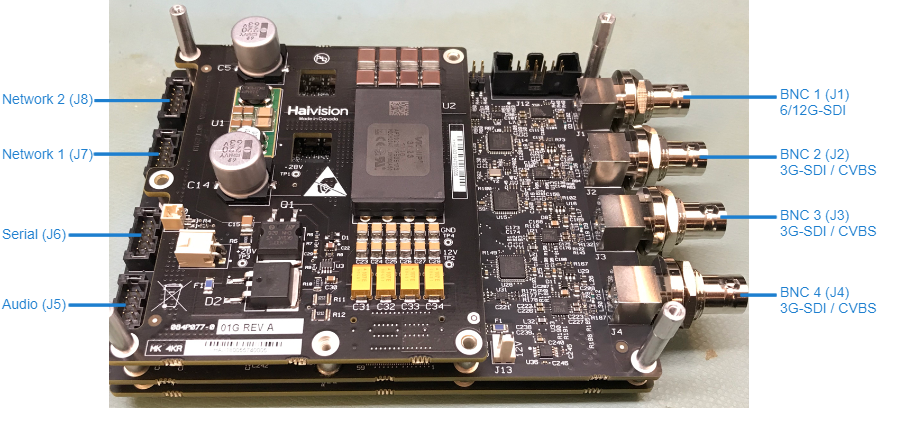

The following picture shows the bottom side of the interface (Carrier) board with the PSU attached.
Connect the encoder’s Serial port (Interface (Carrier) board J6) to the metadata source or to the serial port of a computer using the serial breakout cable(p/n #084H074-612G). See Serial Cable.
You also need to connect the serial breakout cable to access the Reset button.Note
Analog audio (Interface (Carrier) board J5) is reserved for future use.
Connect one or more of the encoder's Video ports to your video source(s).
Note
Only BNC1 can support input up to 6/12G-SDI. All the other inputs support up to 3G-SDI.
The CVBS ports are used to support legacy Analog NTSC/PAL/PAL-M cameras.
- Connect the heat sink. See Attaching and Detaching the Heat Sink.
- Connect the LED cable assembly (Haivision p/n #084H082-602G, included in the kit) to PSU J10. See Power Cables - Three-Board Kit.

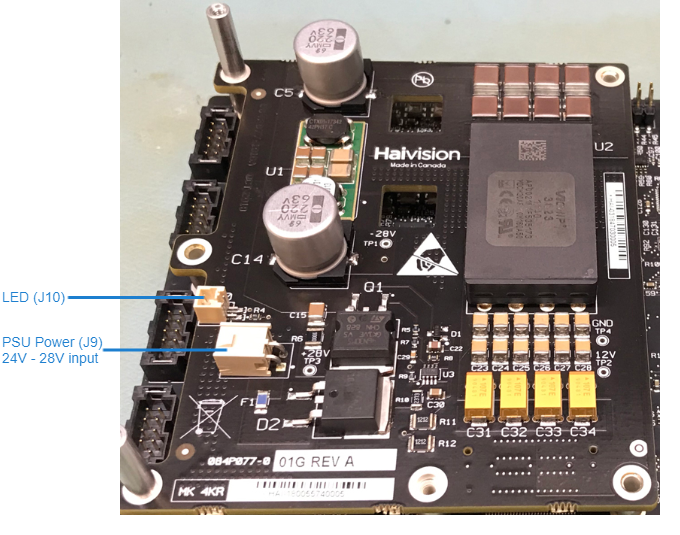

Connect the +28VDC power cable assembly (Haivision p/n #084H074-610G) to PSU J9 (referring to the following closeup).
OR
Connect the 24VDC Haivision power supply to PSU J9. (Haivision p/n 750-014-01: Makito X4 Rugged Appliance bench power supply +24VDC / 40 W with mating power connector from 90-240 VAC)
Caution
Do not use J13 when attaching the PSU board!
Also, do not attempt to power the 3-board assembly using a +12VDC supply.
- Apply power.
The encoder will begin its booting sequence. If the serial port is connected to a PC, you can watch the boot sequence.
Note

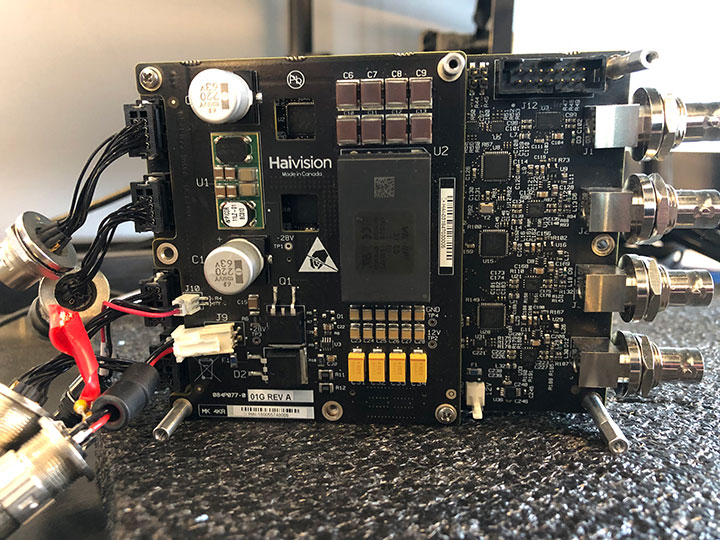

The following picture shows a sample integrator's board fully set up.
