Ethernet Cable
The Makito X4 encoder allows for connectivity with two 10/100/1000 Gigabit Ethernet ports over CAT-5 unshielded twisted pair per IEEE 802.3ab. The naming convention is per IEEE STD 802.3. These ports are designated as Network 1 and Network 2.
(Haivision p/n #084H074-614G) This cable is used for both Assembly Kit Options. Use this cable to connect the encoder's Network 1 port (Interface (Carrier) board J7) to the IP network.
Network 2 (Interface (Carrier) board J8) is reserved for future use.
Ethernet Connector

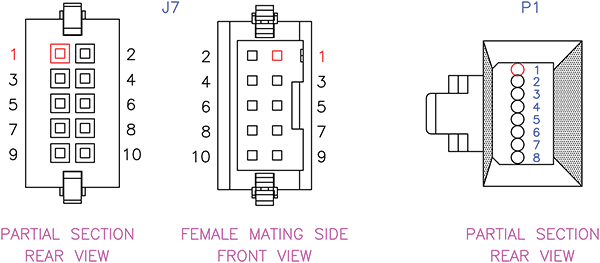

Following is the breakout cable pinout for each Ethernet port.
Ethernet Connector (J7) | ||
|---|---|---|
On Unit | Mating Connector | |
Manufacturer | SAMTEC | SAMTEC |
Connector Type | Network Connector | Network Connector |
Part Number | T2M-105-01-L-D-TH-WT | ISD2-05-D-M |
Ethernet Connector (J7) Pinout | |
|---|---|
Contact # | Description |
1 | ETH A+ |
2 | ETH A- |
3 | ETH B+ |
4 | ETH B- |
5 | ETH C- |
6 | ETH C+ |
7 | ETH D- |
8 | ETH D+ |
| 9 | N/C |
| 10 | N/C |

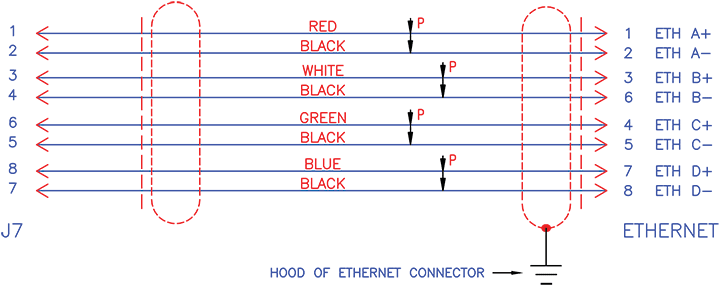

Ethernet Wiring Diagram
