Power Cables - Three-Board Kit
The kit includes three cards: CPU, Interface (carrier), and PSU (power conversion card). The power cable (options shown below) connects to J9 (on the PSU board) and supplies +16-35V DC power compliant to MIL-STD-1275E (28V nominal).
Caution
Do not use J13 when attaching the PSU board!
Two PSU options are available for the three-board kit: customers can either provide their own power supply or use a Haivision power supply:
Cable for Customer-Provided Power Supply
28 V DC, mil standard 1275E, minimum OSU supply 25W DC.
Haivision p/n #084H074-610G (Customer provides power supply)
Connect the 28V power cable assembly to PSU J9.
Power Connector
Power Connector | ||
|---|---|---|
On Unit | Mating Connector | |
Manufacturer | SAMTEC | SAMTEC |
Connector Type | Power In Connector | Power In Connector |
Part Number | IPL1-102-01-L-S-RA-K | IPD1-02-S-K |
Power Connector Pinout | ||
|---|---|---|
Contact # | Description | Wire Color |
1 | +28VDC | Red |
2 | POWER GND | Black |

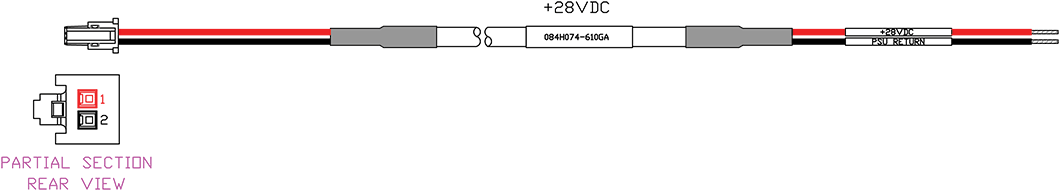

28V Power Cable Wiring Diagram
Cable for Haivision Power Supply
p/n #750-014-014G, Makito X4 Rugged Appliance bench power supply +24 VDC / 40 W with mating power connector from 90-240 VAC.
Haivision p/n #084H074-611G (Haivision Power Supply)
Connect 24V Haivision power supply to PSU J9.

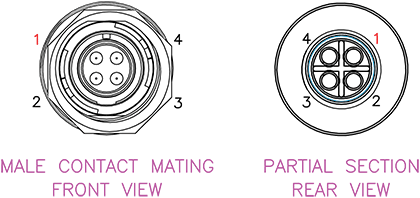

Power Connector

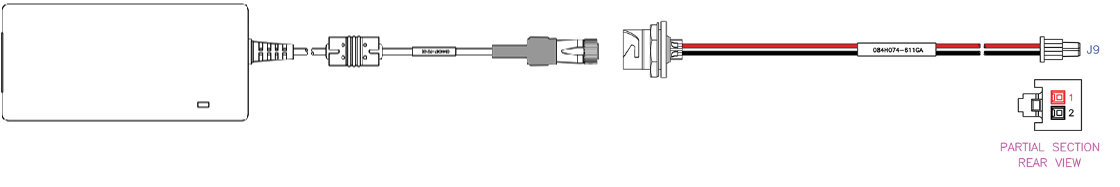

24V Power Supply Wiring Diagram
