To configure the network:
-
In the side menu under Administration, click System Settings.
-
Click Network in the navigation toolbar.
The available network configuration settings are listed in the view pane along with Interfaces and Static Routes. -

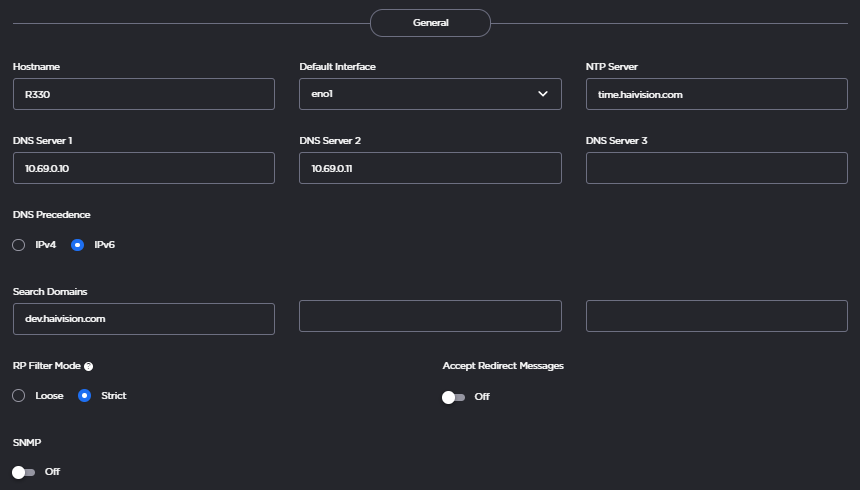

Fill in the General section as appropriate. See (3.8.1) Network Settings for more information.
-
To enable SNMP alerts toggle the SNMP button to On and enter the SNMP-specific fields.
-
-
Under Interfaces, select whether the interface uses IPv4 and/or IPv6 protocols by toggling the On/Off switch next to each.

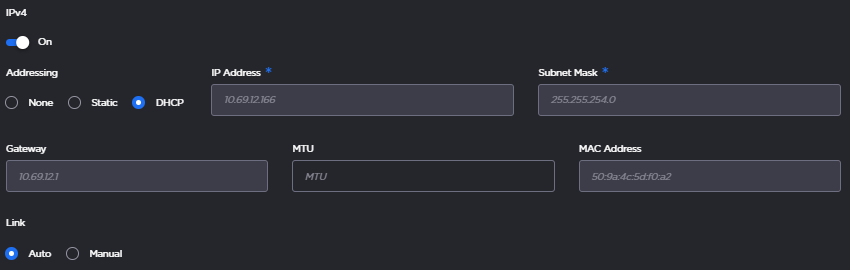

IPv4 (Click here to expand...)

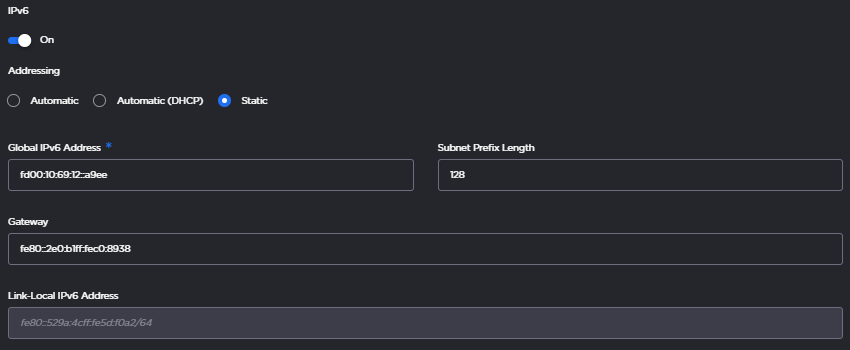

IPv6 (Click here to expand...)
-
To configure multiple network interfaces, after you complete eth0, select the next interface (for example, eth1) and repeat the configuration.
Note
Depending upon your device, the network interface prefixes may differ.
-
To add a bond interface, see (3.8.1) Creating a Bonded Interface for more information.
-
To add a static route, under Static Routes click the Add button and provide the necessary data in the Add Static Route dialog.

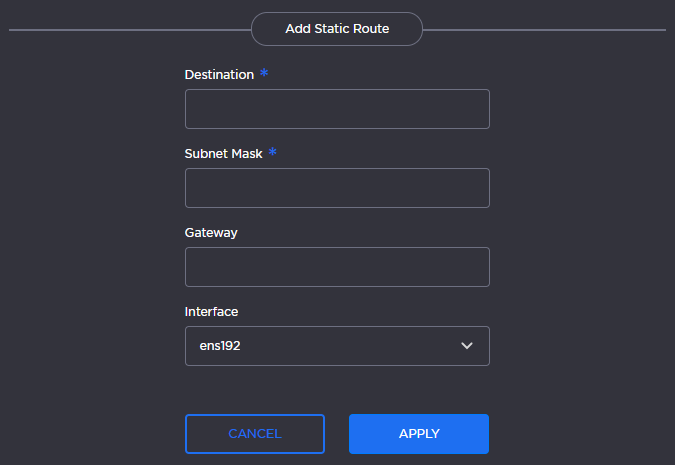

Add Static Route Dialog -
Click Apply. The route is added to the Static Routes listing on the Network Configuration screen.
-
Click the Save Settings button.
-
Click the Reboot button to have your network configuration changes take effect.
