Interfaces

Connector type: BNC connector
Impedance: 75Ω
Complies with SMPTE 292M, SMPTE424M, SMPTE2081, and SMPTE2082 level A and level B-DS (limited to one SDI stream for level B-DS)
Supported Embedded Audio at 48kHz

Connector type: BNC connector
Impedance: 75Ω
Complies with SMPTE 292M and SMPTE 424M level A and level B-DS (limited to one SDI stream for level B-DS)
Supported Embedded Audio at 48kHz

Connector type: Type A
Complies with HDMI 1.4
Fully shielded HDMI cable is mandatory

Connector type: BNC connector
Impedance: 75Ω
Complies with Black Burst and Tri-level-sync analog signals
Complies with SMPTE 240M, SMPTE 274M, SMPTE 296M, SMPTE RP211

Connector type: 4pins (TRRS) 3.5 mm Audio Jack
(Signal complies with Apple and Samsung headsets)

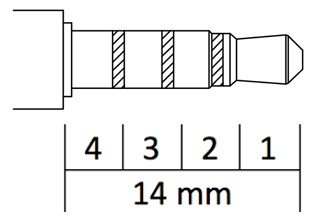

Pins (Mating plugs)
1. Tip (Left HP)
2. Ring1 (Right HP)
3. Ring2 (Ground)
4. Sleeve (Microphone)

Headphone Dynamic Range (20-kHz Filter): 100 dB
Headphone THD+N: -70 dB max
Headphone Load Impedance: 16Ω or higher
Headphone Output Power: 2 x 55mW max (16Ω)
Headphone Full Scale output voltage: 0.65V_RMS
Microphone Bias : 2.5V
Microphone Maximum Level : 0.5V_RMS

Two Ethernet ports
10/100/1000 Base-T
RJ45 connector
Green LED indicates link
Orange LED indicated speed (on: 1000BT, off: 10/100BT)

Micro SD slot, class 10 recommended (FAT32, exFAT)

Two USB 3.0 Type A connectors
One USB 3.0 Type C connector

Input type: Lock Jack 5.5mm ⌀
Automatic under-voltage protection at 12.5 Volts
Automatic over-voltage protection at 22 Volts

Manufacturer: EDAC POWER ELEC.
Model: EA10951E-180
DC Output: 18V / 5A max
AC Input: 100-240V-2.5A, 50-60Hz
