Pro4/Rack4

Ethernet Connection

Note

Default credentials are provided by the Important Notice Card delivered with the unit.

  1. From the unit panel Home menu, tap  Networks . The screen displays the IP address assigned to the unit (by default in DHCP mode).

  2. Launch a web browser on your computer and enter the unit IP address and append ":8888" to it. Example: 10.50.1.139:8888

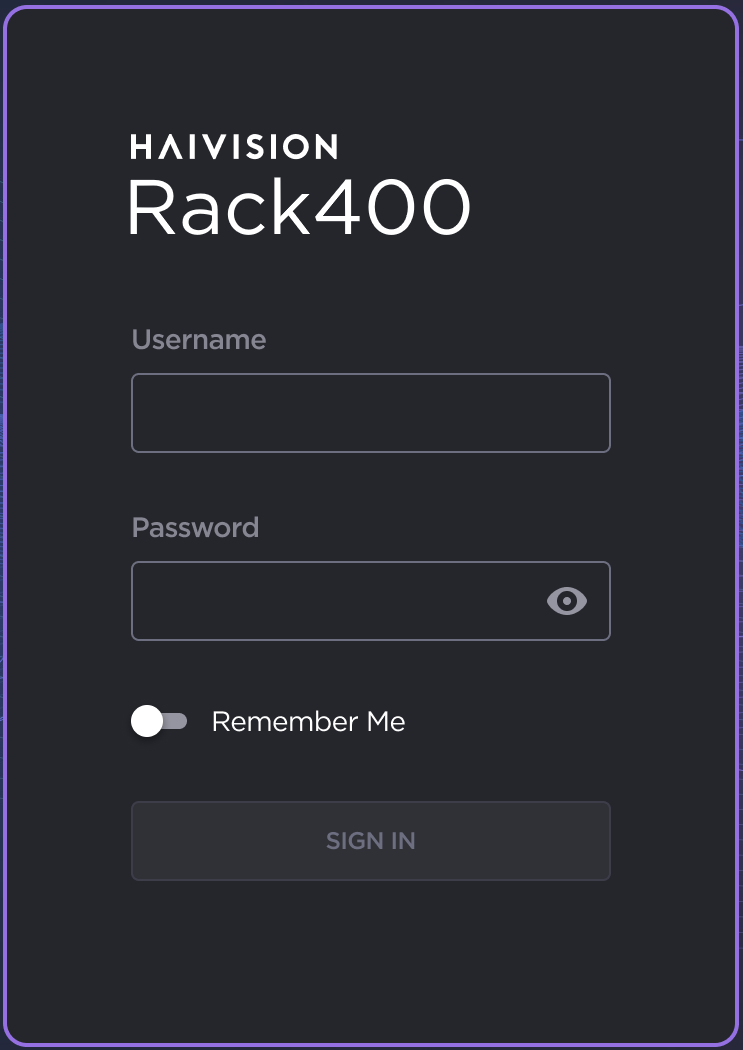

    The sign-in screen opens:

Rack 400 Sign In Screen
Rack 400 Sign In Screen
  1. Enter the username and password.

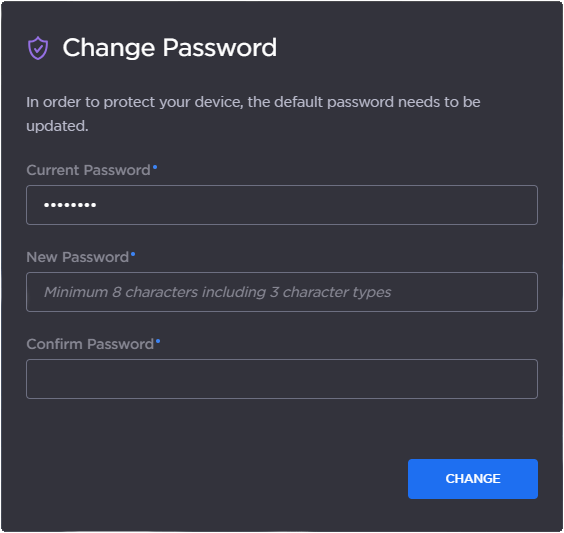

  2. If this is your first sign-in to the transmitter, you are prompted to change the default password. Enter a new password following the recommendations in the New Password field and click the Change button.

    Change Password
    Change Password

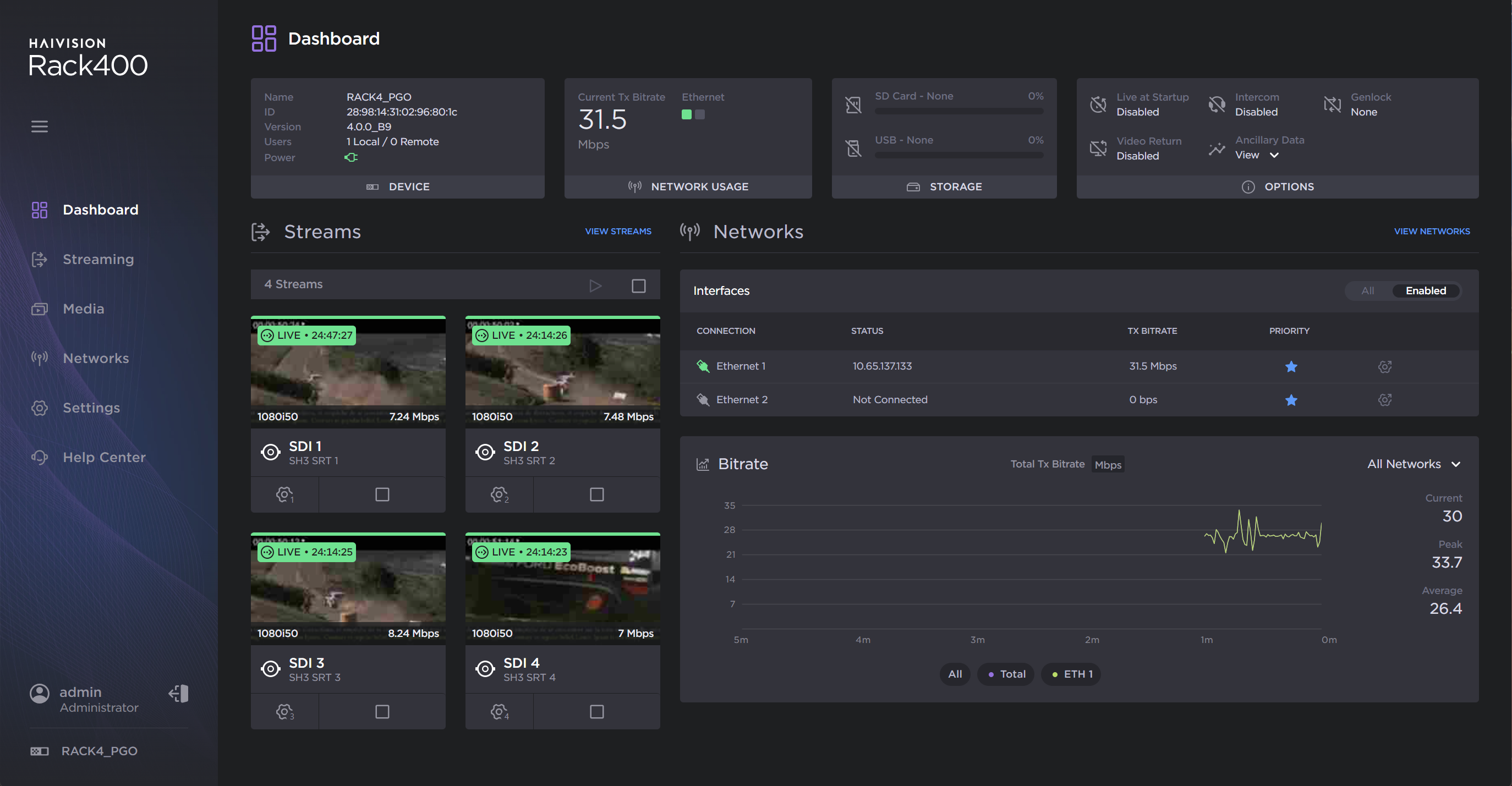

The web interface opens:
