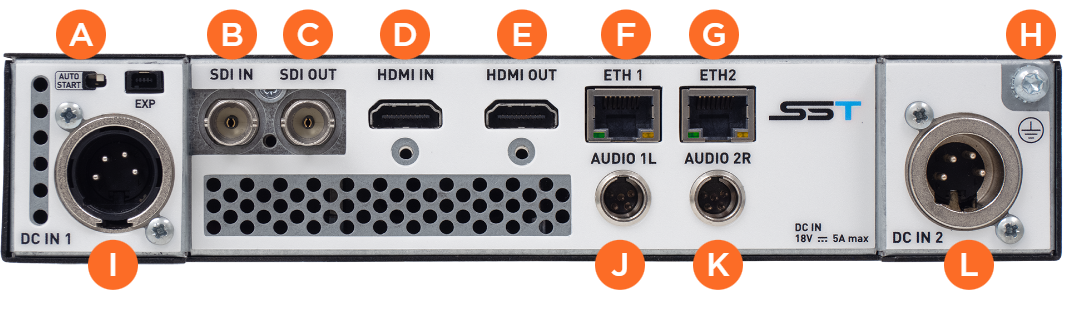

Auto-start switch |
|
Ethernet 2 |
|
|
3G-SDI input |
|
M4 screw for protective earth terminal |
|
|
3G-SDI output |
|
DC in 1 (18-V nominal) |
|
|
HDMI 1.4 input |
|
Analog audio input/output (left, channel 1) |
|
|
HDMI 1.4 output |
|
Analog audio input/output (right, channel 2) |
|
|
Ethernet 1 |
|
DC in 2 (18-V nominal) |
