Starting a Record

Note

Ensure that a SD card is inserted before starting a record. This SD card must not be in read-only (or locked) mode.

You may start a record via the unit panel or the web interface.

Unit Panel

To start a record:

1. From the Home menu, tap . The video preview appears on screen and the selected record profile is displayed.
   When tapping or , the Record menu displays additional information.



   Selected Record Profile
   Auto-record (OFF/ON) Toggle Switch
   Selected Destination Profile

2. To select another Record profile:

   1. Tap the  field.

   2. Tap another Record profile.

3. To modify the Auto-forward mode:

   1. Tap the toggle button.

4. To select another Destination profile:

   1. Tap the field.

   2. Tap another Destination profile.

5. Tap to start the Record. The video preview appears on the screen:



   Audio bars indicating audio levels

   Record duration

6. Tap to display more information about the record action.



   Remaining recording time possible on SD card
   Space used on SD
   Source Standard
   Record Duration

   During a Record and simultaneous Forward, another screen appears when you tap the unit panel:



   Network Bitrate
   Amount and percentage of data already forwarded (if option enabled)
   Record Duration

To stop the Record:

1. Tap .

2. Tap > Stop Record.

To stop the Forward:

1. Tap .

2. Tap > Stop Forward.

Web Interface

To start the Record:

1. On the Dashboard, in the Streams section, click the icon to check that the unit settings are configured and selected as required:

Note

If you enable the Auto-forward option, the video file is automatically forwarded during the record.

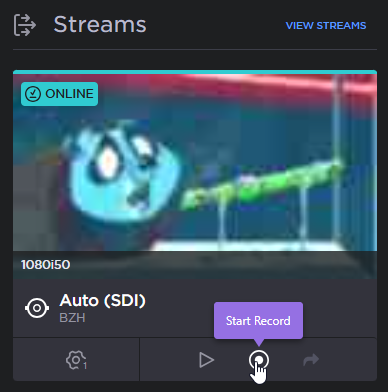

2. Click the icon to start the Record.



To stop the Record:

1. Click the icon > Stop.

To stop the Forward:

1. Click the icon > Stop.
