This section describes how to modify live capture settings for Play Pro when signed in to a Haivision Media Platform (HMP) system.
Note
This topic contains references to HMP live capture and SRT settings.
-
For more information on HMP settings, please refer to the HMP user documentation.
-
For more information on SRT concepts, including SRT modes, please refer to the SRT Deployment Guide.
To modify HMP live capture settings:
-

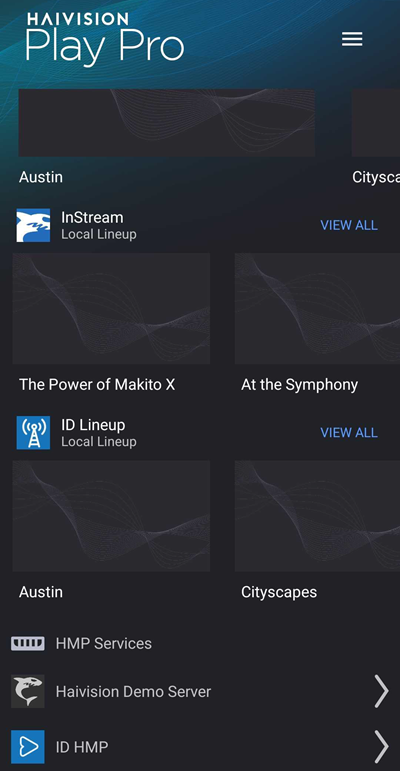

Access an HMP from the Streams screen.
-

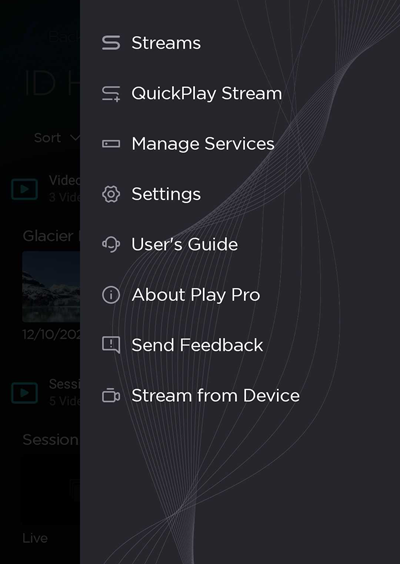

Tap the
-
Select
-

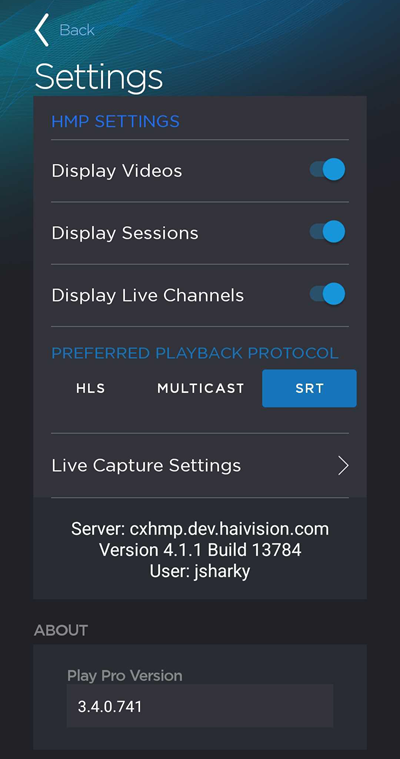

Scroll down below the Preferred Playback Protocol section and tap Live Capture Settings.
-

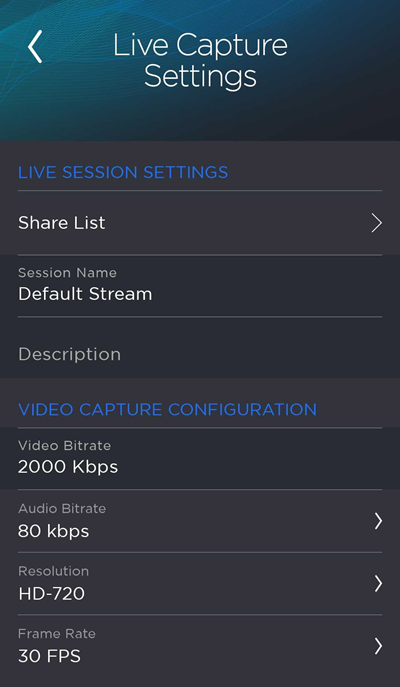

Configure live capture settings as needed:
|
Setting |
Description |
|---|---|
|
Live Session Settings |
|
|
Share List |
Select HMP users and groups to share live content with. |
|
Session Name |
The name of the created HMP session. |
|
Description |
A brief description that is displayed with the session in HMP. |
|
Video Capture Configuration |
|
|
Video Bitrate |
Enter a value from 200 to 8,000 Kbps. |
|
Audio Bitrate |
Select a value from 64 to 256 Kbps. |
|
Resolution |
Select a video resolution. Values include SD, HD-720, HD-1080, and UHD. |
|
Frame Rate |
Select a frame rate from 15 to 60 FPS. For UHD, select a frame rate from 15 to 30 FPS. |
|
SRT Settings |
|
|
SRT Mode |
Caller, Listener, or Rendezvous. |
|
Port |
Enter a value from 1 to 65535. |
|
Local Port |
(Caller and Rendezvous) Enter a value from 0 to 65535. A value of 0 will auto-assign the port. |
|
Latency |
Enter a latency value from 20 to 8000. |
|
Encryption |
Toggle on to encrypt HMP streams. If enabled, a random passphrase is generated. |
