From the Video Encoders pages, you can configure four or eight (Makito X4R only) independent H.264 video encoders to apply to streams. You can start and stop each video encoder, as well as display statistics for the encoder.
With the Makito X HEVC, you can also configure two (additional) HEVC encoders. The Makito X HEVC supports concurrent AVC/H.264 and HEVC/H.265 video encoding.
Video Encoders List View
To open the Video Encoders List View:

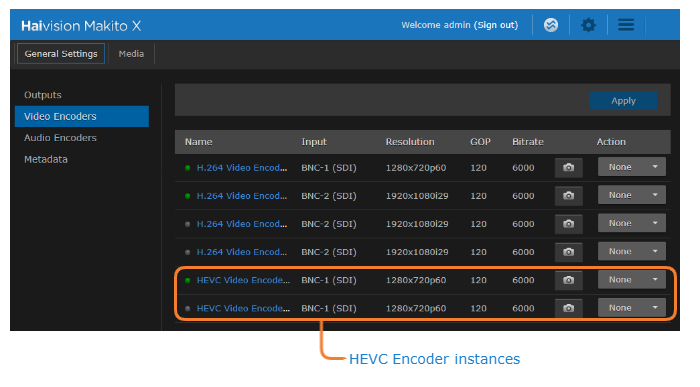

Click the Streaming icon on the toolbar. On the Streaming page, click General Settings on the navigation bar and Video Encoders on the sidebar. The Video Encoders List View opens. On the Makito X HEVC, the List View includes two HEVC encoder instances, as shown in the following example:
The Video Encoders List View displays the status LED, Name, Input format, Resolution, GOP Size, and Bitrate for each video encoder. It also provides an option for you to take a snapshot of an input and either start or stop the encoder.
To view details or modify the video settings for an encoder, click a link in the table to open the Video Encoder Detail View.
To take a snapshot of an encoder’s input, click the Camera icon

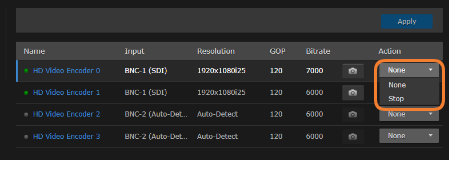

To change the status for an encoder, click the drop-down list under Action and select either Start or Stop (as applicable).
