Setting Up ST 2110 Inputs

From the Input Essence Detail View, you can create and configure ST 2110 media essence inputs. For each input, you need to select the Media Type – either video, audio or ancillary data – as well as the Input number (1...4). The encoder supports running four (4) inputs of each Media Type at the same time.

To configure Input parameters:

  1. From the Inputs List View, click the Settings icon AR_settings.png on an existing input, or click the Add Input button to add an input.
    The Input Essence Detail View opens. By default, the Media Type is Video.

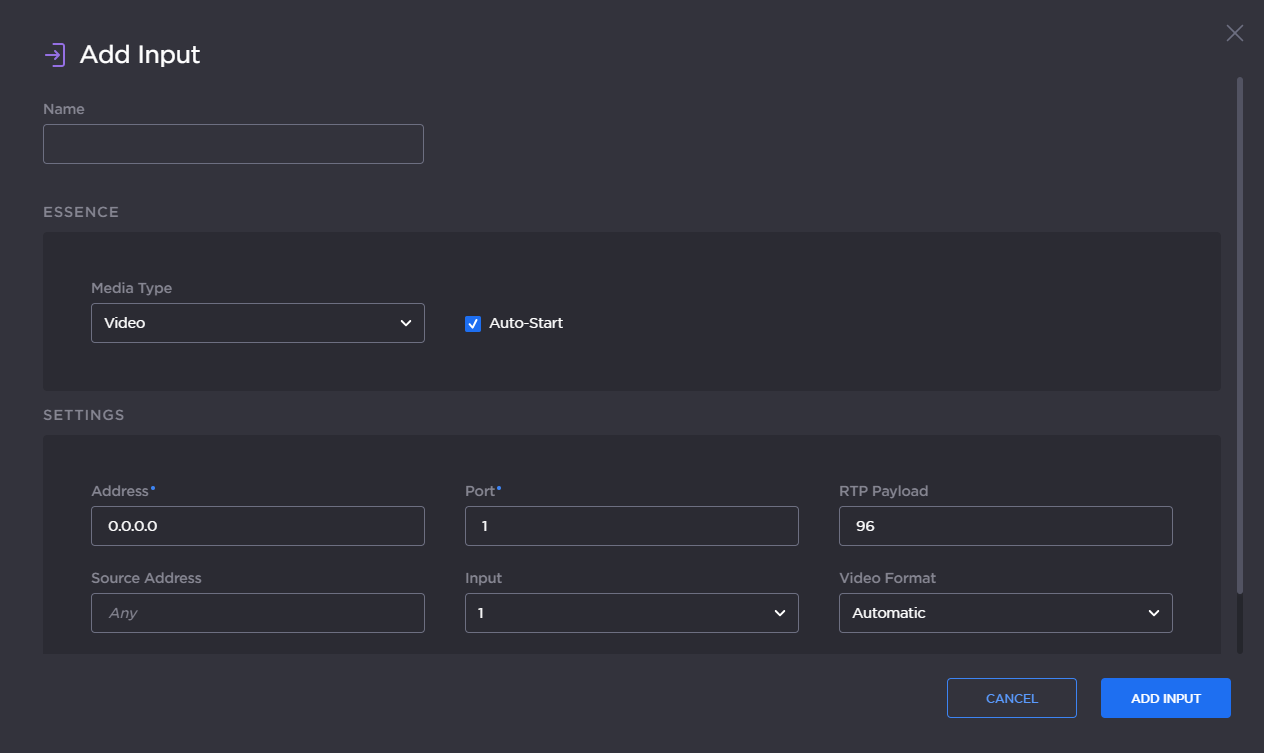

    MX4E_Input Video.png

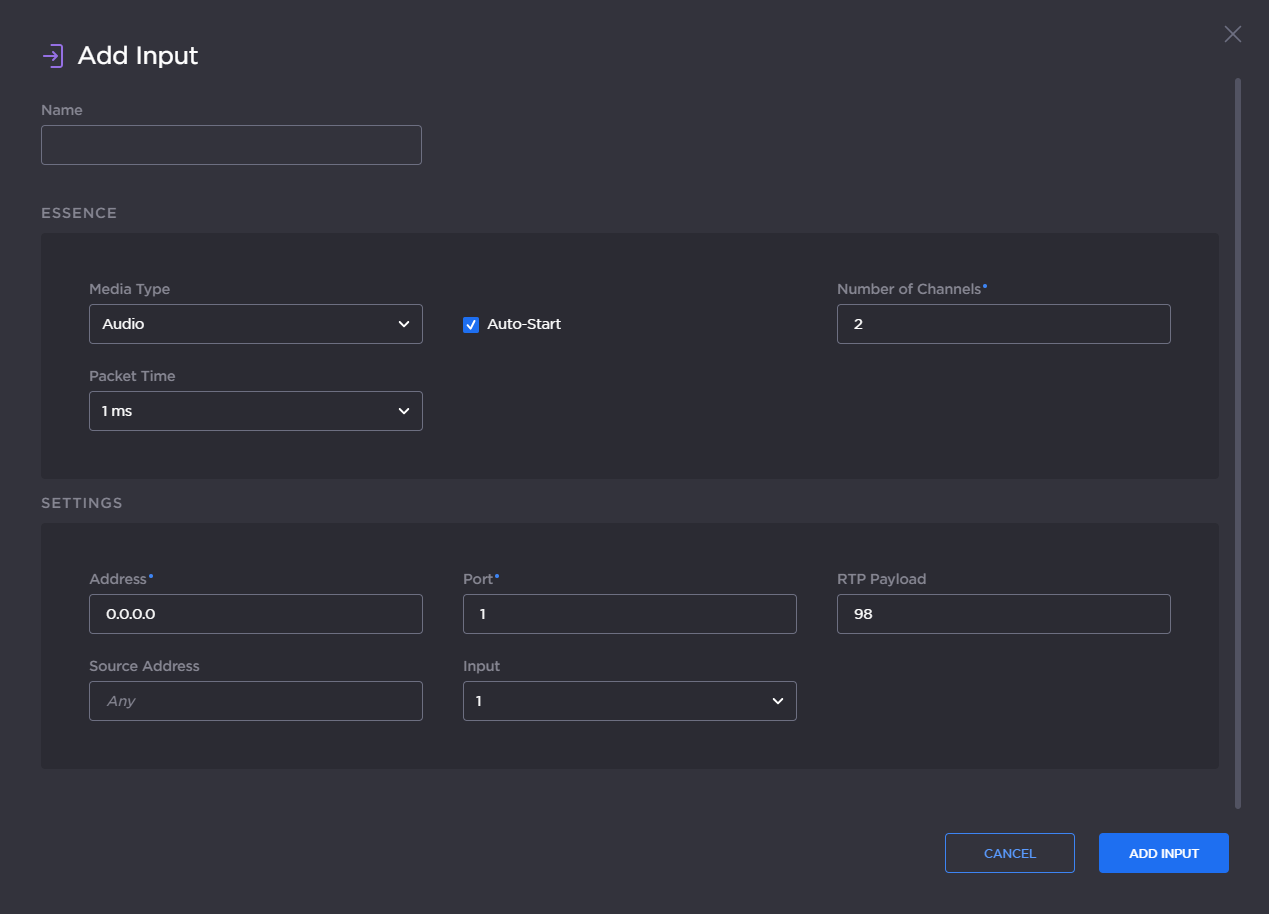

  2. To create an audio essence, select Audio for the Media Type.

    MX4E_Input Audio.png

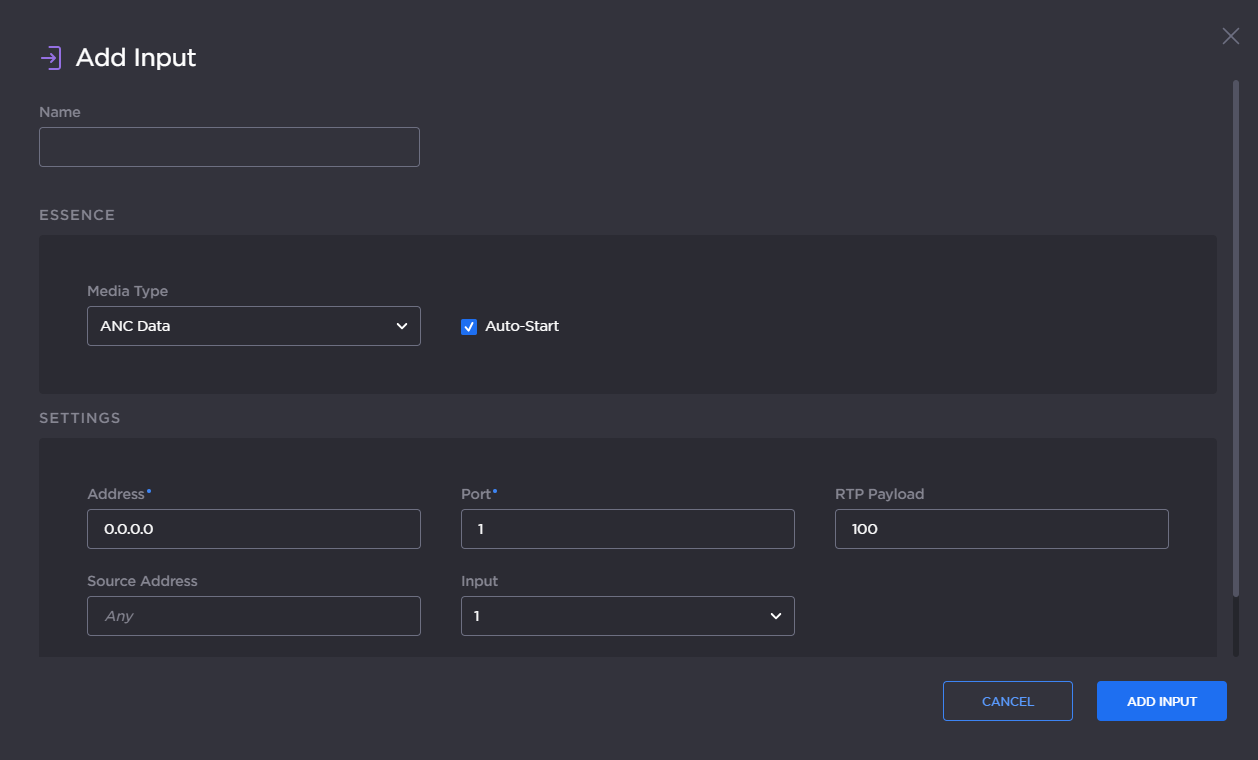

  3. To create an ancillary data essence  (such as subtitling or closed captioning), select ANC Data for the Media Type.

    MX4E_Input ANC Data.png

  4. Fill in the IP Address and UDP Port of the media essence, RTP Payload, and (optional) Source Address. See ST 2110 Input Settings.

  5. Select the Input number for the essence (1...4). Only one essence of a given media type can be started using the same input.

  6. Video Essences: Select the Video Format.

  7. Audio Essences: Enter the Number of Channels and select the Packet Time.

  8. Click Add Input to apply your changes and start the input.

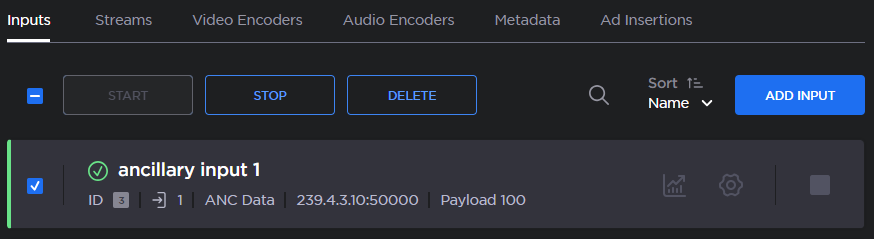

  9. To start or stop the input, check the checkbox of the selected input and click Start or Stop, or click the Start/Stop icon AR_play_filled.png / AR_stop_filled.png (as applicable).

    MX4E_Select Input.png

  10. To view or reset input statistics, click the Statistics icon AR_stats_2.png . For details, see ST 2110 Input Statistics .
